9-3

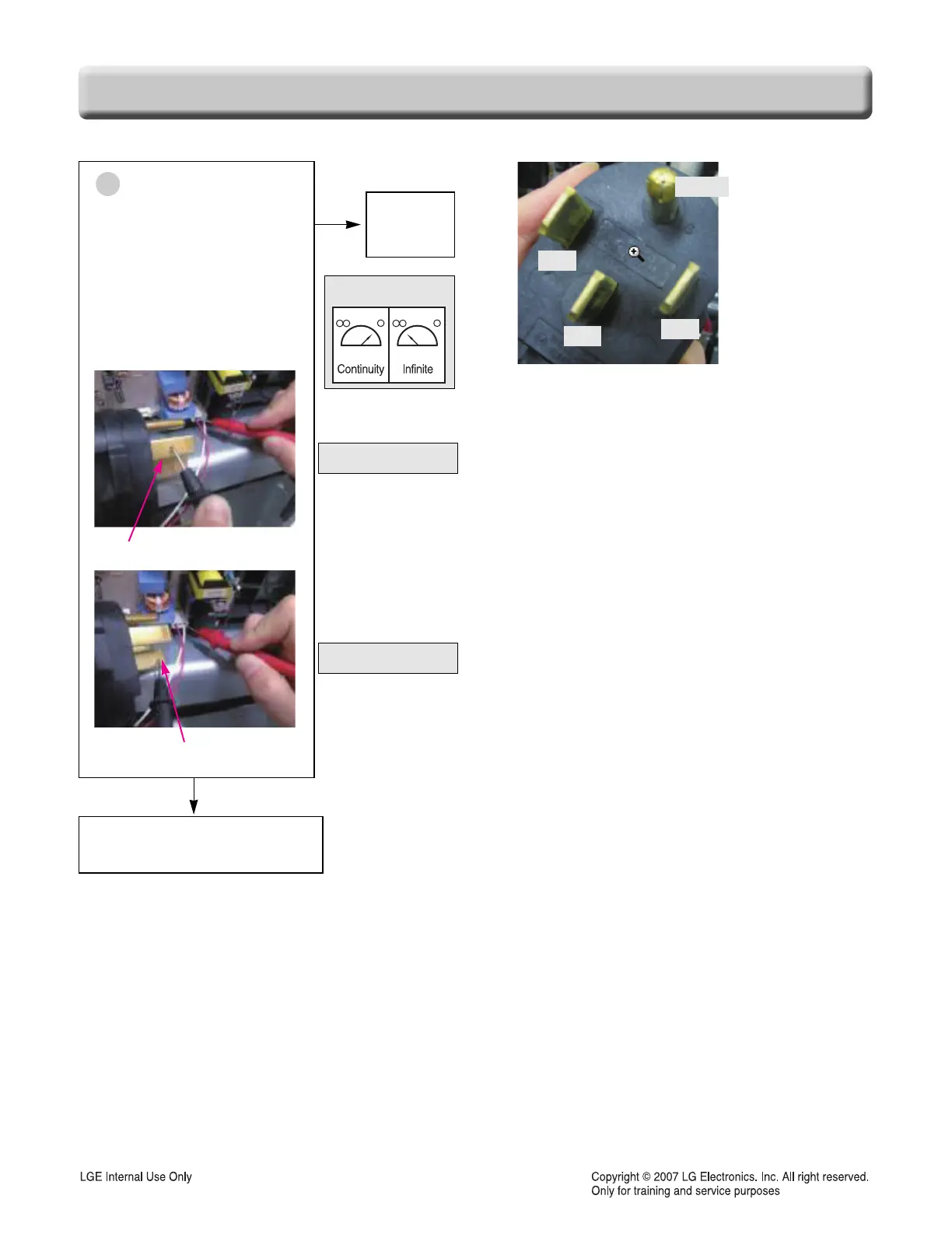

CHECKING FLOW CHART BY FAILURE
Is the electric wiring normal?
Measure the resistance Power
cord and CN01’s connection
Normal : continuity
Abnormal: infinite
- Code L1 to Pin1 of CN01(RD)
- Code N to Pin3 of CN01(WH)
Yes
No
Replace the
defective
harness
L1
L1
RD color is L1.
White color is N.
L2
GND
N
N
4
Normal Abnormal
Replace the Main PCB
