Liebert AC4 User Manual

Log In and Choose Setup System
• From the Main Menu, use the arrows to choose System and
Control, then press Enter (see Login on page41 for help).
• Enter your password at the Login screen.
• From the System and Control Menu, use the arrows to choose
Setup System, then press Enter.
Select Setup Zones

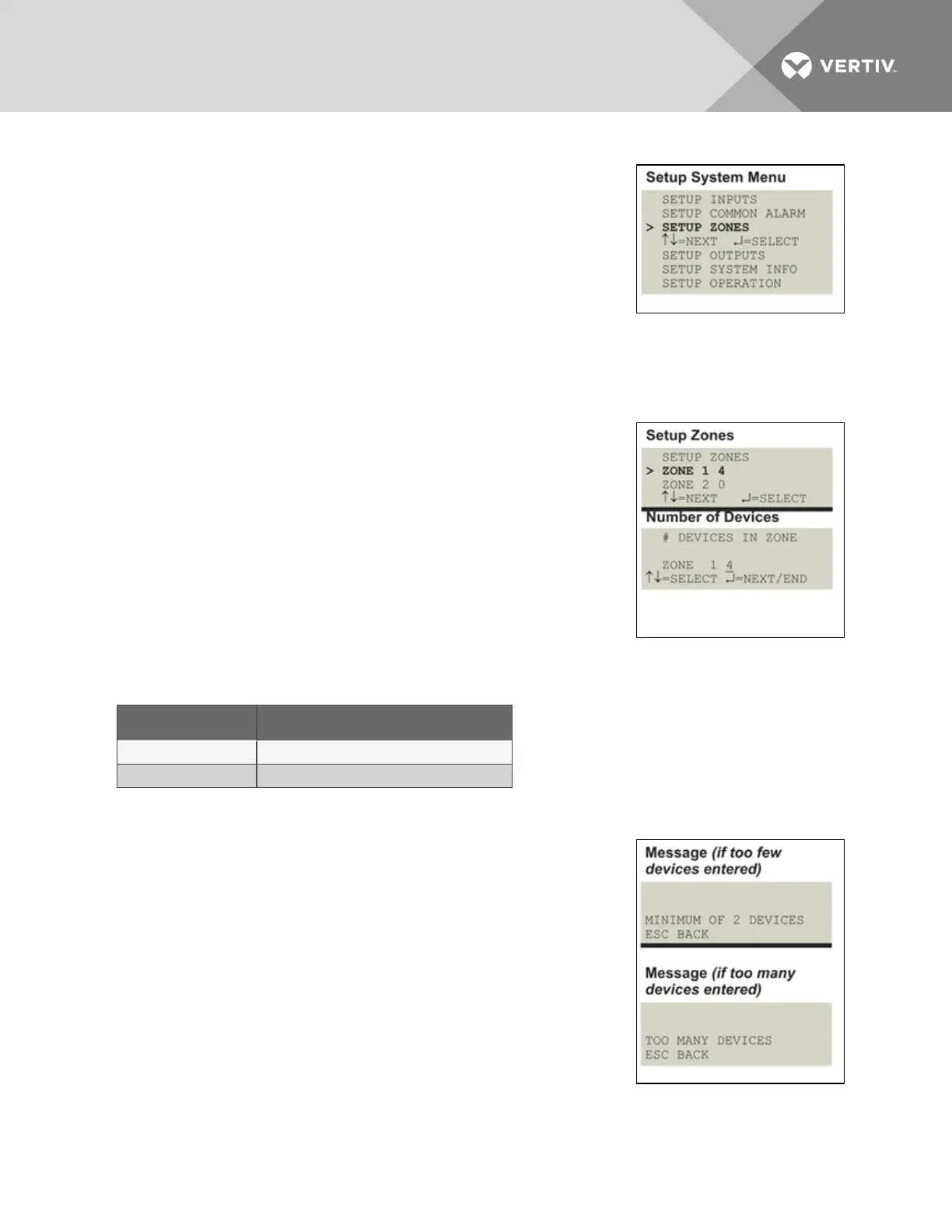

• From the Setup System Menu, shown at right, use the arrows to choose Setup Zones and press
Enter.
7.5.1 Set Up a Zone
• From the Setup Zones Menu, choose a zone—for example,
Zone1—and press Enter.
• On the Number of Devices screen, Use the arrows to select the
number of outputs for this zone, then press Enter. The example
at right shows four outputs in Zone1.
Table 7.4 below shows the default number of outputs for each zone.
Zone Default number of outputs
Zone1 4
Zone2 0
Table 7.4
Default zones
NOTE: Each zone that is used must have at least two outputs, and the total for the two zones cannot
exceed four.
A message appears if you enter too few or too many devices, as shown at
right. Press Escape to return to the Setup Zones menu.
Table 7.5 on the next page shows the possible combinations of outputs
for each zone.
For example, if Zone1 has four outputs, then Zone2 may not be used
(0outputs).
Vertiv | Liebert® AC4 User Manual | 49
