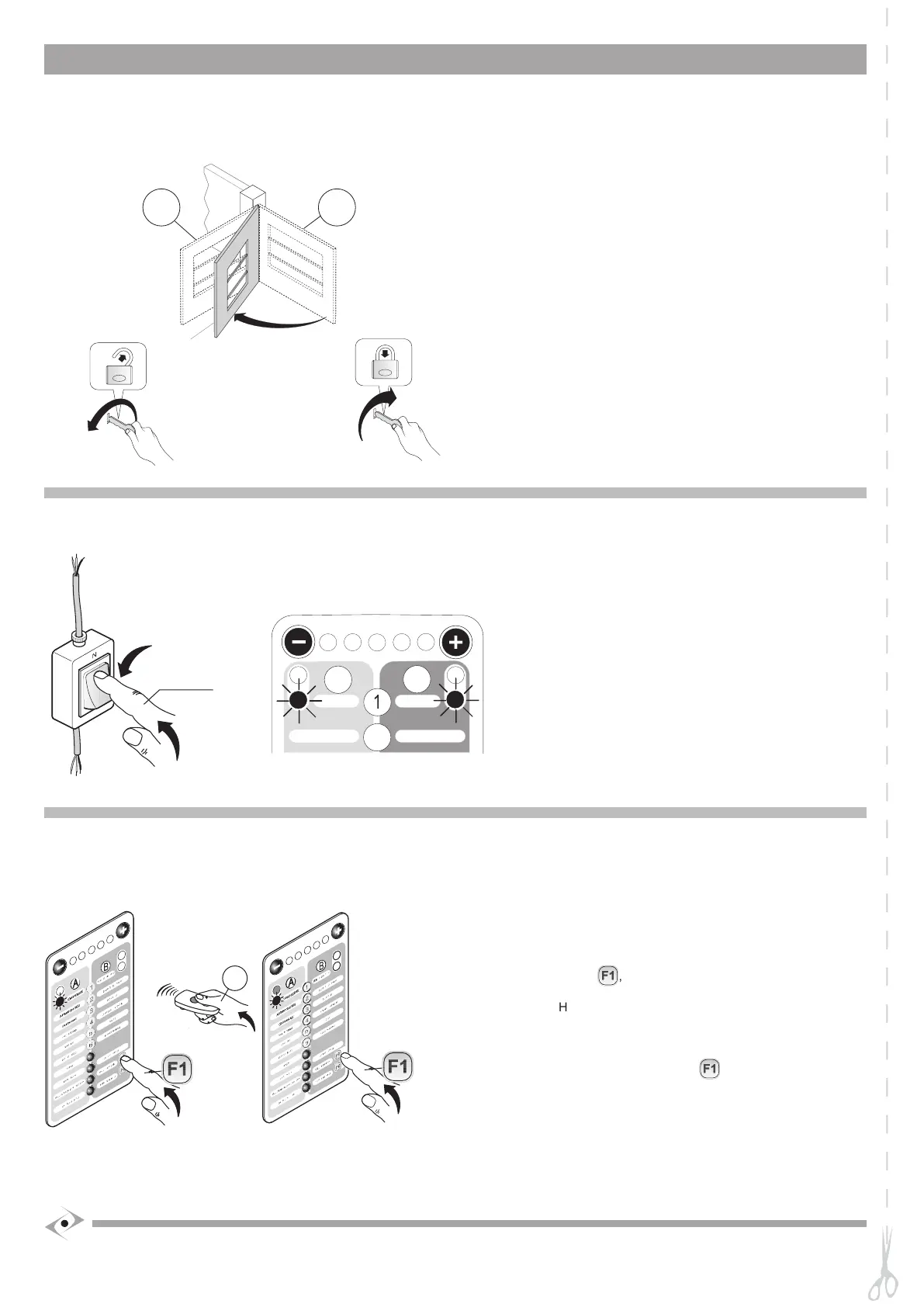

INSTALLATION OF AUTOMATIONS WITH STOP PLATES
PHASE 1
LOCKING
UNLOCKING
A
B
45°
a)
A
djust the opening
(A)
and closure
(B)
stop switches or check
the quality of the application’s mechanical plates.
b) Position the leafs at 45°.
PHASE 2
1
2
A
B
N
O
230V
230V
ON
Switch on the system’s power supply and check that the two red
LEDs fl ash.
PHASE 3
RADIO CONTROL IDENTIFICATION ON THE STEP COMMAND (A)
EL0016
�
X 2
a)
Press
,
the red LED
(SX)
will start to fl ash.
b)
H
old down the radio control key until the green LED lights
b
riefl y.
The green light indicates that the radio control has
been identifi ed.
c
)
Wait for 15 secs or press
twice to exit.
