WTR Series
Installation Instructions
L120 Installation & Maintenance Manual 120-11000 A
Optional Sided-Mounted Handwheel
For unit sizes L120-10, 20, and 40, the handwheel can be mounted on the side as shown in
the following figures.

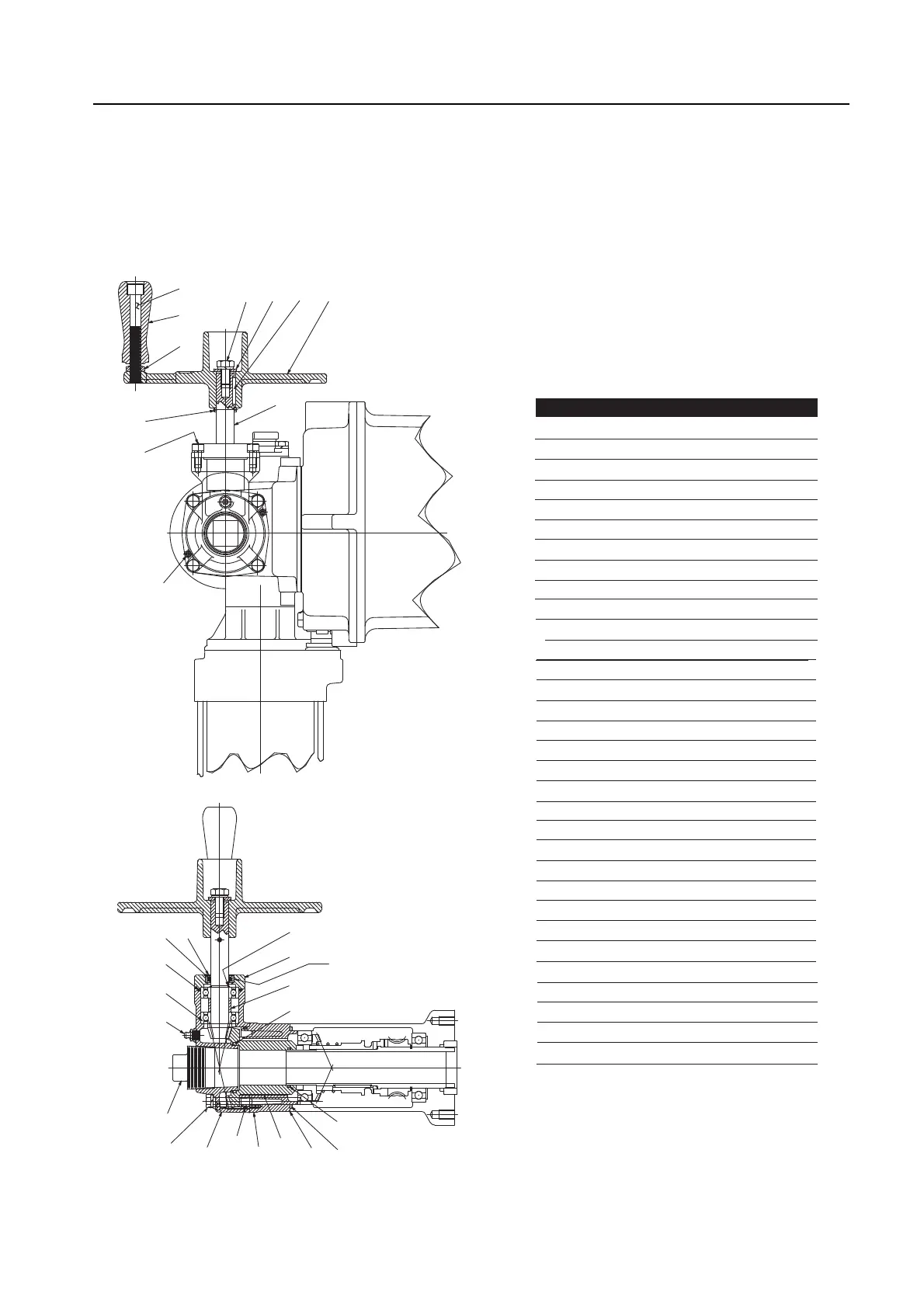

Figure 6 – L120-10 parts list, attachment ratio 4.2:1
11
Piece Quantity Description
6 1 Housing Cover Shim
42-11 1 O - Ring
44 1 Quad Ring
45 1 Pipe Plug
150 1 Bevel Housing
151 1 Bevel Housing Adapter
152 1 Bearing Cap
153 1 Bevel Gear
154 1 Bevel Pinion Shaft
157-1 4 Hex Head Cap Screw
157-2 4 Lockwasher
157-3 2 Soc Head Cap Screw
157-4 1 Roll Pin
157-5 2 Socket Head Cap Screw
157-6 2 Lockwasher
158-1 1 Quad - Ring
158-2 1 O - Ring
158-3 1 O - Ring
158-4 1 Quad - Ring
160 2 Ball Bearing
161 1 Seal Insert
164 1 Spacer
169 1 Retaining Ring
171 1 Grease Fitting
177 1 Handwheel
178 1 Hex. Head Cap Screw
179 1 Lockwasher
180 1 Key
181 1 Retaining Washer
182-1 1 Handwheel Spinner
182-2 1 Sock. Head Cap Screw
182-3 1 Hex. Jam Nut
157-1
&
157-2
150
158-2
151
45
153
6
42-11
144
158-4
164
Note: Apply Loctite 601/609
to ID of Bearing Cap
152
169
161
158-1
158-3
160
171
182-2
182-1
182-3
179
178
181
180
154
157-4
157-3
&
157-6
157-5
