L120 Installation & Maintenance Manual 120-11000 A12

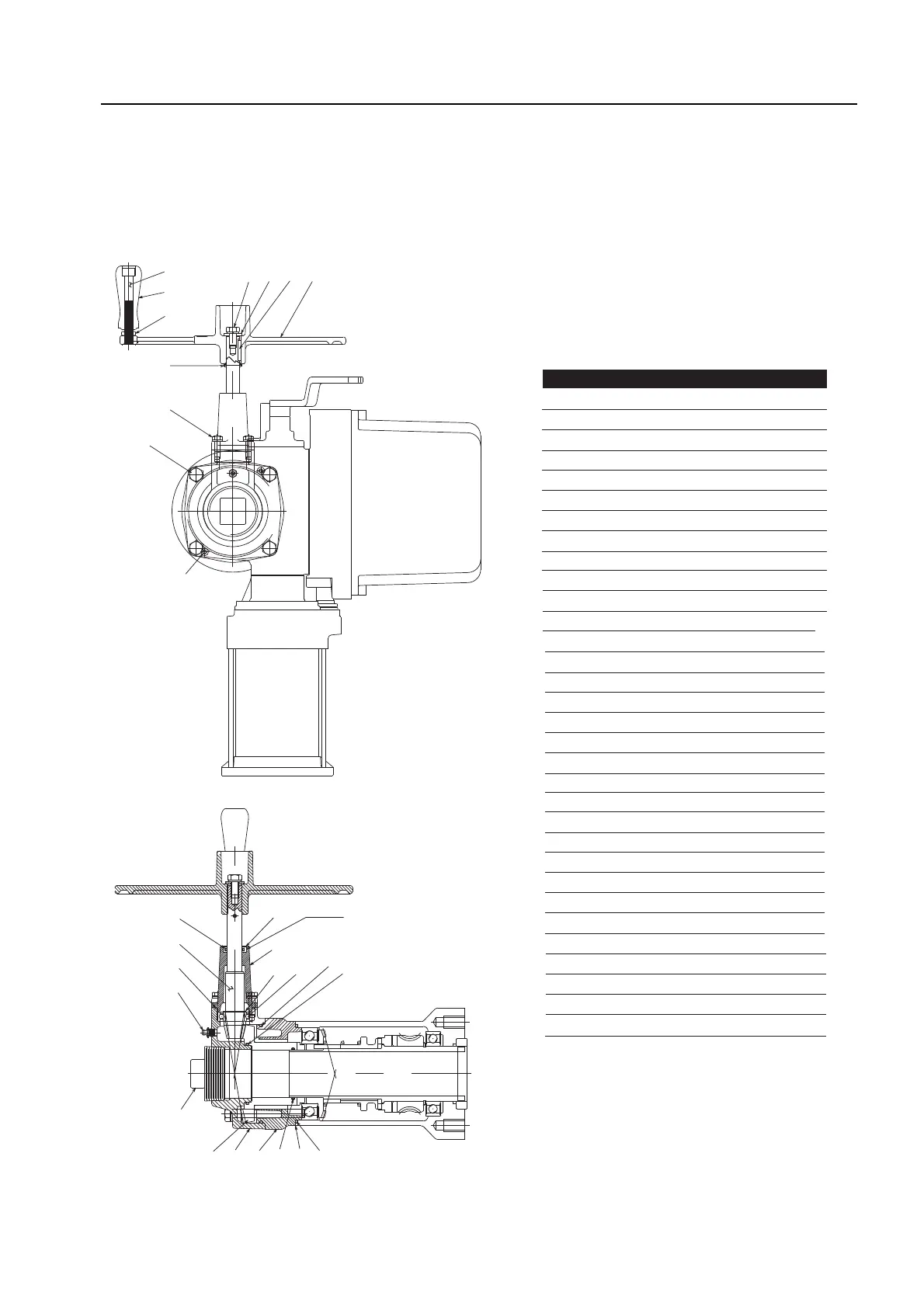

Figure 7 – L120-20 with side-mounted handwheel and parts list, attachment ratio 5.7:1
154
150
151
45
153
6
42-11
158-4
158-2
Note: Apply Loctite 601/609
to ID of Bearing Cap
152
169
161
158-1
158-3
160
171
44
182-2
182-1
182-3
179
&
178
181
180
157-5
157-3
&
157-4
157-6
177
157-1
&
157-2
Piece Quantity Description
6 1 Housing Cover Shim
42-11 1 O - Ring
44 1 Quad Ring
45 1 Pipe Plug
150 1 Bevel Housing
151 1 Bevel Housing Adapter
152 1 Bearing Cap
153 1 Bevel Gear
154 1 Bevel Pinion Shaft
157-1 4 Hex Head Cap Screw
157-2 4 Lockwasher
157-3 2 Hex Head Cap Screw
157-4 1 Lockwasher
157-5 2 Roll Pin
157-6 2 Socket Head Cap Screw
158-1 1 Quad - Ring
158-2 1 O - Ring
158-3 1 O - Ring
158-4 1 Quad - Ring
160 2 Ball Bearing
161 1 Seal Insert
164 1 Spacer
169 1 Retaining Ring
171 1 Grease Fitting
177 1 Handwheel
178 1 Hex. Head Cap Screw
179 1 Lockwasher
180 1 Key
181 1 Retaining Washer
182-1 1 Handwheel Spinner
182-2 1 Sock. Head Cap Screw
182-3 1 Hex. Jam Nut

Limitorque L120 Series Specifications

General

Enclosure	NEMA 4, NEMA 4X
Motor Options	Single-phase, Three-phase
Control Options	Local, remote, modulating
Voltage	120V, 240V, 480V
Communication Protocol	Modbus, Foundation Fieldbus, Profibus
Housing Material	Aluminum
Temperature Range	-40°C to +70°C (-40°F to +158°F)
Ambient Temperature Range	-40°C to +70°C (-40°F to +158°F)
