L120 Installation & Maintenance Manual 120-11000 A
Product Identification
The actuator unit nameplate is located on the back of the unit opposite the limit switch
compartment. The nameplate contains the following information:
• Limitorque name
• Point of Manufacture
• Unit Size
• Order Number
• Serial Number
• Customer Tagging
• CE Stamp
The motor nameplate is located on the motor. The nameplate contains the following
information:
• ID Number • Start Torque
• Run Torque • Enclosure Type
• RPM • Volts
• Full Load Amps • Locked Rotor Amps
• Insulation Class • Duty
• Space Heater Size • Horsepower
• Service Factor • Phase
• Cycles • Motor Code
• Ambient Temperature • Connection Diagram

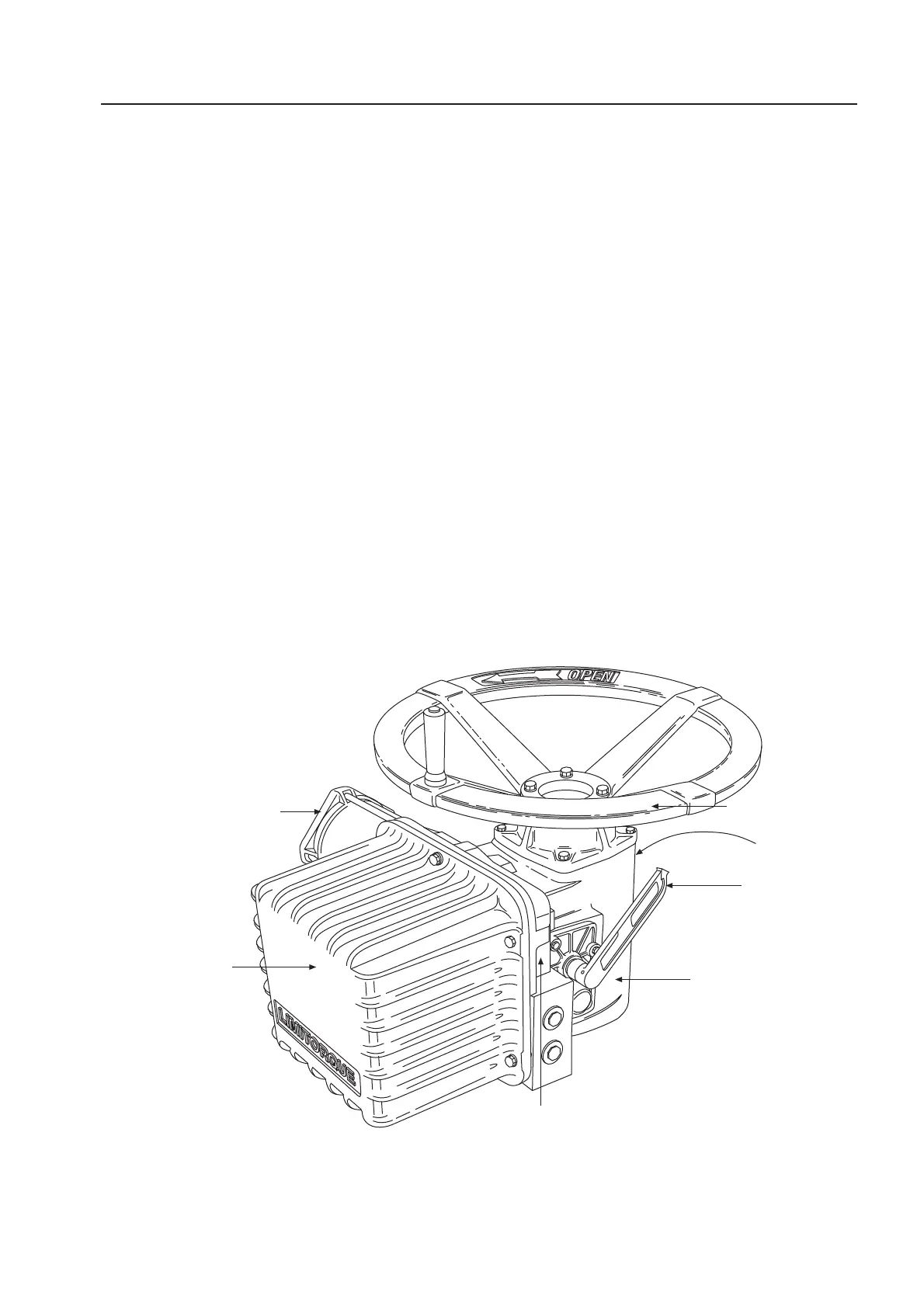

Figure 1 – L120-10 through 40
2
Motor
Controls
Compartment
Electrical
Compartment
Housing
Declutch
Lever
Handwheel
Actuator Nameplate
(hidden)

Limitorque L120 Series Specifications

General

Enclosure	NEMA 4, NEMA 4X
Motor Options	Single-phase, Three-phase
Control Options	Local, remote, modulating
Voltage	120V, 240V, 480V
Communication Protocol	Modbus, Foundation Fieldbus, Profibus
Housing Material	Aluminum
Temperature Range	-40°C to +70°C (-40°F to +158°F)
Ambient Temperature Range	-40°C to +70°C (-40°F to +158°F)
