WTR Series
Operation
L120 Installation & Maintenance Manual 120-11000 A

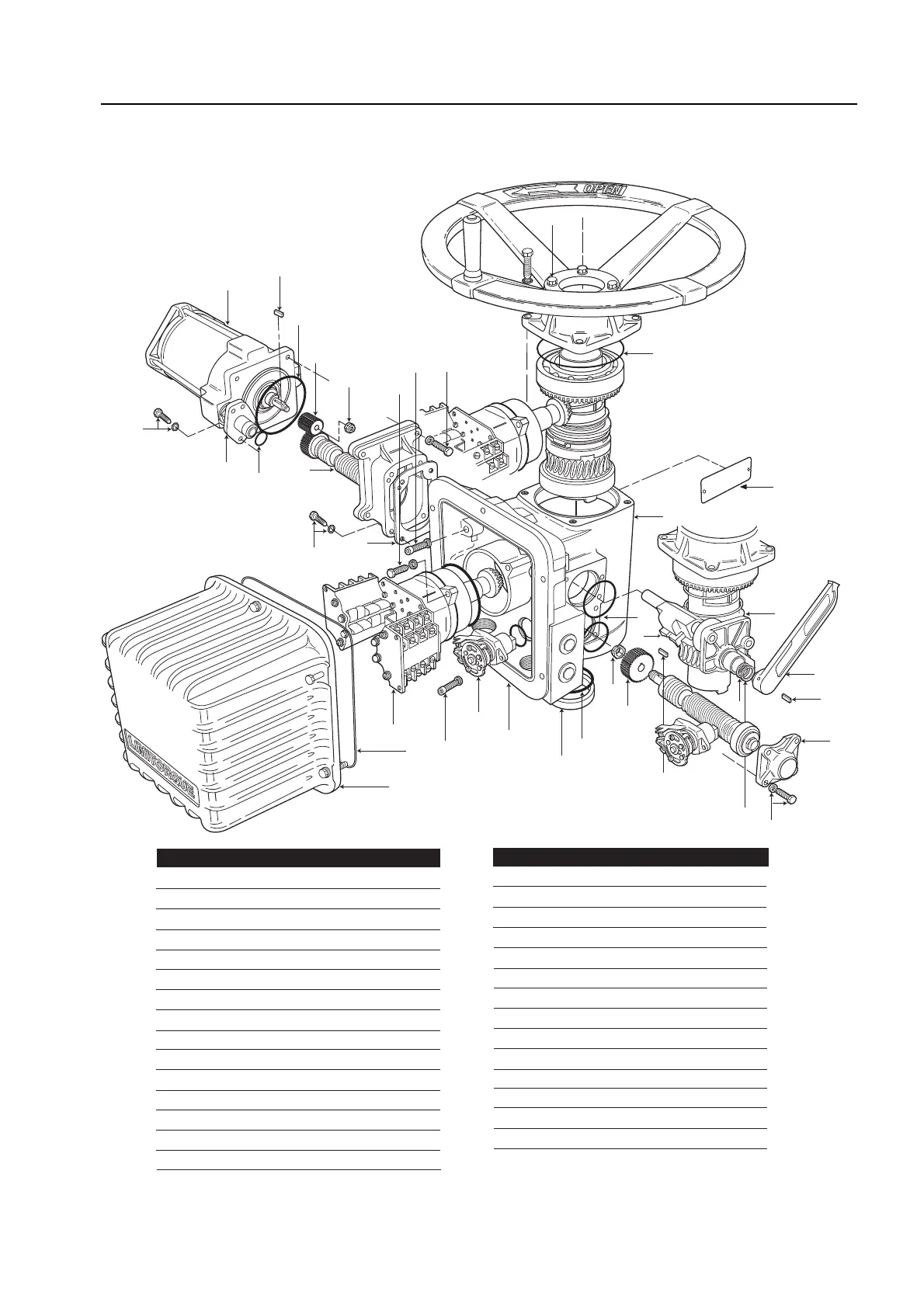

Figure 10 (two of two) – L120-10 through 40 parts breakdown
18
39
42
3
40
50
50
38
30
50
46
2
50
50
42
42
1
11
10
9
9
5
50
50
35
37
36
4
42
42
42
3
200
47
50
300
305
7
310
Piece Quantity Description
1 1 Housing
2 1 Motor Adapter
3 1 Electrical Compartment
4 1 Seal Retainer
5 1 Worm Shaft End Cap
6 1** HSG. Cover Shim Set
7 1 Declutch Shaft Assy.
9 1 Declutch Lever
10 1 Roll Pin
11 1 Declutch Cap
15 1 Worm Shaft Assembly
30 1 Nipple Flange
31 1 Motor
32 4** Dowels
35 1 Worm Shaft Gear
Piece Quantity Description
36 1 Key
37 1 Flexloc Nut
38 1 Motor Pinion
39 1 Key
40 1 Stop Nut
41 1* Washer
42 1 Seals Kit
46 1 O-Ring
47 1 O-Ring
50 1 Hardware Kit
200 1 Compartment Cover
300 1 Torque Switch
305 1 Geared Limit Switch
310 1 Unit Nameplate
* L120-40 Only
** Not Shown
