Linak 239 Series

Instruction Manual for TECH-system type 239
______________________________________________________________________________
Page 27 of 39 june 2020 ver. 09
LINAK Danmark A/S - Mønstedsvej 9 8600 Silkeborg - Telefon 86803611 - www.linak.dk

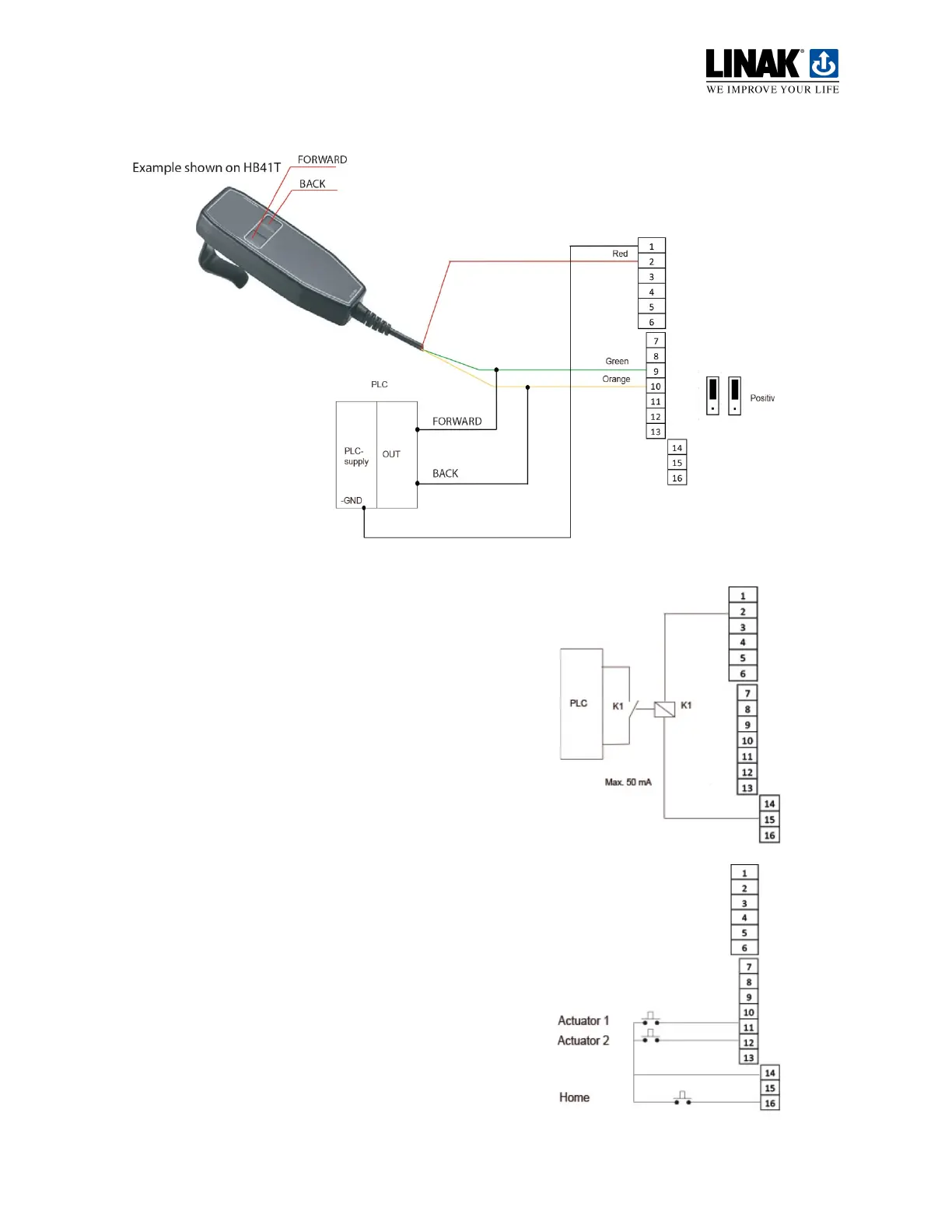

Connection diagram for PLC and manual Control unit
(Cable length on the manual control unit above 5 m)
Connection diagram for relais for Fault OUT on PLC
Service run
(Remark! Parameter 13 = 0)
