Instruction Manual for TECH-system type 239
______________________________________________________________________________
Page 18 of 39 june 2020 ver. 09
LINAK Danmark A/S - Mønstedsvej 9 8600 Silkeborg - Telefon 86803611 - www.linak.dk
Connection of LINAK actuators
The majority of LINAK actuators are supplied as standard with a pre-fitted cable, and the actuators are
also fitted with different types of plugs depending on which control box has been selected for the control
operations. For operation with TR-EM-239, the actuators are typically supplied without plugs. The cable
may vary with regard to the number of conductors and the respective colours depending on the type of

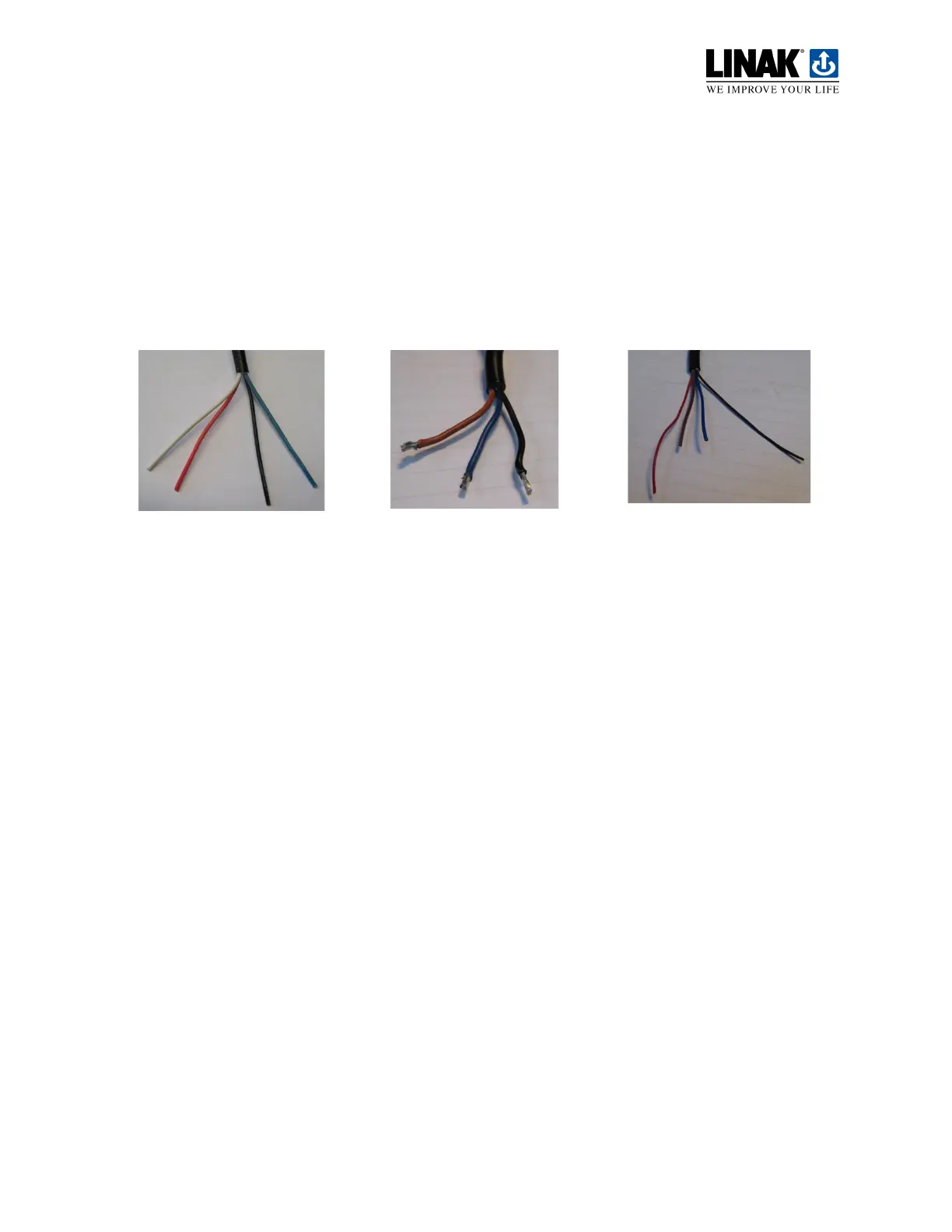

feedback the actuator is fitted with. The pictures below show the different types of cables that are fitted to
the compatible actuators.
