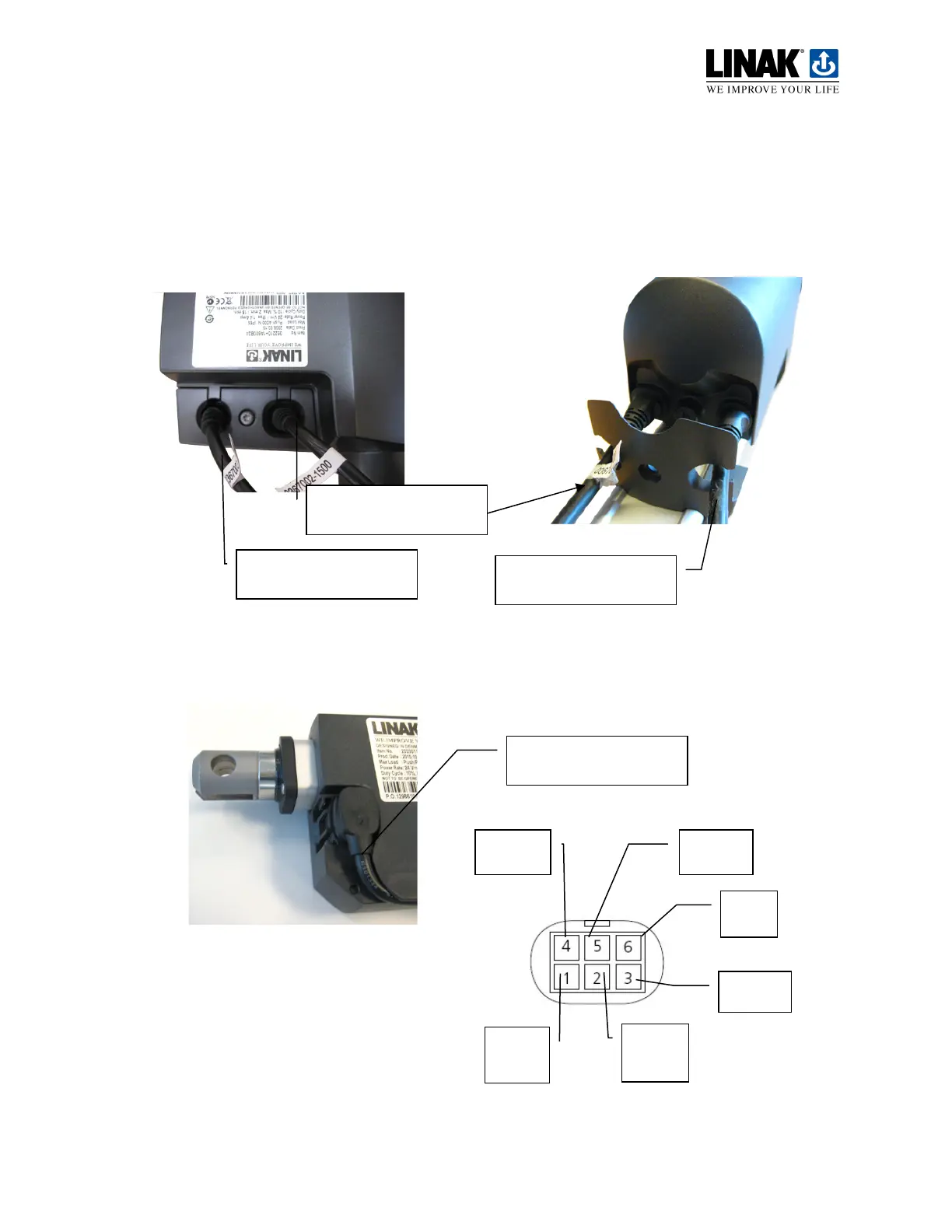

The new generation of actuators is fitted with minifit plugs in the motor housing, and are thus supplied
without fitted cables. In contrast to the cable types mentioned above, the supply and signal conductors
have now been separated and are thus in individual cables.
Signal cable
Order no. 0367003-1500
Signal cable
Order no. 0367003-1500
Motor cable
Order no. 0367002-1500
LA35
LA36 / LA37
Motor cable
Order no. 0237002-1500-A
LA23 / BL1
M-
(Blue)
M+
(Brown)
Hall B
(Green)
Gnd
(Hall -)
(Black)
Hall A
(Yellow)
VCC
(Hall+)
(Red)
