Page 40 of 192
Input/ Output specifications: Dual Hall, digital positioning (02 in ordering example)
Item Specification Comment
Description The actuator can be equipped with two hall sen-
sors A and B and a spindle magnet. In this way you
can have pulses from the actuator when it moves.
Only use for standard actuators, with LINAK A/S
Control Boxes for OpenBus™.
Resolution The feedback system has an 8P magnet which
gives 16 shifts in pulses per spindle turn:
3 mm pitch = 0.1875 mm per pulse
5 mm pitch = 0.3125 mm per pulse
6 mm pitch = 0.375 mm per pulse
9 mm pitch = 0.5625 mm per pulse
12 mm pitch = 0.75 mm per pulse
20 mm pitch = 1.25 mm per pulse
See drawing for details.

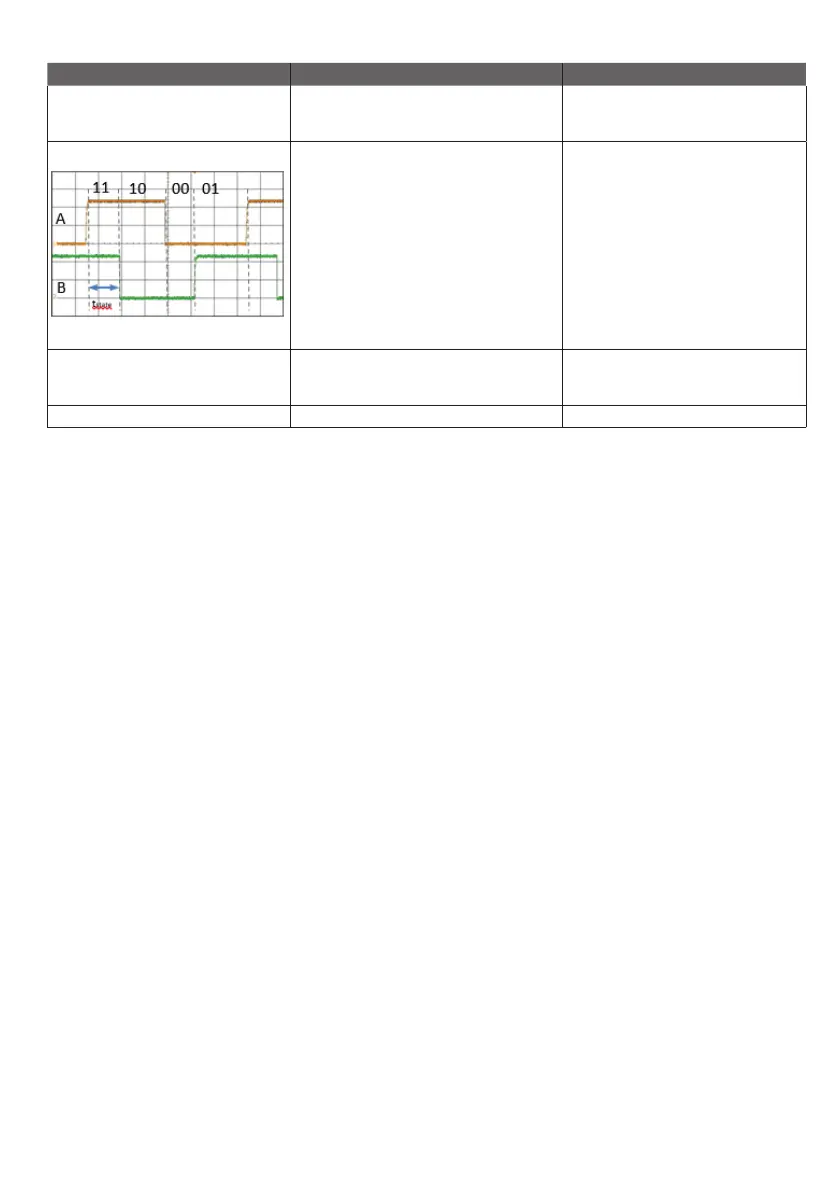

Tstate is minimum 5ms in all states (11.10.00.01)
Pulse/pause minimum 10 milli-seconds.
On 100 mm stroke you will have the
following number of pulses:
3 mm pitch = 533 pulses
5 mm pitch = 320 pulses
6 mm pitch = 267 pulses
9 mm pitch = 178 pulses
12 mm pitch = 133 pulses
20 mm pitch = 80 pulses
Connection 6 pins mini-fit Use cables:
Standard 6 wires:
0237003-xxxx
Combination Only standard
