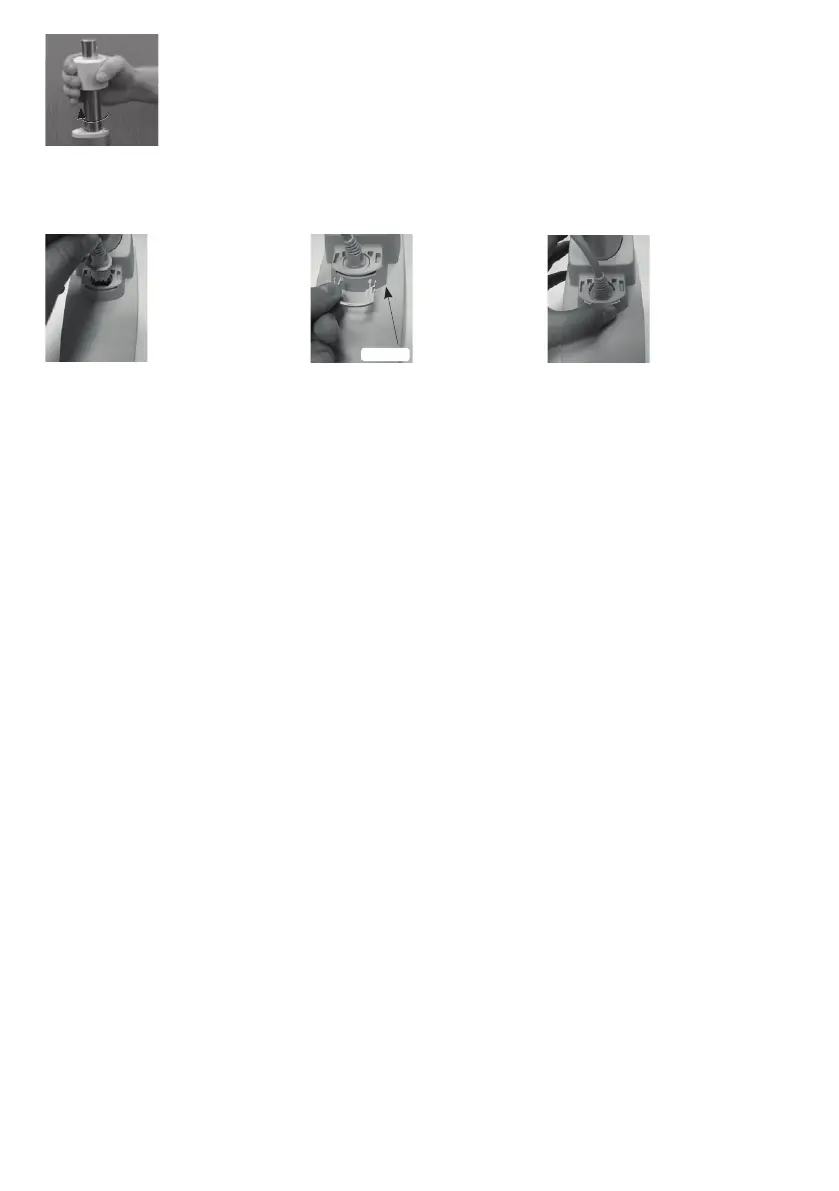

Fig. 1. Manual Lowering
In case of a power failure it is possible to mechanically lower a patient placed in a patient hoist. When turning the manual
lowering handle clockwise the actuator can be moved fully inwards.
Manual lowering:
The following pictures illustrate the manual lowering procedure.
Fitting the plug/smart cable lock
The following pictures illustrate how to fit the plug connection using the smart cable lock manual lowering procedure.
Step 1:
Insert the cable in the socket.
Make sure the O-ring on the
cable is fully inserted..
Step 2:
Attach the cable lock.
Make sure the inclined
surface is facing upwards.
Fig. 2
Step 3:
Push the cable lock inside the slot.
If necessary, the cable can be pushed
down at the same time to ease the
cable lock mounting.
Fig. 3Fig. 1
Inclined surface
