Discharge limiter/indicator

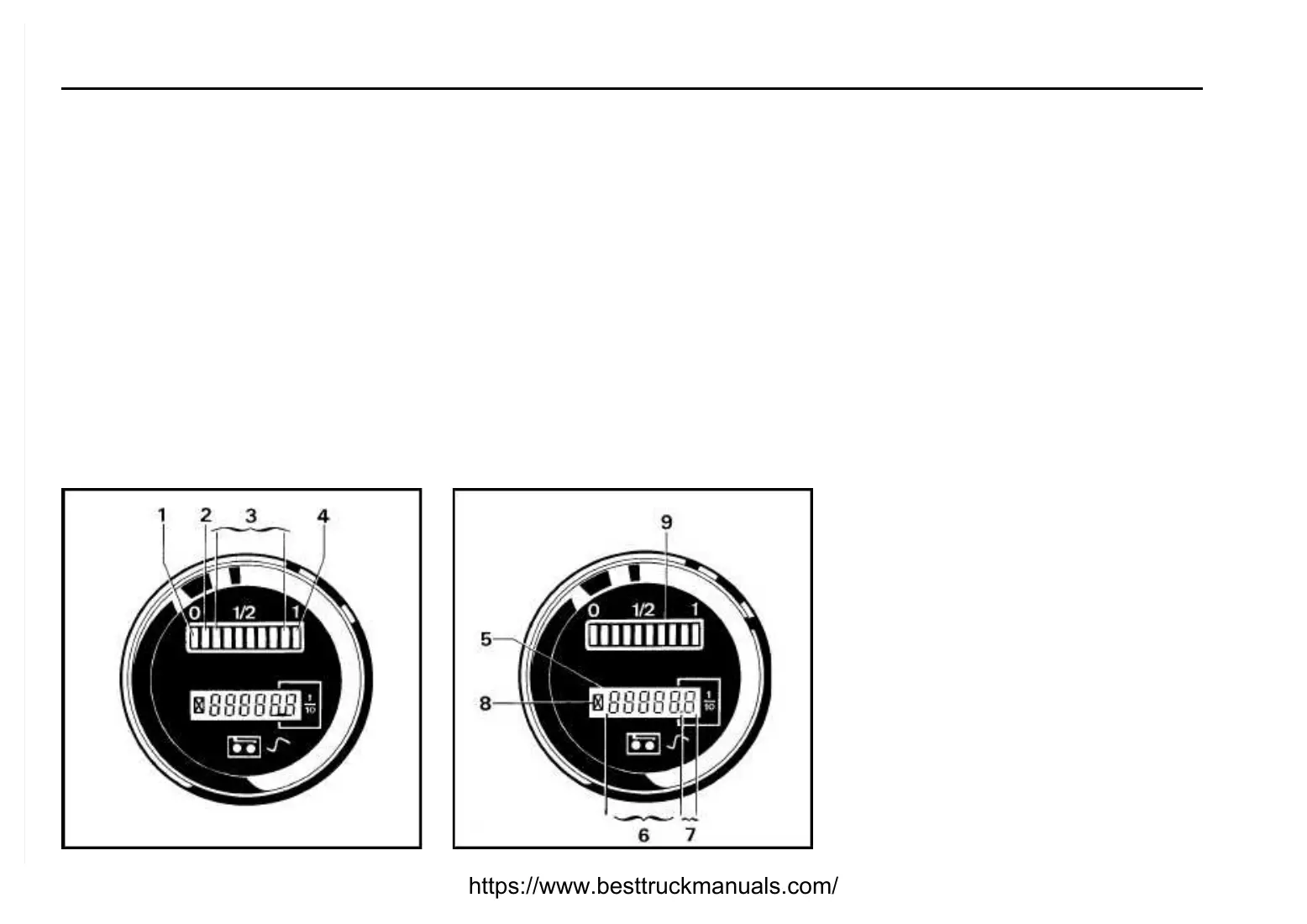

The battery discharge limiter/indicator (9) and the hour
meter (5) are combined in a single housing.
The face of the dial is made from extremely durable
safety pedal is depressed.
of an hour (7). While the truck battery is connected, it
displays the hours stored in memory.
When the battery connector is disconnected, the hours are
If the hour meter has to be replaced, make a note of the
service hours recorded by the defective meter, in the place
provided for this purpose adjacent to the hour meter, and
Operation of the discharge limiter/indicator
and the truck is switched on, and s
successively (from right to left, one diode at a time).
approximately 70% discharged.
battery is 80% discharged; when this threshold is reached,
the limiter prevents operation of the lift motor.
in order to be able to continue using the truck.
A potentiometer at the rear of the housing allows the cut-
off threshold to be adjusted for any special operating
conditions. The normal position is with the arrow pointing
towards the letter N. If any special setting is needed for a
particular use, please ask your local representative for
Batteries with gel electrolyte require a special setting.
