D9U001ES1-0110_02
29
To position Calfrest, position Thighrest rstly.
To lift Calfrest:
► lift Calfrest by the handle to intended position
► lower the Calfrest so that catch fits in the ratchet-bar
To lower Calfrest:
► lift Calfrest slightly by the handle
► lower Calfrest to intended position
► ensure the catch fits in the ratchet-bar

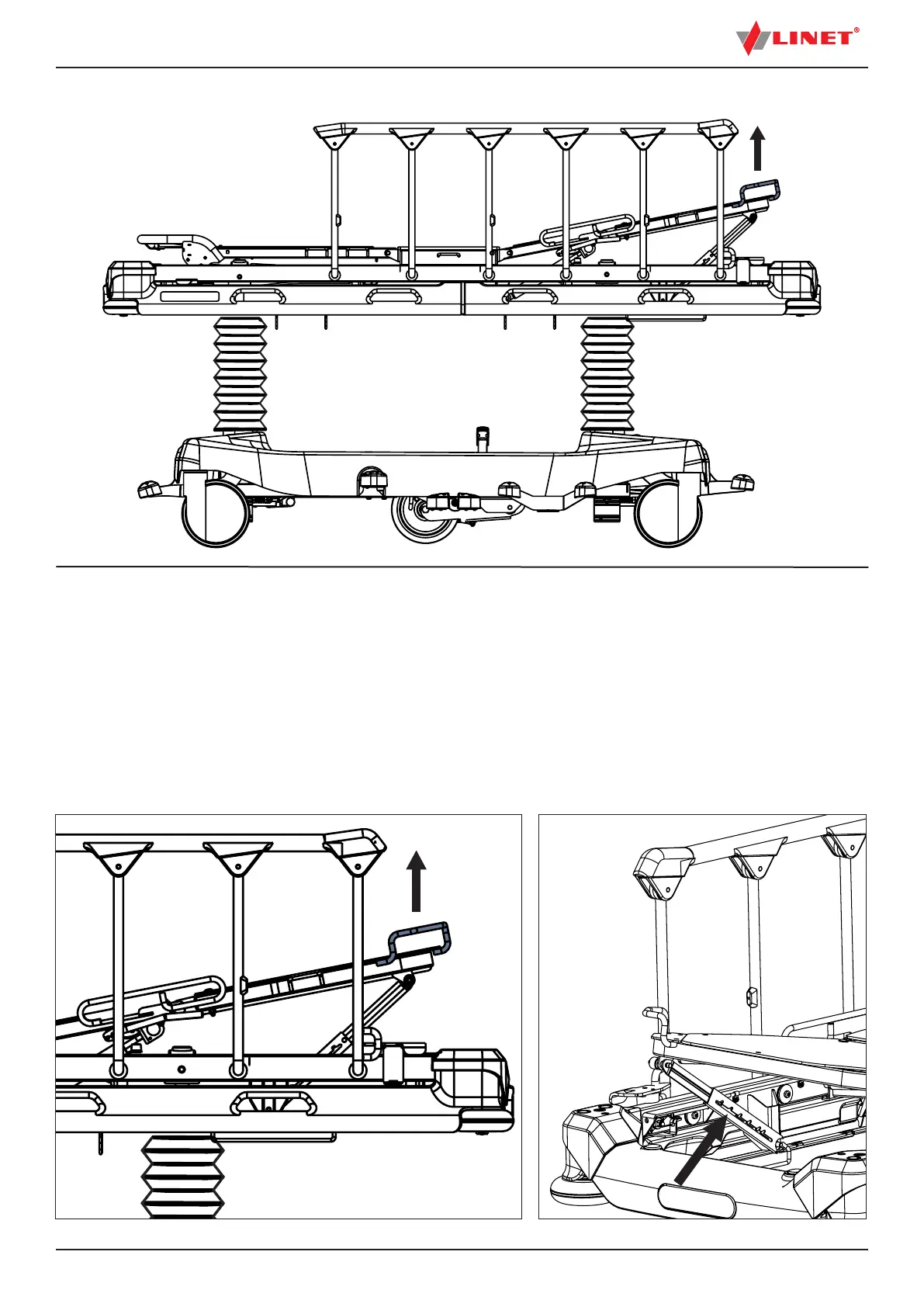

Fig. Calfrest Positioning
9.3.3 Calfrest (only for 4-part Mattress Support Platform)
Fig. Catch in the ratchet-bar
