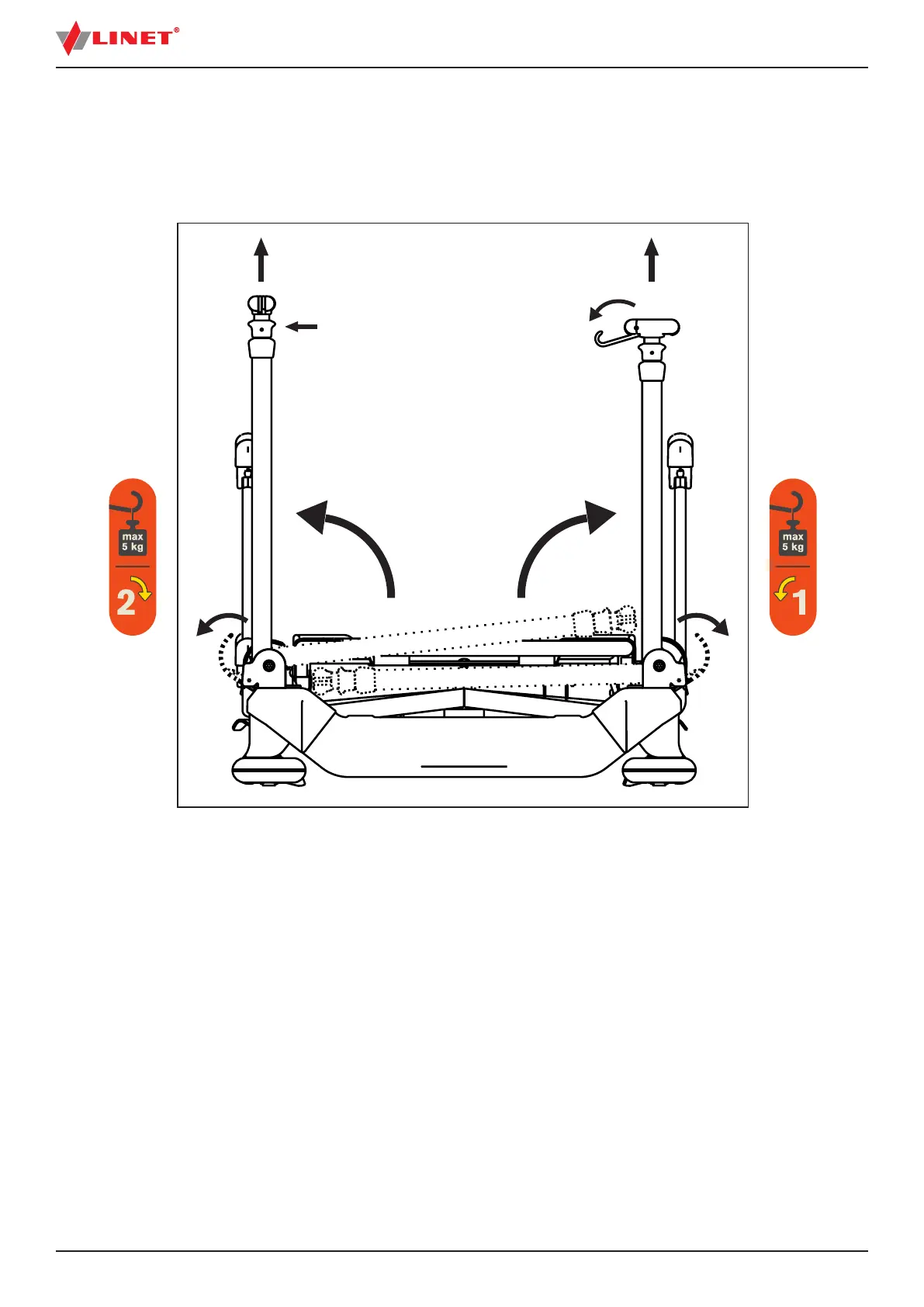

Fig. Pair of foldable infusion stands (head end)
1
43
6 5
2
FOLD THE
MARKED
FOLDABLE
INFUSION
STAND AS THE
FIRST ONE.
FOLD THE
MARKED
FOLDABLE
INFUSION
STAND AS THE
SECOND ONE.
To raise foldable infusion stands:
► Raise a left foldable infusion stand (1).
Move the left foldable infusion stand to the left and to the right to ensure it is xed.
A base of the foldable infusion stand ts in its safety lock.
The left foldable infusion stand is prepared in its position.
► Raise a right foldable infusion stand (2).
Move the right foldable infusion stand to the left and to the right to ensure it is xed.
A base of the foldable infusion stand ts in its safety lock.
The right foldable infusion stand is prepared in its position.
To fold down foldable infusion stands:
► Ensure the right foldable infusion stand is not extended.
► Release the safety lock of the right foldable infusion stand (5).
► Fold down the right foldable infusion stand.
► Ensure the left foldable infusion stand is not extended.
► Release the safety lock of the left foldable infusion stand (6).
► Fold down the left foldable infusion stand.
NOTE In order to release a safety lock it is sufcient to move the safety lock 15-20 mm from the locked position. A fully open
safety lock is intended for cleaning.
12.3 Foldable Infusion Stands
Foldable infusion stand equipped with 2 hooks is intended for carrying IV bags or baskets for intravenous solutions.
The pair of foldable infusion stands can serve as handles for bed transport also when they are raised.
It is possible to extend height of the foldable infusion stand and to fold down the foldable infusion stand again.
Pair of the foldable infusion stands is located in corners of head end or foot end.
Maximum load of one hook is 5 kg.
