D9U001ES1-0110_02
39
Necessary steps before the examination with C-arm:
► Make sure that Mattress Support Platform is in the highest position.
► Position upper part of C-arm above the patient.
The x-ray tube of the C-arm is located between the undercarriage and the Mattress Support Platform.
► Adjust position of siderails accordingly - depending on the C-arm position.
NOTE In some cases the bed may cause artifacts on the x-ray image. Do the patient risk assessment accordingly and evaluate the
positive effect on the in-bed examination versus impact of artifacts.

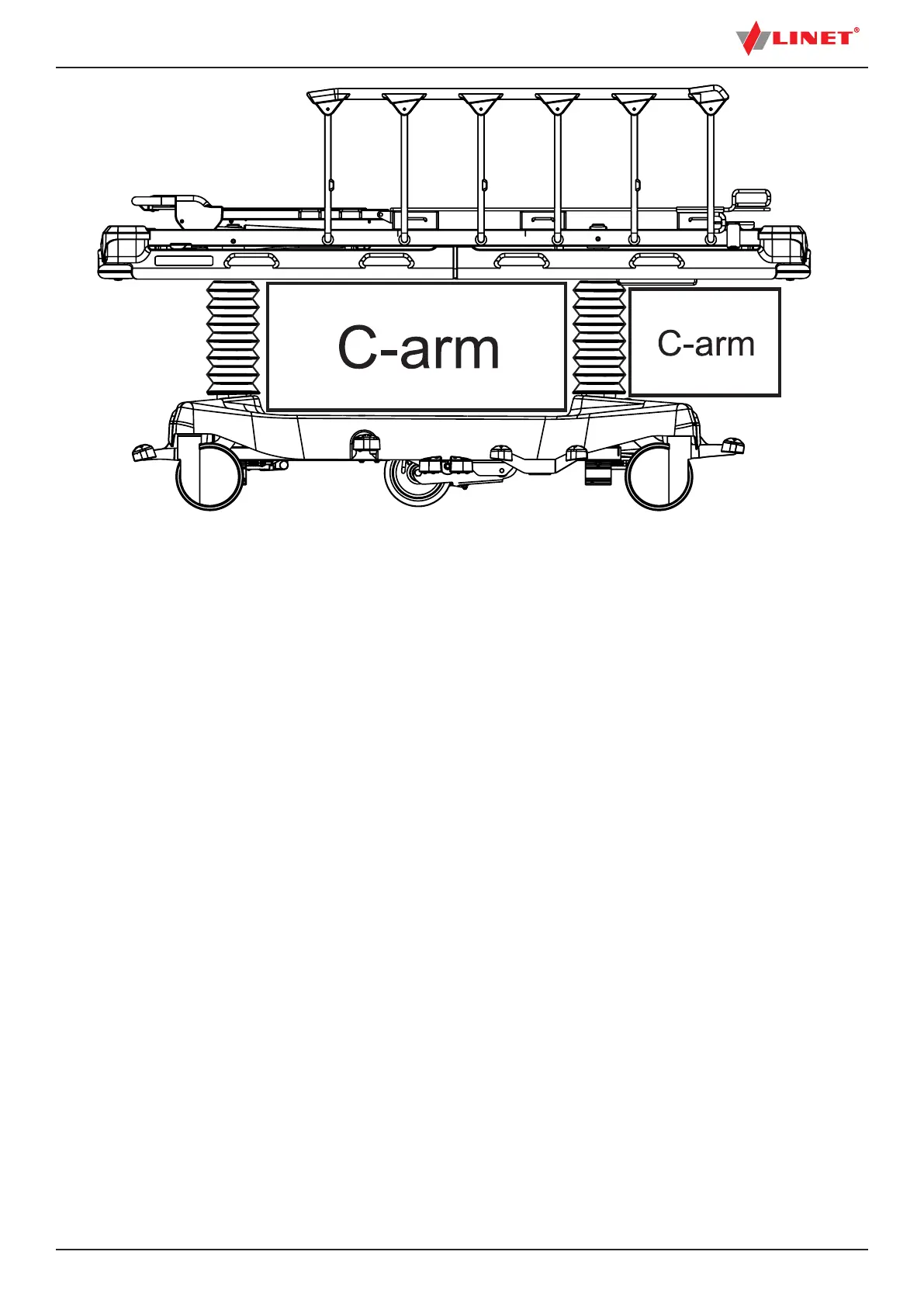

Fig. Space for the lower part of a C-arm
44 cm
88 cm
39 cm
32 cm
