26
Disassembling the Meter

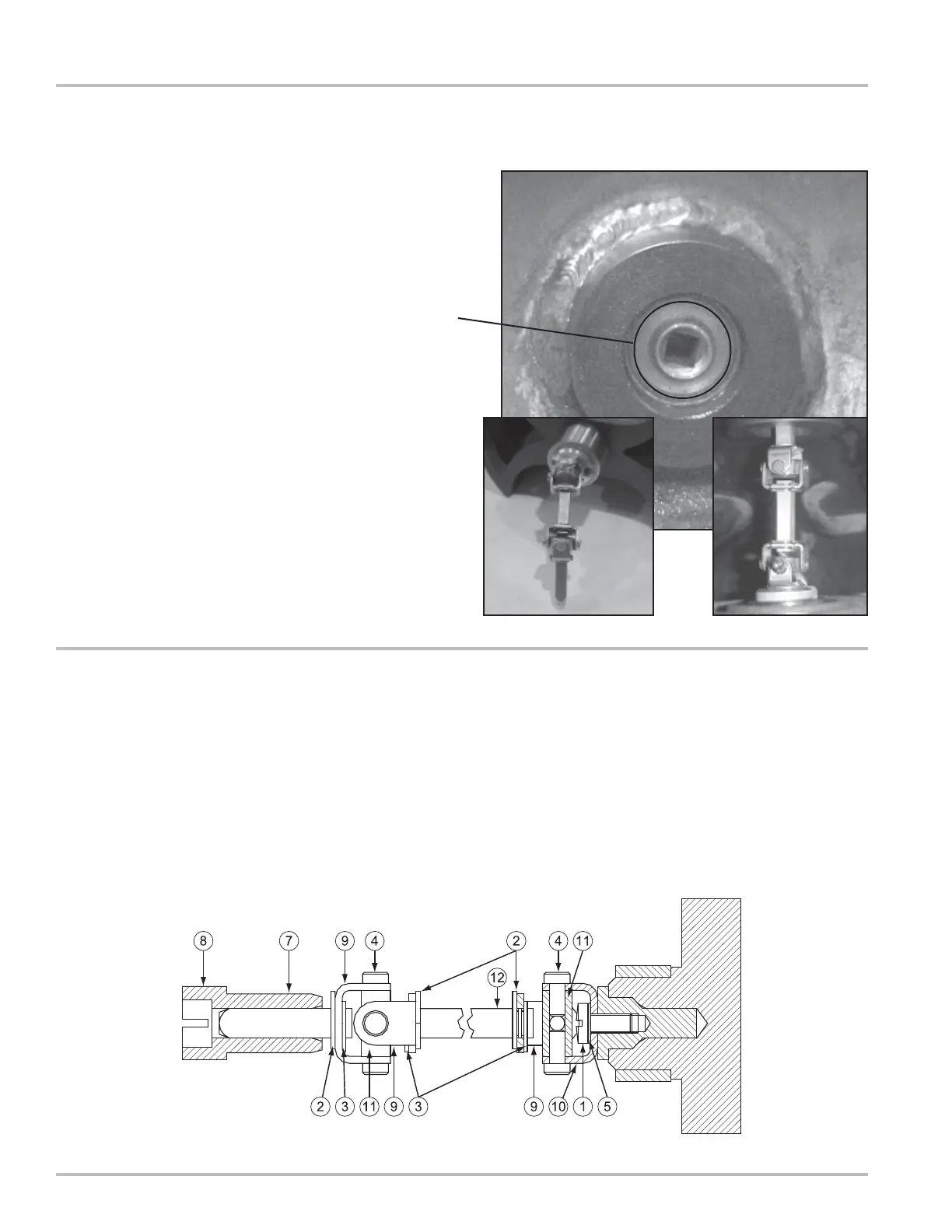

12. The Universal Joint is an extension used to connect
the blocking rotor of the meter to the packing gland.
When the blocking rotor rotates, the Universal Joint
causes the packing gland to rotate which drives the
register. This assembly extends through the back of
the meter and into the weldment wall through the
drive coupling bearing.
Universal Joint Assembly
Blocking Rotor
Connection
Packing Gland
Connection
Universal Joint Components
1. Screw, #8-32
2. Retaining Ring (3)
3. Retaining Ring (3)
4. U-Joint Pin (8)
5. Lock Washer
6. Coupling
7. Drive Coupling
8. Driver Packing
9. U-Joint Bracket
10. Coupling
11. Trunnion
