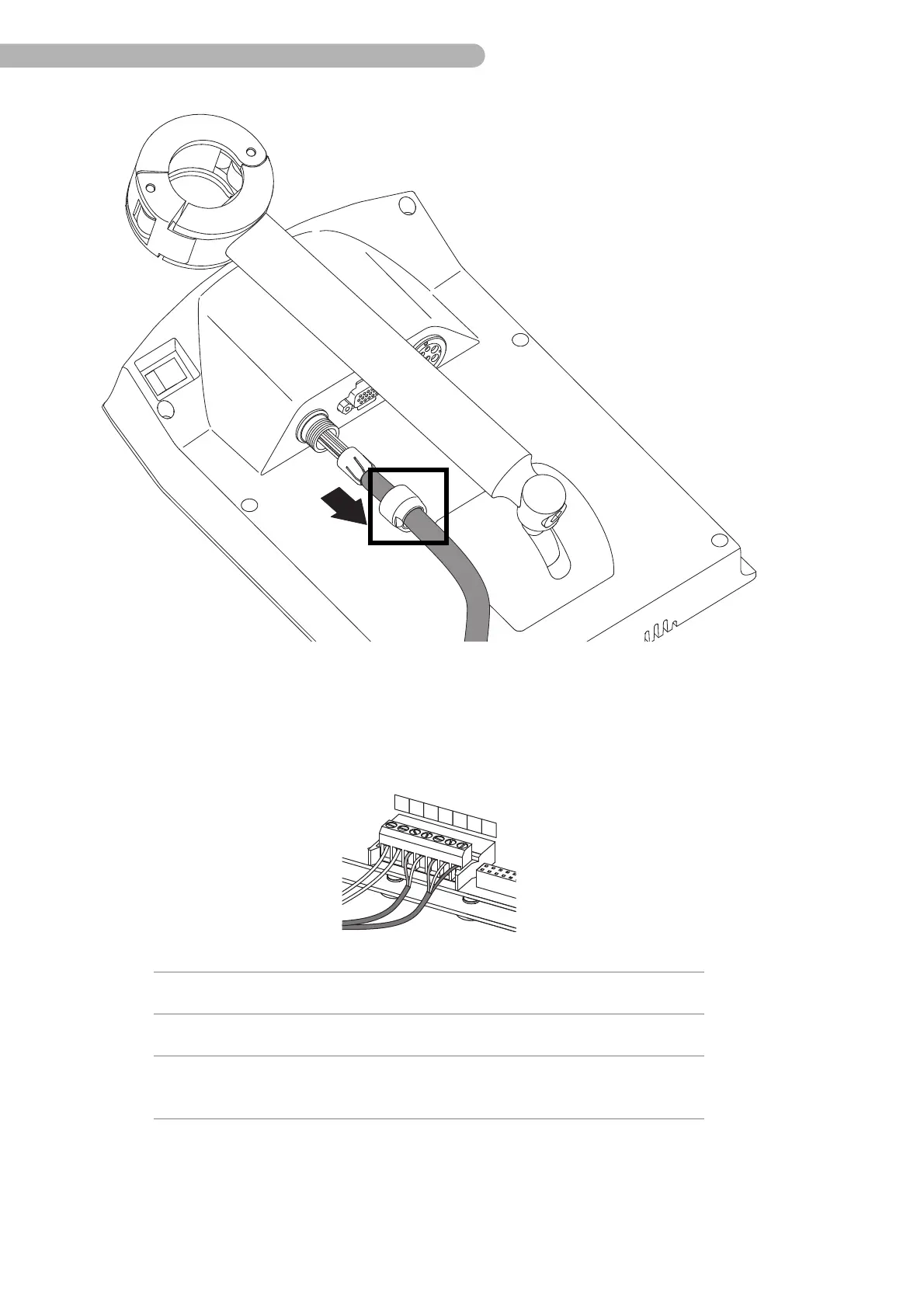

Fig. 20: Dismantling the connecting cable (3)
◗ Open the strain relief clamp on the rear of the casing and pull the cable out.
◗ Remove the two sheaths from the old cable. You will need these to re-attach the new cable.
When inserting the new cable (in the reverse order) ensure that the connections at the CON1 connector
are correctly assigned:
Fig. 21: CON1 connection configuration
1 White
2 Brown
Current supply from mains filter.
Caution: Do not transpose!
3 Green
4 Yellow
from connecting cable (twin wire)
5 Green
6 Yellow
7 Black (sheath)
from connecting cable (triple wire)
