SCP System • Replacing components
CP_SEM_60-00-00.002 37
Dismantling the shaft angle encoder (SAE)

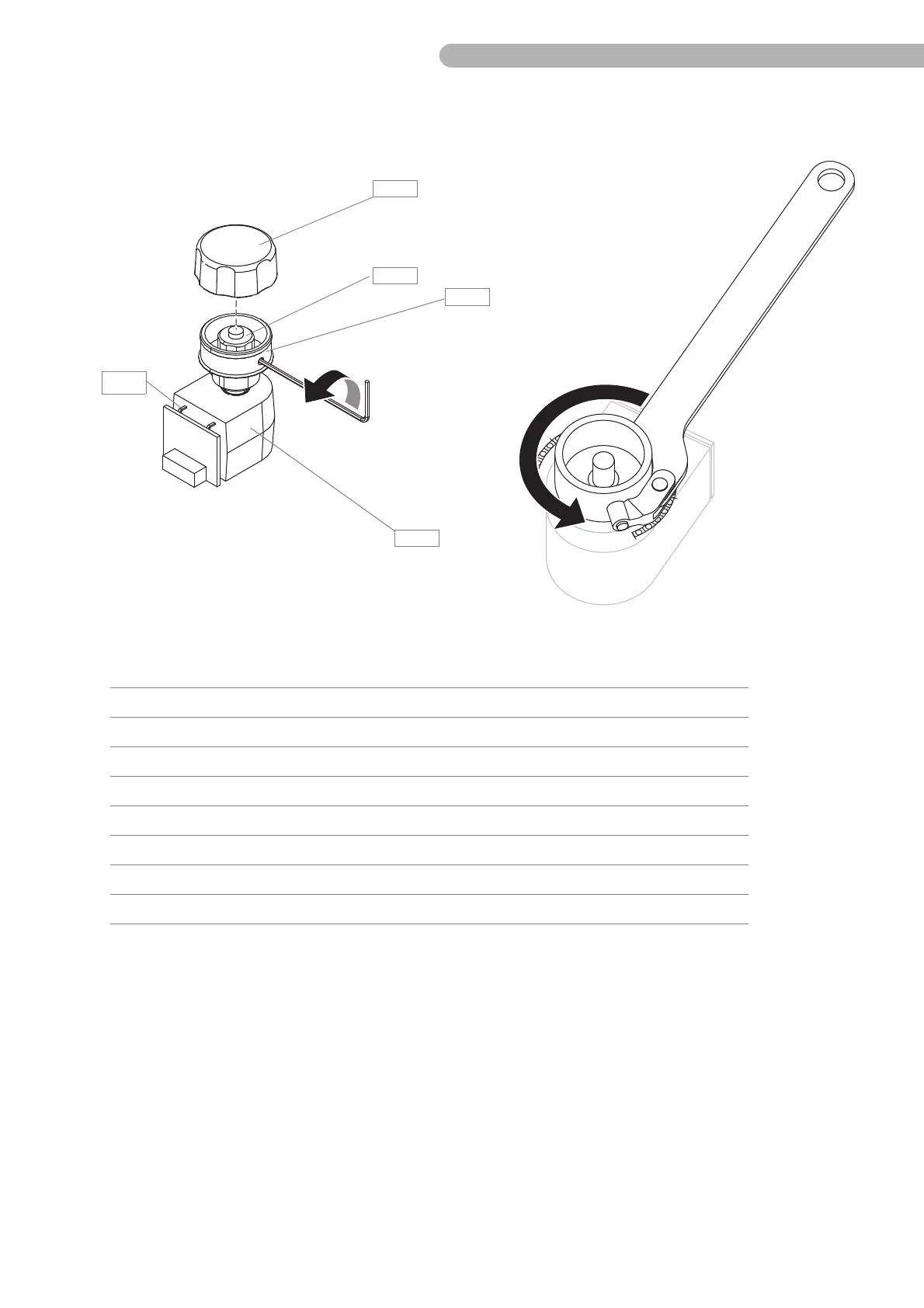

Fig. 22: Dismantling the shaft angle encoder
◗ Pull the rotary knob A 43 upwards.
◗ Release the mounting nut A 44 with an Allen key (size 1.5) and remove the mounting nut.
◗ Release the guide sleeve A 46 by means of a suitable hinged pin wrench. Hold the shaft angle
encoder assembly securely while removing the guide sleeve to prevent damage, e.g. by an
unintentional movement of the shaft angle encoder body.
◗ Unplug the connector A 33 of the shaft angle encoder.
◗ The shaft angle encoder A 47 may now be removed.
Mod. Item Description Number SP number
A43Rotary knob 96-190-057
A44Mounting nut 28-91-76
A45Washer PA 6.2 x 12.0 x 0.5 (see fig. 23) 71-120-514
A46Guide sleeve 60-02-02
A47Shaft angle encoder 97-103-603
Threaded rod, M3x3 71-118-301
A48Washer (see fig. 23) 60-02-04
A49Mounting adapter 45-21-45
