SCP System • System description
CP_SEM_60-00-00.002 15
3.2.1 Module overview - Pump control panel

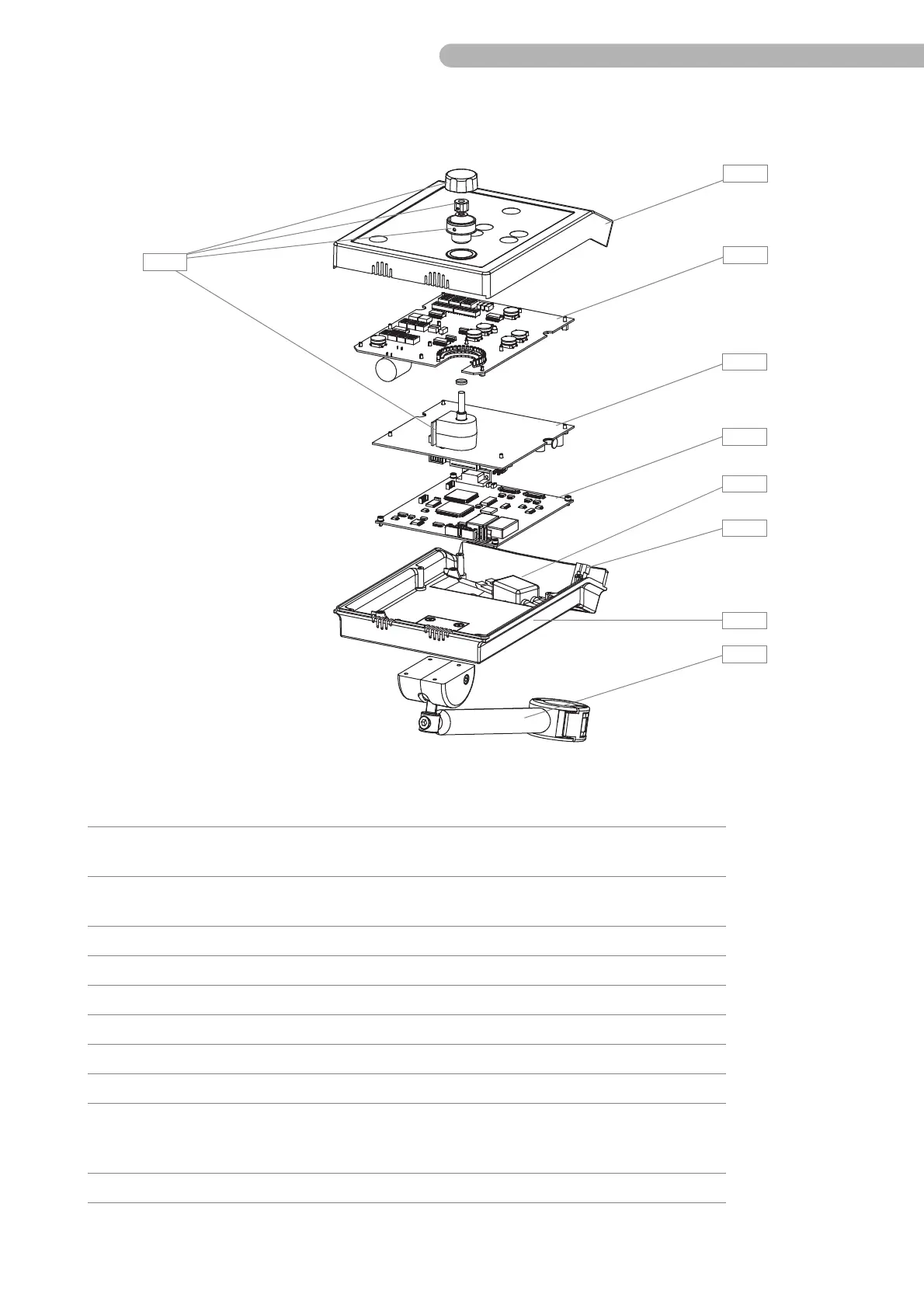

Fig. 3: Module overview of the pump control panel
A 3
A 1
A 6
A 2
A 4
A 5
A 7
A 8
A 10
Mod. Item Description Number SP number
A1Upper casing
with adhesive foil
75-521-101
76-102-941
A2Shaft angle encoder with rotary knob and
assembly parts
see page 37
A3Display board with pusher caps ZPA 9908 see page 33
A4CPU board ZKR 9910 90-305-190
A5Flow sensor board DIGIFLOW 90-900-520
A6Lower casing 75-521-102
A7Mains filter 96-401-012
A8Toggle switch 96-121-209
A9Connecting cable to E/P pack, S3
Connecting cable to E/P pack, S5
(not kinked, firmly attached)
97-102-616
97-102-626
A10Holder (complete) for control panel 60-02-13
