SCP System • Replacing components
CP_SEM_60-00-00.002 39
5.2 Drive unit
Maintenance work on the drive unit is restricted to replacing the motor control board ZPR 9909 A and/
or the connecting cable. In the event of errors requiring more extensive repairs, replace the whole
drive unit.
5.2.1 Opening the drive system

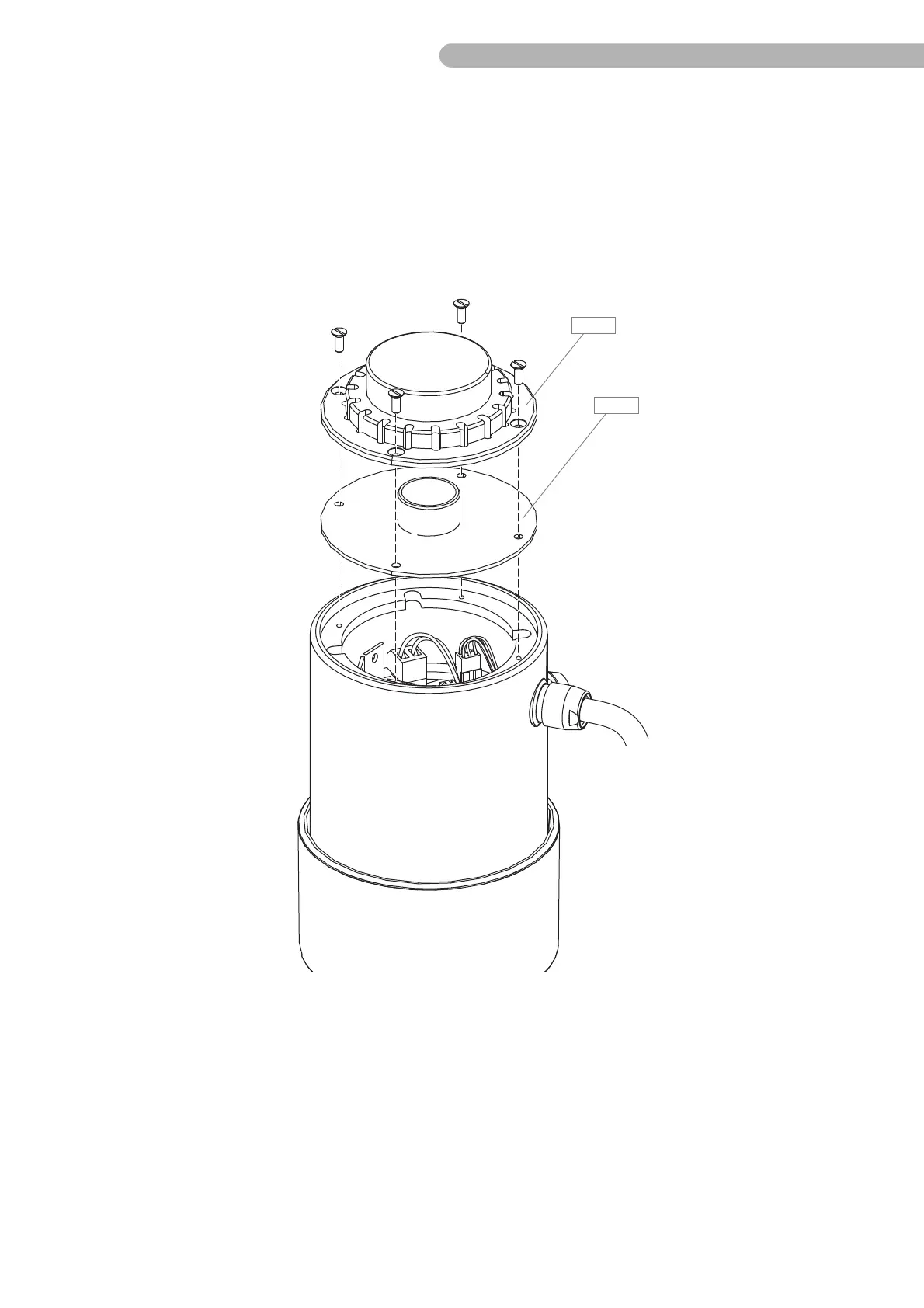

Fig. 24: Opening the drive unit casing
◗ Unscrew the four screws on the base plate B 2 (slotted screwdriver size 2).
◗ Remove the base plate.
◗ Remove the splash protection B 3.
