3.2.2 Module overview - Drive unit

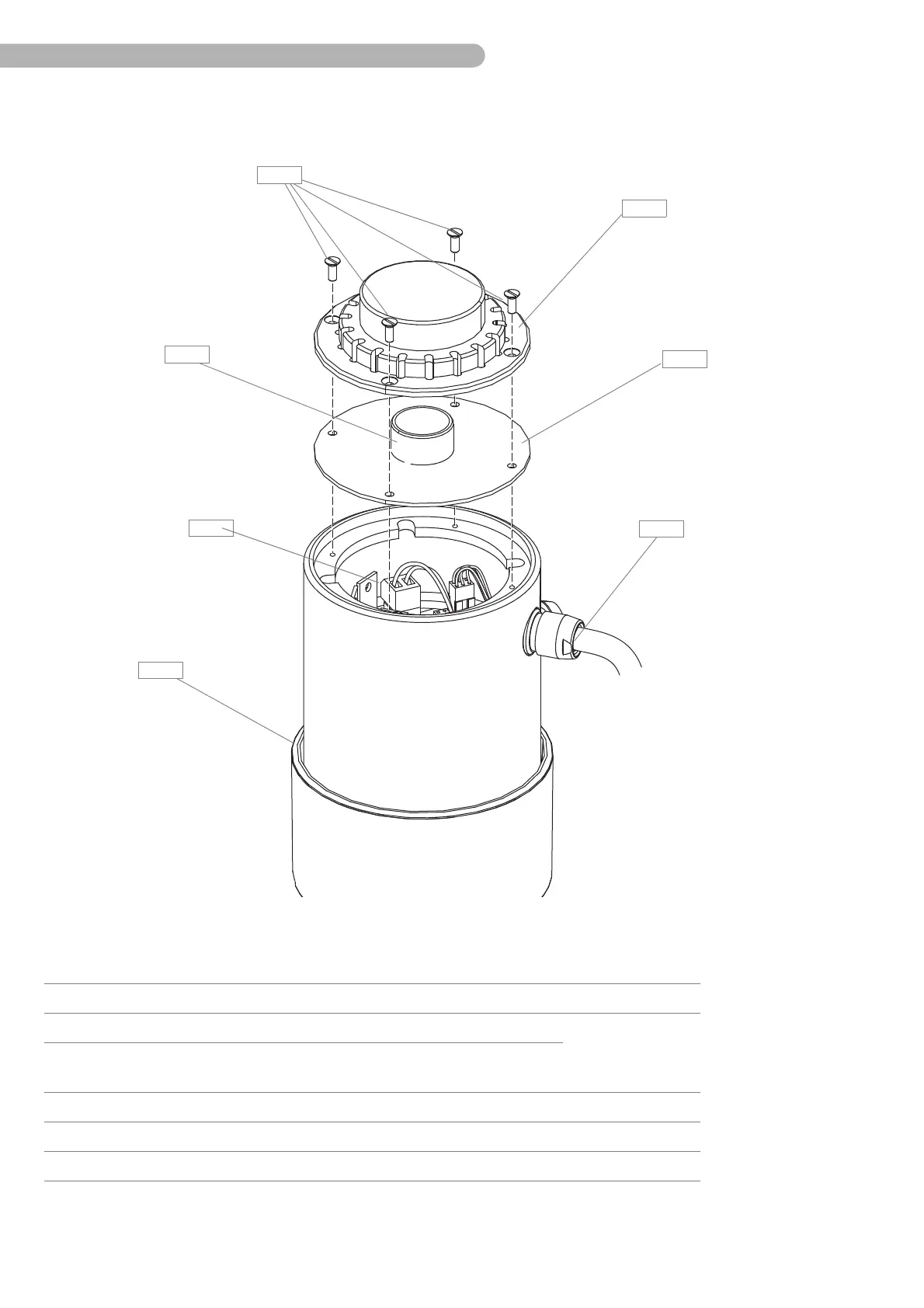

Fig. 7: Module overview - Drive unit
B 2
B 4
B 1
B 6
B 7
B 3
B 5
Mod. Item Description Number SP number
B1Drive casing with motor
B2Base plate
see page 50 for
details
B3Splash protection with
B4Slide bearing
B5Motor control board ZPR 9909 A 90-305-185
B6Connecting cable to pump control panel 97-102-615
B7Countersunk head screw (slotted), DIN 963, M3x8
