SCP System • Replacing components
CP_SEM_60-00-00.002 41

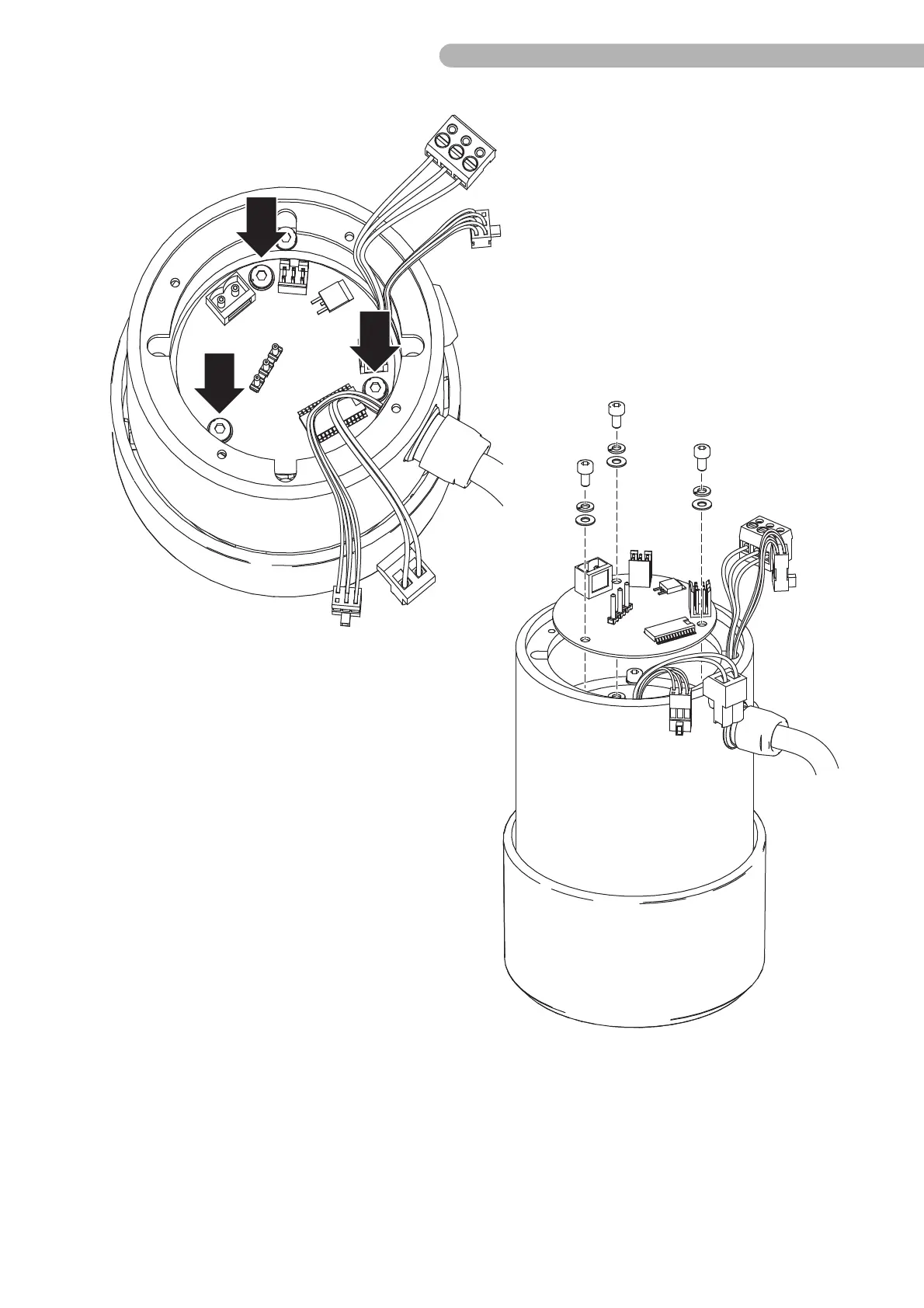

Fig. 26: Dismantling the motor control board (2)
◗ Unscrew the three marked screws (Allen key size 2.5) including the washers.
◗ Carefully pull the board out upwards.
