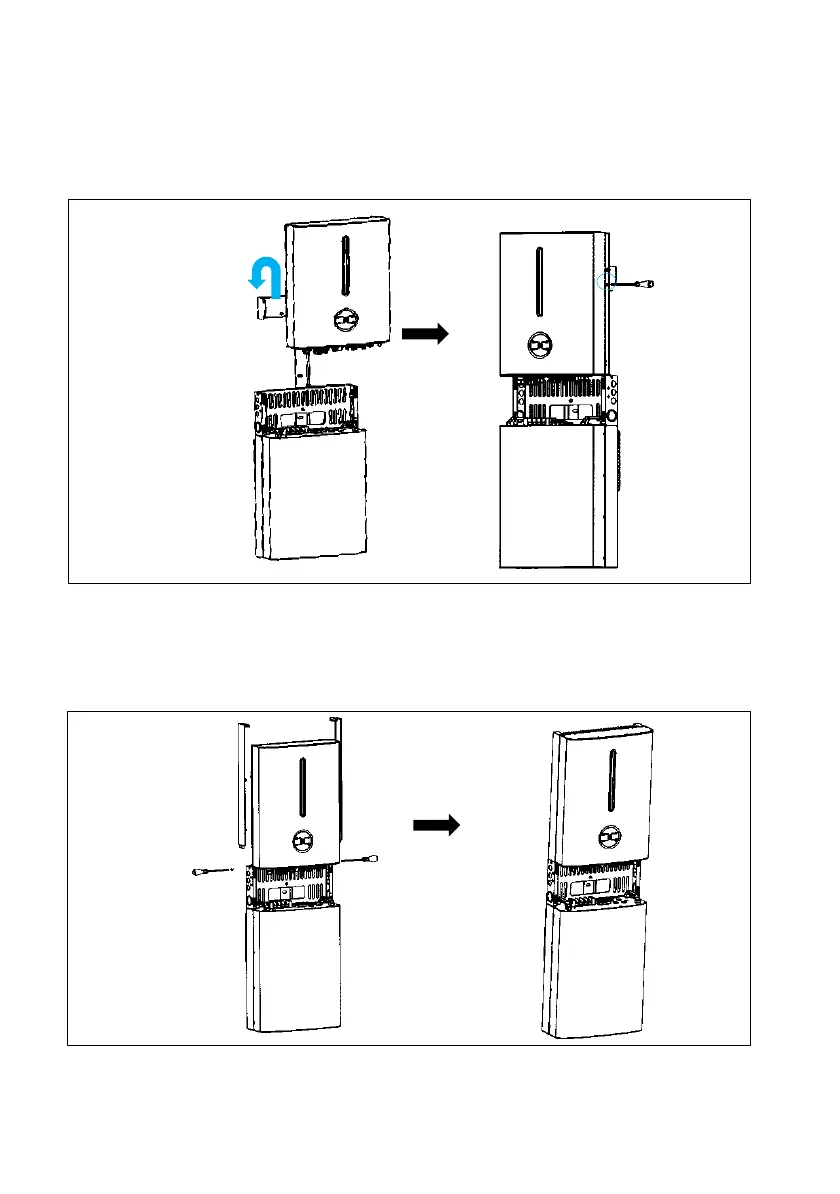

Step 9: Mount the Inverter to the Bracket
• Lift the inverter and slide it down along the wall-mounting bracket to make sure they
match perfectly.
• Use two screw sets to lock both left and right sides.
Step 10: Install the side frames
•Install the left and right frames. The upper part of which should be hung to the
corresponding holes of the inverter, and the lower part should be inserted into the middle
cover bottom. Then tighten them with M5 screws.
