25

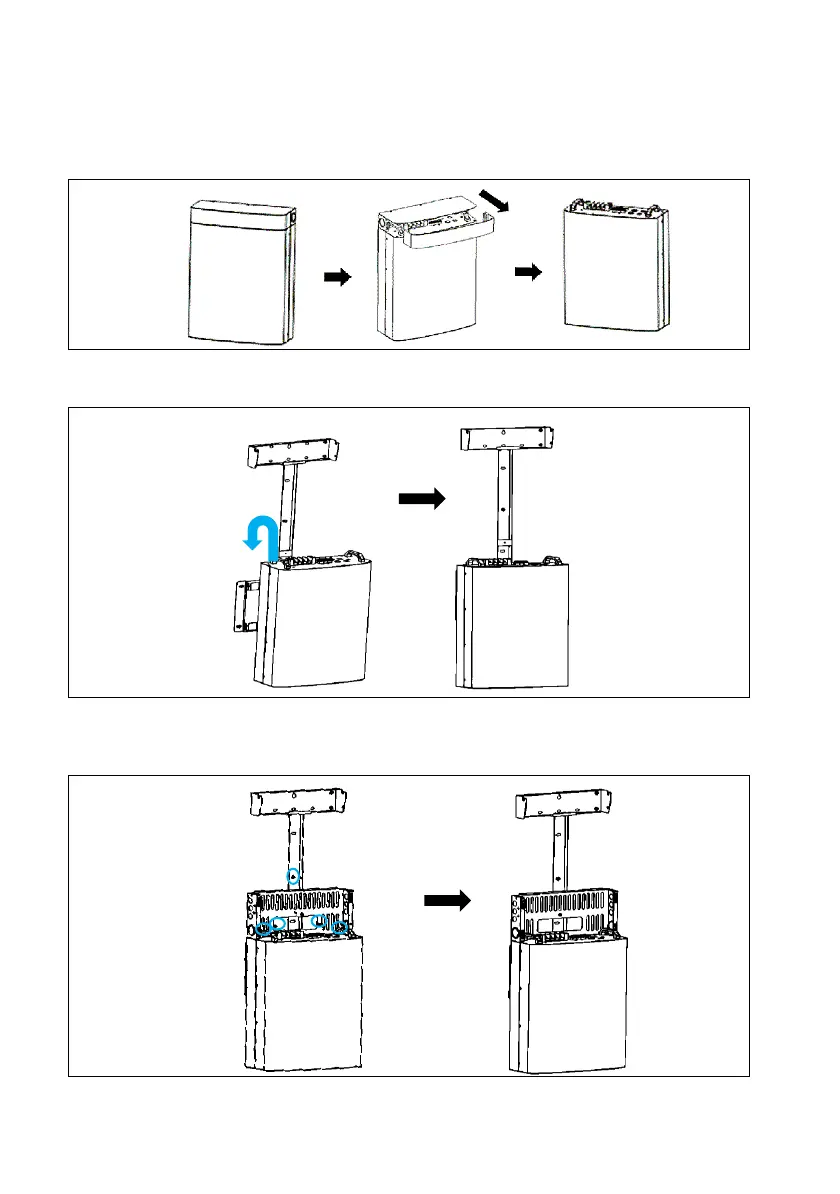

Step 6: Remove the upper cover of the Battery if needed
•Pull out the front cover of the wiring area, then loosen the screws on the top cover to
remove the upper cover of the battery.
Step 7: Mount the battery on the Bracket
•Lift and hang the battery to the battery-bracket.
Step 8: Install the bottom of middle cover kit to the Bracket
•Install the bottom of middle cover kit to the all-in-one bracket and tighten the screws
(M5*5).
To Next Page
