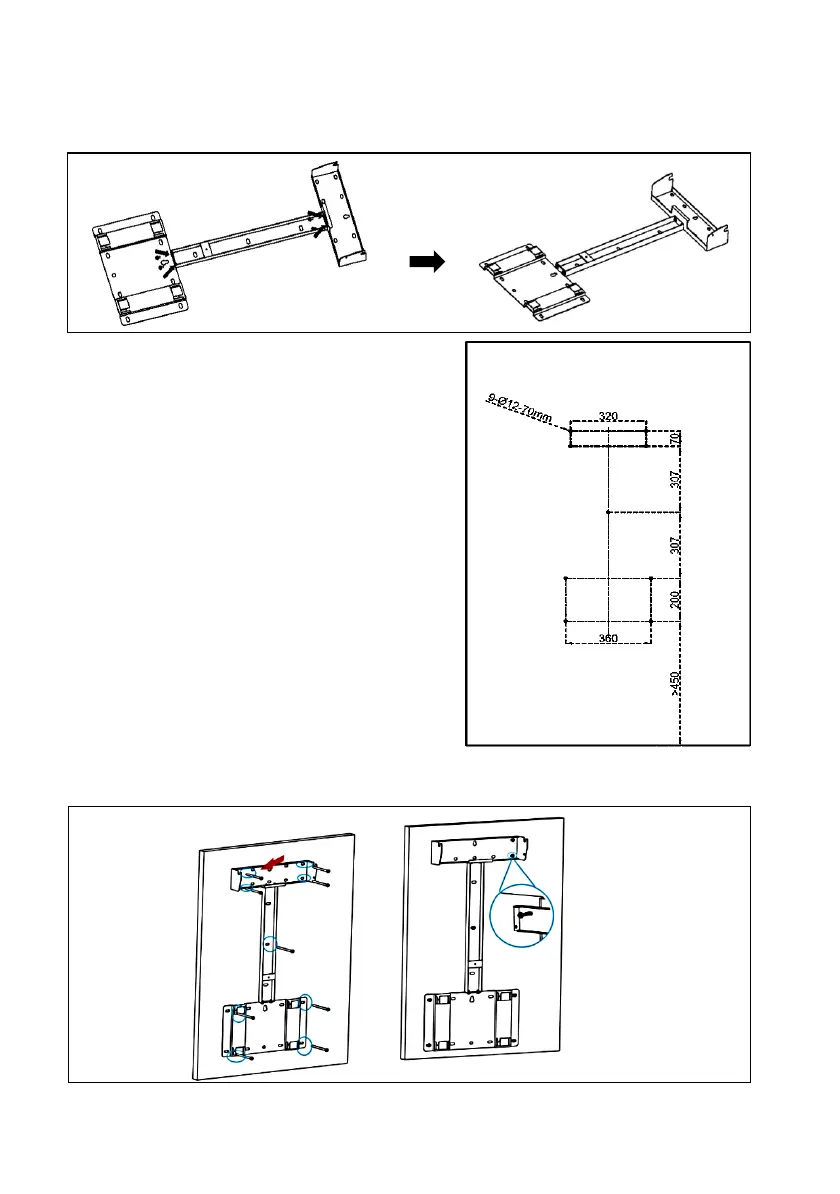

Step 3: Assemble the All-in-one Mounting Bracket
• Assemble the All-in-one Mounting Bracket with 4 screws as shown below.
Step 4: Anchor All-in-one Mounting Bracket
• Determine the positions for drilling holes using the
marking-off template, and then mark the positions
with a marker.
• The height of the holes from the ground should be
≥ 450mm
• Drill holes with driller, make sure the holes are
deep enough.
Step 5: Secure the All-in-one bracket on the wall
• Fix the All-in-one bracket to the wall with 9 expansion bolts.
