5.2.2 Mounting the All-in-one System

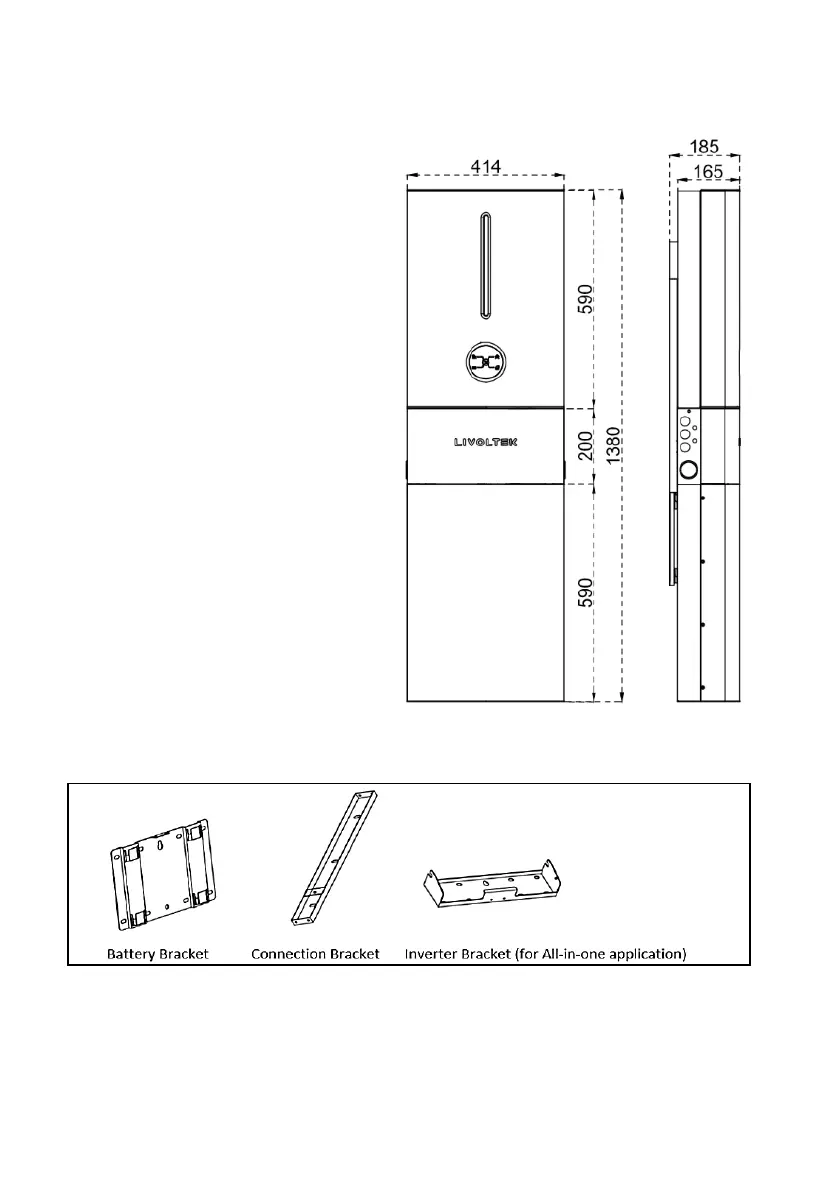

Step1: Choose a location
• Choose an appropriate location capable
of supporting the full weight (>90kg) and
height of All-in-one system.
Note:
• It is recommended to install the
inverter in a suitable location which
offers easy and safe access for
service and maintenance.
• Do not install the unit near or on
flammable surfaces.
• Mount the unit tightly on a
solid/smooth surface.
Step 2: Take out the Brackets
• Open the packages of battery and middle cover kit respectively, then take out the wall-
mounting brackets.
Note: The inverter-bracket for all-in-one application is not as same as the split one, please
leave the split bracket and expansion bolts in the inverter’s package when you want to install
the all-in-one system).
