6.9.2 Smart Meter Connection (Optional)
When customer needs to use meter to monitor the energy flow, the meter terminal connection
steps are as follows:
• Make sure AC cable is totally isolated from AC power before connecting Smart Meter.
• One Smart Meter can only be used for one hybrid inverter.
• Normally the smart meter should be placed in or near the grid distribution box right after the
billing meter.
• Please use the smart meter cable in the accessory box for communication.

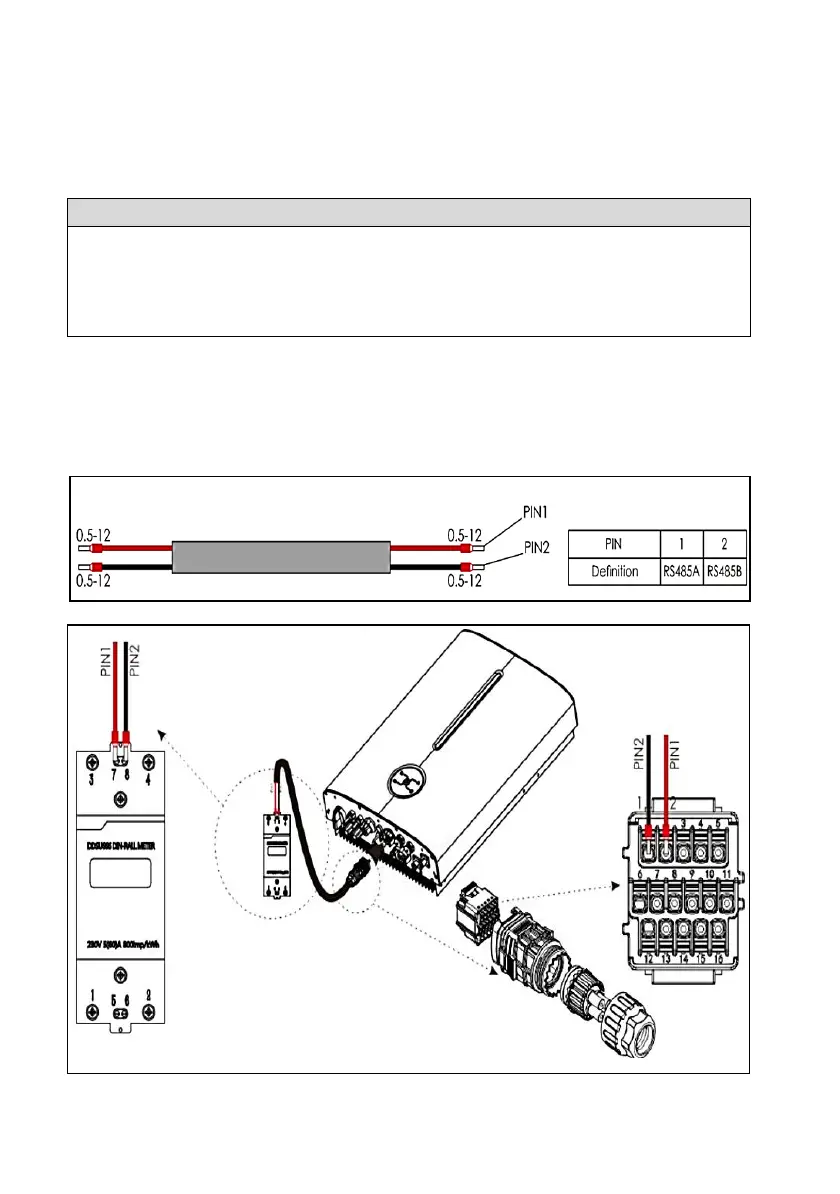

Wiring Connection Procedure：
Step 1: Connect the signal cable to the signal cable connector.
Step 2: Connect the signal cable connector to the Multi COM port.
Step 3: Secure the signal cable connector
Meter Connector Pin Definition
