23 Connections LZE-V

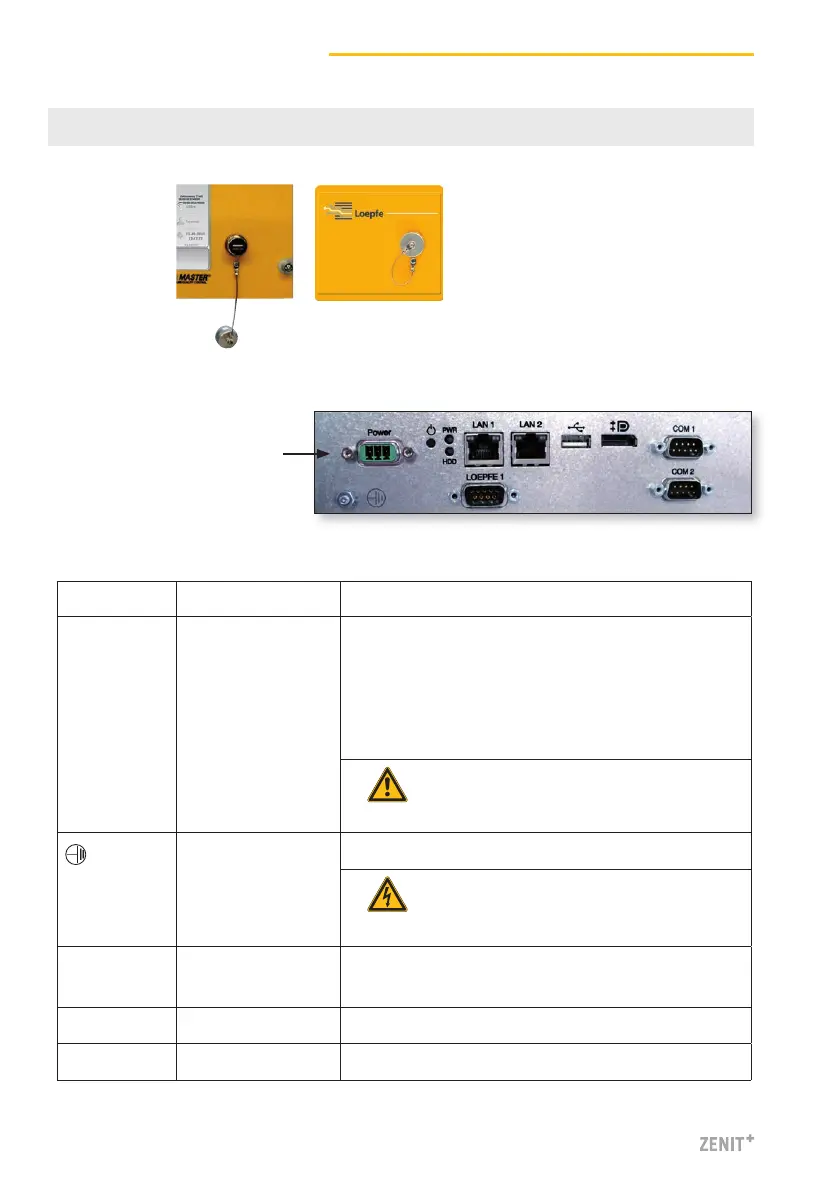

Front
USB interface (USB port) for import /
export of settings and data as well as
screenshots.
A removable cap protects the USB
interface from dust and humidity.
Rear
24 V DC
-
+
Marking Type Description
Power Sub D PSC Power supply 24 V DC
Contact 1 ( + ) 24 V DC
Contact 2 not connected
Contact 3 (
–) 0 V DC
ATTENTION
Only 24 V DC may be supplied to this con-
nection!
Threaded connection Protective ground
DANGER
This separate grounding point must be
connected with the protective ground!
LOEPFE 1 Sub-D
9-pole connector
Connection of Loepfe 2-wire bus (L2B)
PWR LED green / red Power supply OK
HDD LED red Compact-flash drive active
