Individual 40-55 - 142 -
User guide

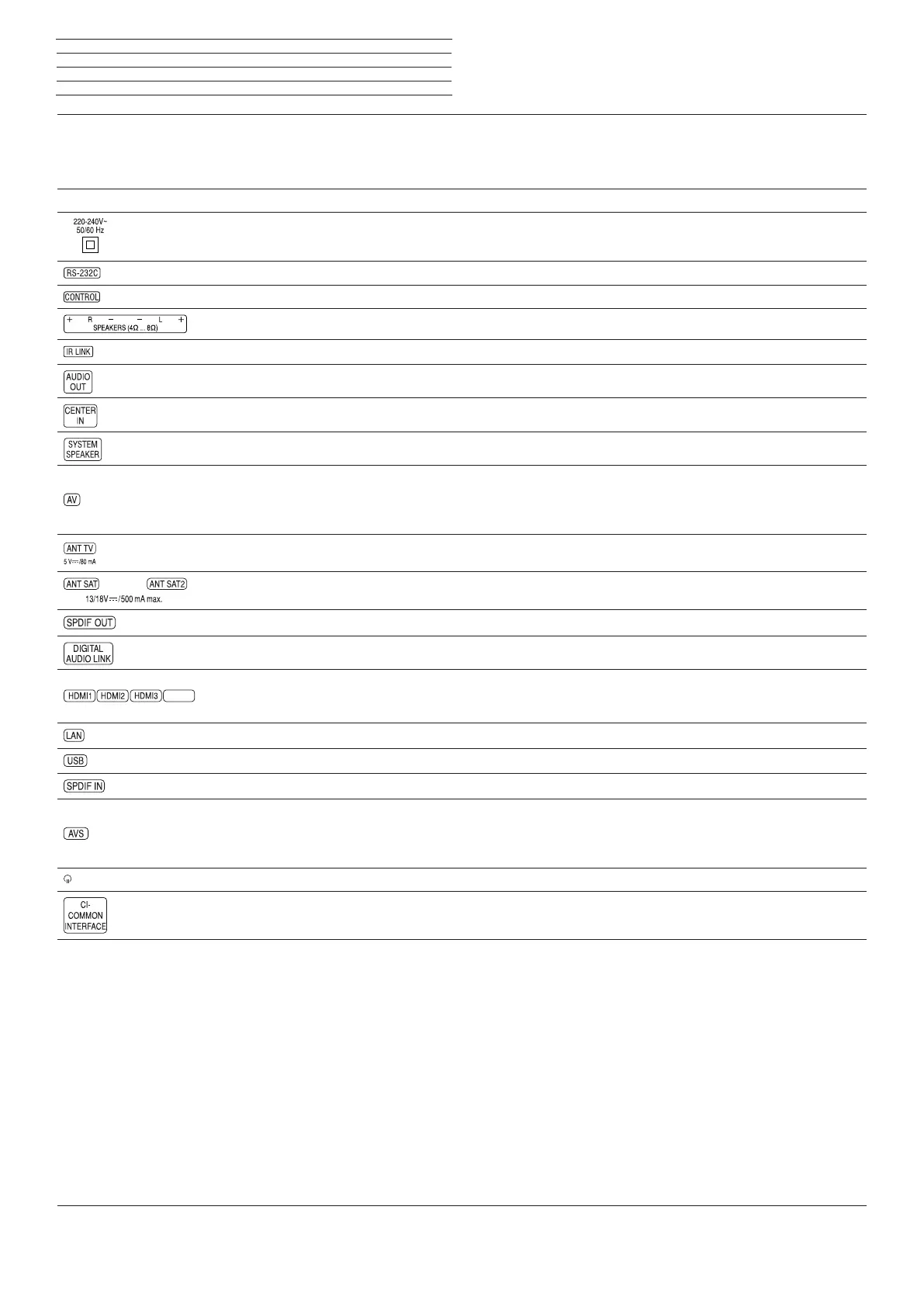

Function of the connections
The following table shows the name, type and function of the ports.
Designation Type Function / Signal
Mains socket 220-240 V ~ 50 / 60 Hz Supply voltage
RJ12 Data I/O: serial interface
Mini-DIN Rotating stand control (Positioning accuracy 1.5°)
Clamps (4x) Speaker left / right + (red) / - (black)
Jack 3.5 mm Connection for IR station
Jack 3.5 mm Audio OUT: analogue audio output L / R
Cinch (black) Audio IN: max. 2Vrms: Centre audio input (analogue)
10-pole connector Loewe system speaker
Mini AV
Video IN:
Audio IN:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
IEC socket 75 Ohm / 5 V / 80mA:
Antenna (analogue) / Cable (analogue) / DVB-T/T2
/ DVB-C
F socket (2x) 75 Ohm / 13/18 V / 500mA: ANT-SAT DVB-S/S2
Cinch (orange) SPDIF OUT: Digital audio output
RJ-45 Audio OUT: Multi-sound (digital)
HDMI4
HDMI type A (4x)
Digital Video/Audio IN
(HDMI1, HDMI2, HDMI3,
HDMI4):
Digital video and audio
RJ-45 Ethernet / Fast Ethernet: Network interface
USB type A (3x) USB 2.0 (max. 500mA): Multimedia files/software update
Cinch (orange) SPDIF IN: Digital sound input
Mini AV
with S-video adaptor:
with VGA adaptor:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
PC/STB video signal
(1
Y/C (S-VHS/Hi 8)
Jack 3.5 mm Headphones 32–200 Ohm
CI Slot (2x) Common Interface: Slot for CA module
n
Technical Data
(1
For compatible picture signals, see table on page 144.
