3.2.5. System Configuration (Example)

The following figure illustrates the interface connections of an example

configuration. This example configuration consists of:

1 LogicS-3 control box

3 Motor drives (hidden in the table-legs)

Handset HSU-MDF-4F2-LD

1 Squeeze line

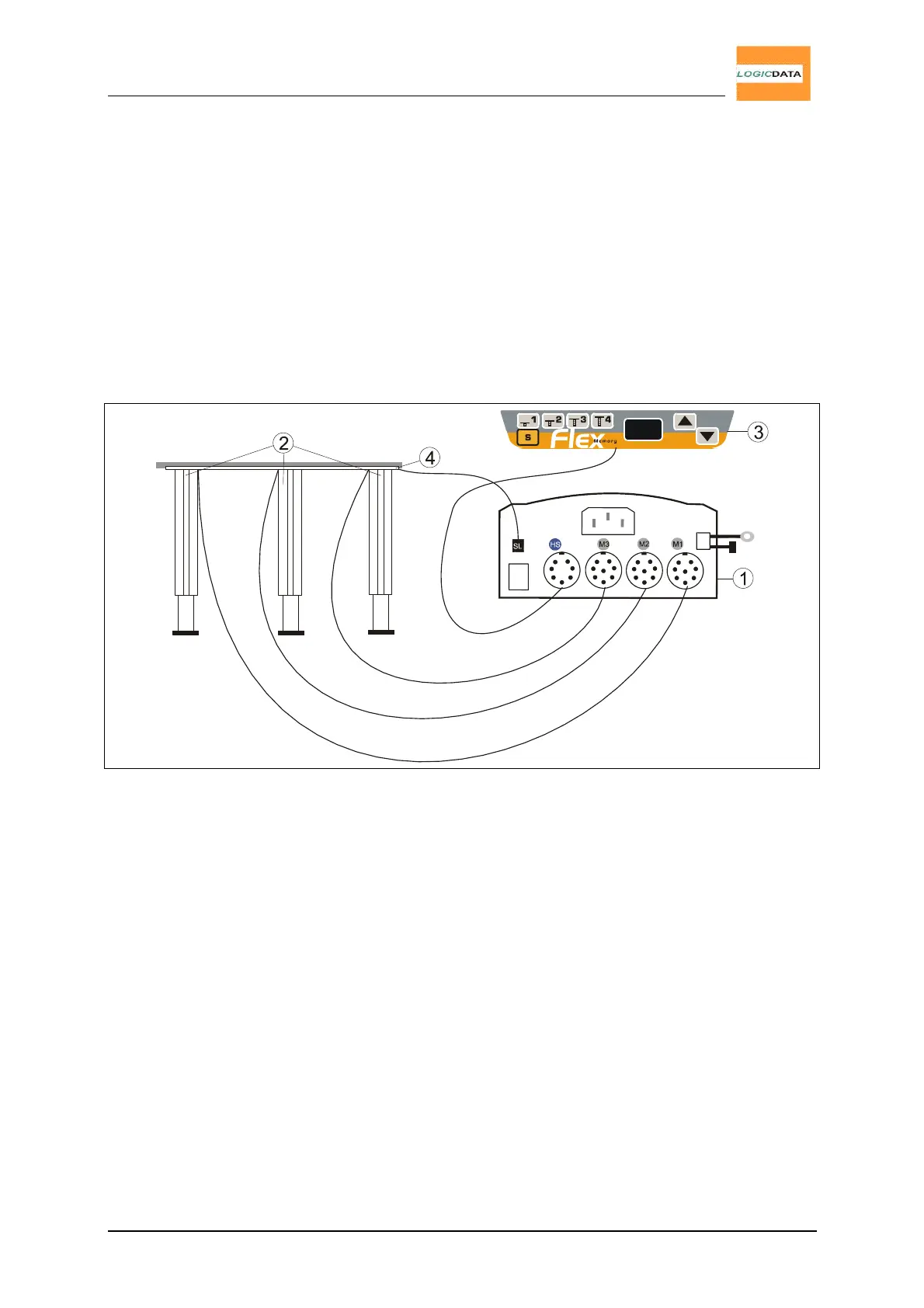

Fig.9 – Example Configuration
