TR700 Instruction Manual
59
L output = the gross display value ≤L comparison set value;
LL output = the gross display value ≤LL comparison set value.
If the net weight is displayed,
HH output = the net display value ≥HH comparison set value;
H output = the net display value ≥H comparison set value;
L output = the net display value≤ L comparison set value;
LL output = the net display value≤ LL comparison set value.
10.3. Analog Output
10.3.1. Specification
Resolution：1/50000 Accuracy：0.5%FS
Table 10-1
Output 0～20mA 4～20mA 0～5V 1～5V 0～10V
Load resistance Max
500Ω
Max 500Ω Min
10KΩ
Min
10KΩ
Mix 10KΩ
The output voltage/
current when the display
value is
Zero.
0mA 4mA 0V 1V 0V
The output voltage/
current when the display
value is
the max capacity.
20mA 20mA 5V 5V 10V
10.3.2. an Example of Output
Capacity：2000 Output：4~20mA

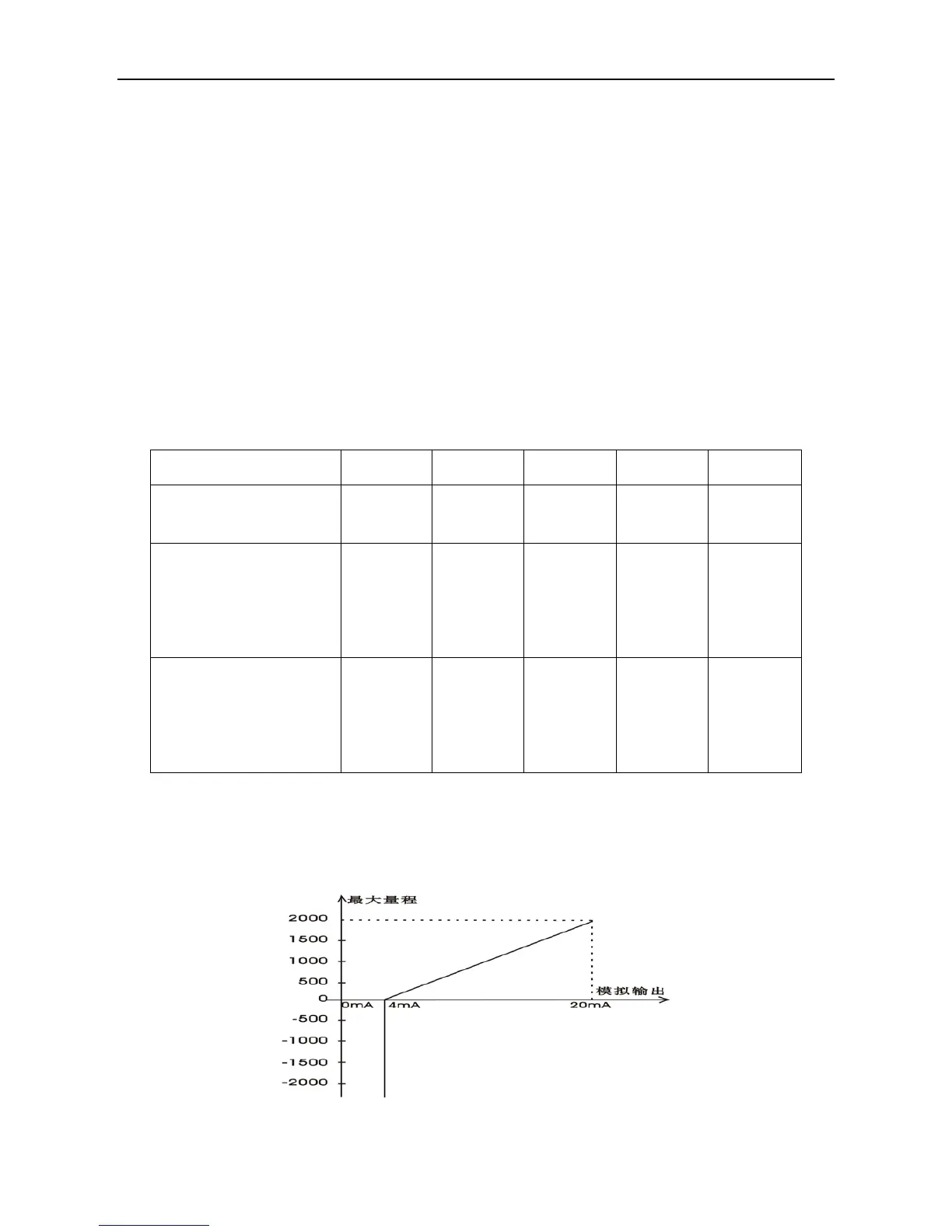

Chart 10-3 Diagram of Analog Output
