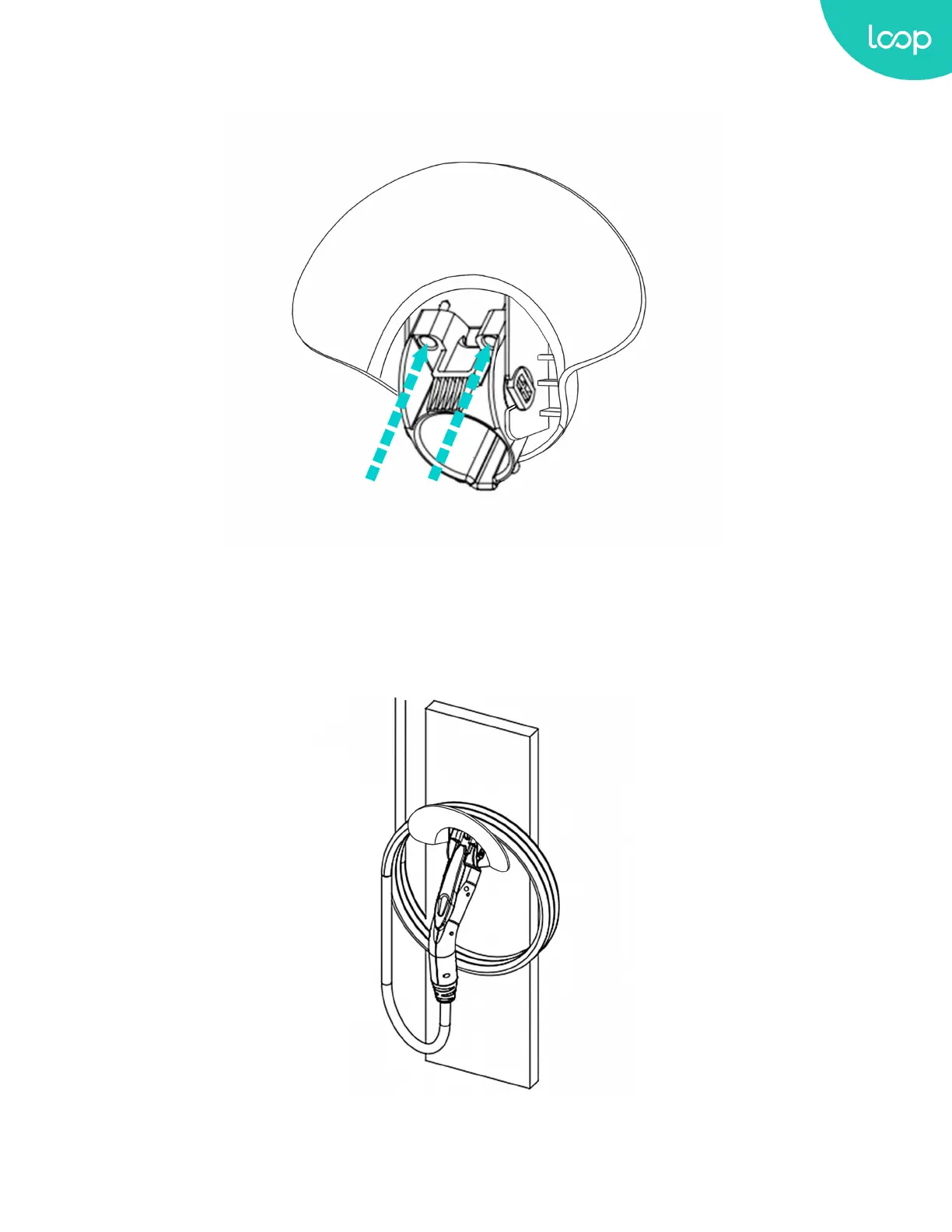

5. Keep the holster in this state and tighten screws completely.
Figure 3-17 Lock screws
6. Place EV charging connector into the holster and wrap charging cable around the saddle.
Figure 3-18 Place EV charging connector and cable.
