LOOP EV-Flex EVSE - Install the Connector and Cable Holster

3.4. Install the Connector and Cable Holster

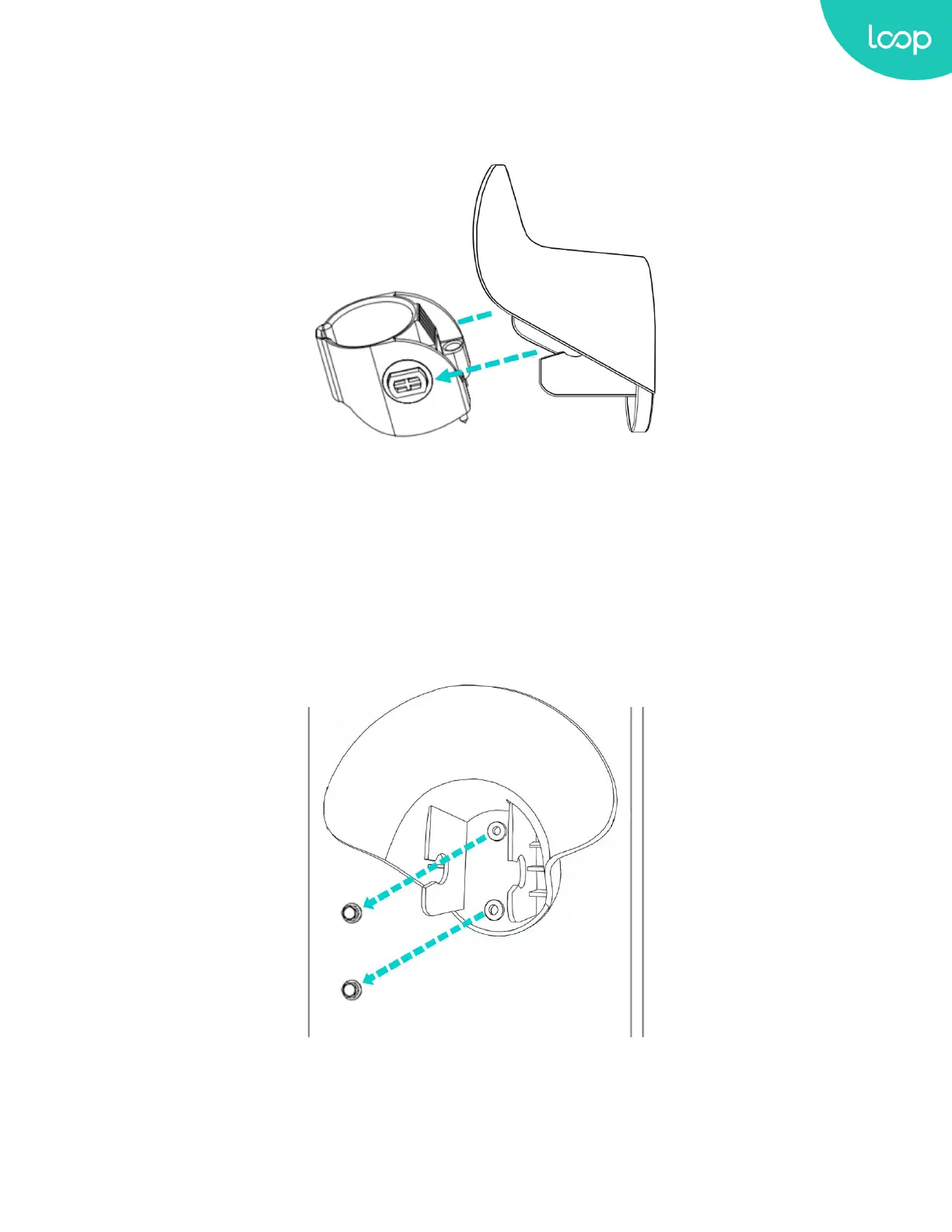

1. Separate the holster from hook.
Figure 3-13 Loop EV-Flex EVSE and mounting bracket
2. Fasten the saddle on the wall with appropriate screws.
Figure 3-14 Secure the saddle
16
Loop EV-Flex
TM
EVSE
EVS-32A-L2-001 (R-Model)
v.20.9.4
www.evLoop.io
