11. Mount Loop EV-Flex EVSE onto mounting bracket and lock the screw.
11.A. Put the Loop EV-Flex EVSE on the mounting bracket.
11.B. Fasten Loop EV-Flex EVSE on mounting bracket by M4 screw and screw washer.
11.C. Please refer to the following torque.
Screw Torque
M6 16 kgf.cm 13.88 lb-in

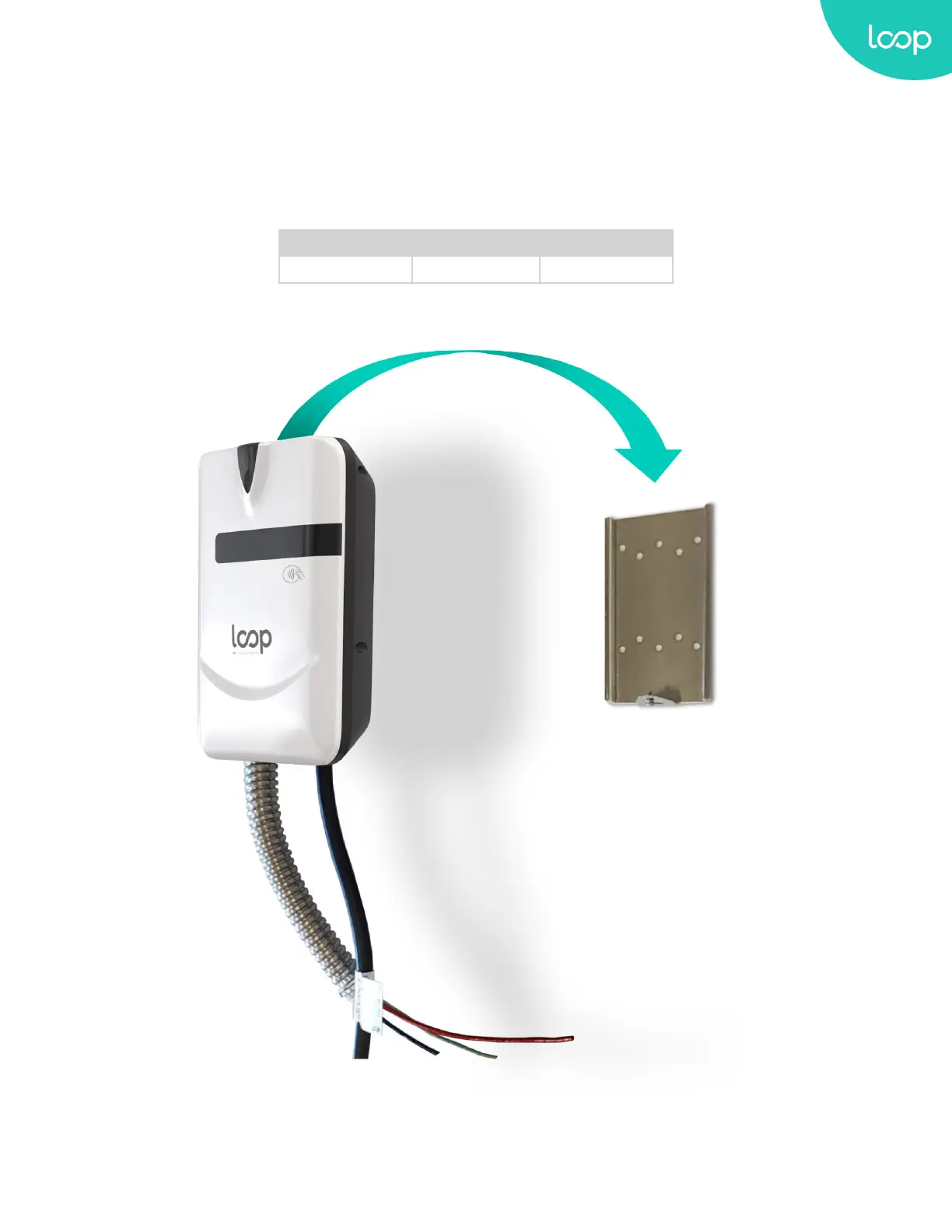

Figure 3-12 Loop EV-Flex EVSE and mounting bracket
