10. Secure the main body mounting bracket to the wall with appropriate screw.
Follow applicable accessibility requirements for the mounting position. The unit shall be stored or located at a
sucient height. For indoor site, it is not lower than 18” (450 mm) and not higher than 4” (1.2m). For outdoor site, it is
not lower than 24” (600 mm) and not higher than 4” (1.2m). Refer to Article 625, NEC.

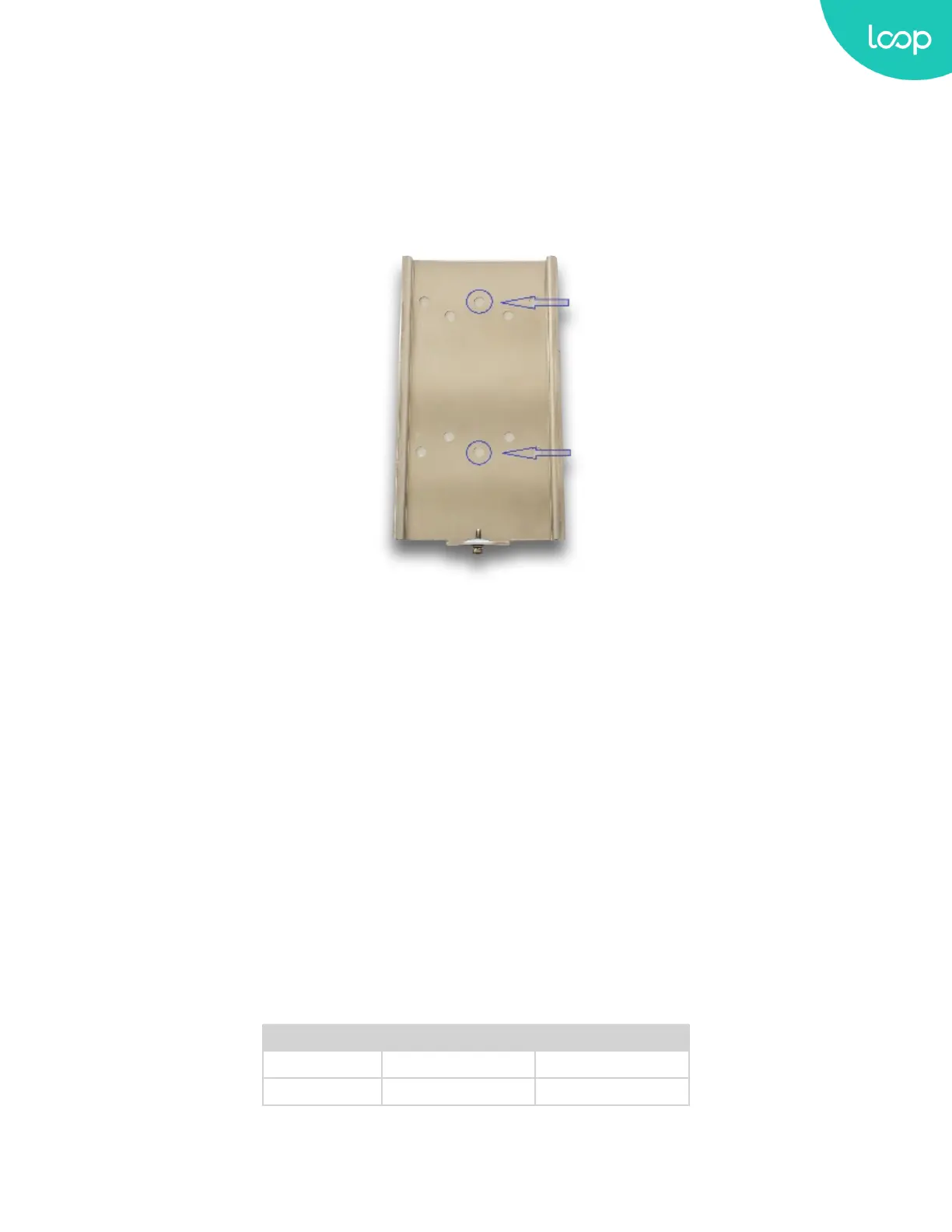

Figure 3-11 Fixing mounting bracket
The mounting bracket has ten screw holes. If only two screws be used to fasten the mounting bracket, the screws
should pass through the middle two screw holes of the mounting bracket. The other screw holes are reserved for
the user.
Screw suggestion:
a. For masonry walls, use M6 mechanical screws. (Commercially available)
b. For nished walls supported by wood studs, use 1/4”or M6 tapping screws.
(Commercially available)
c. Please use following torque force.
Screw Torque
M6 25 kgf.cm min 21.7 lb-in min
#12 25 kgf.cm min 21.7 lb-in min
14
