8. Prepare approximately 25 in. long 10 AWG ground wire, and 8 AWG for the black and red wire.
Use vinyl insulated locking fork terminals, 12-10 AWG, stud size 10. Using the appropriate tool, clamp the wire terminal to
the copper wire. For non-insulated terminals, use heat shrink tube to cover the non-insulated portion of the terminal.
’

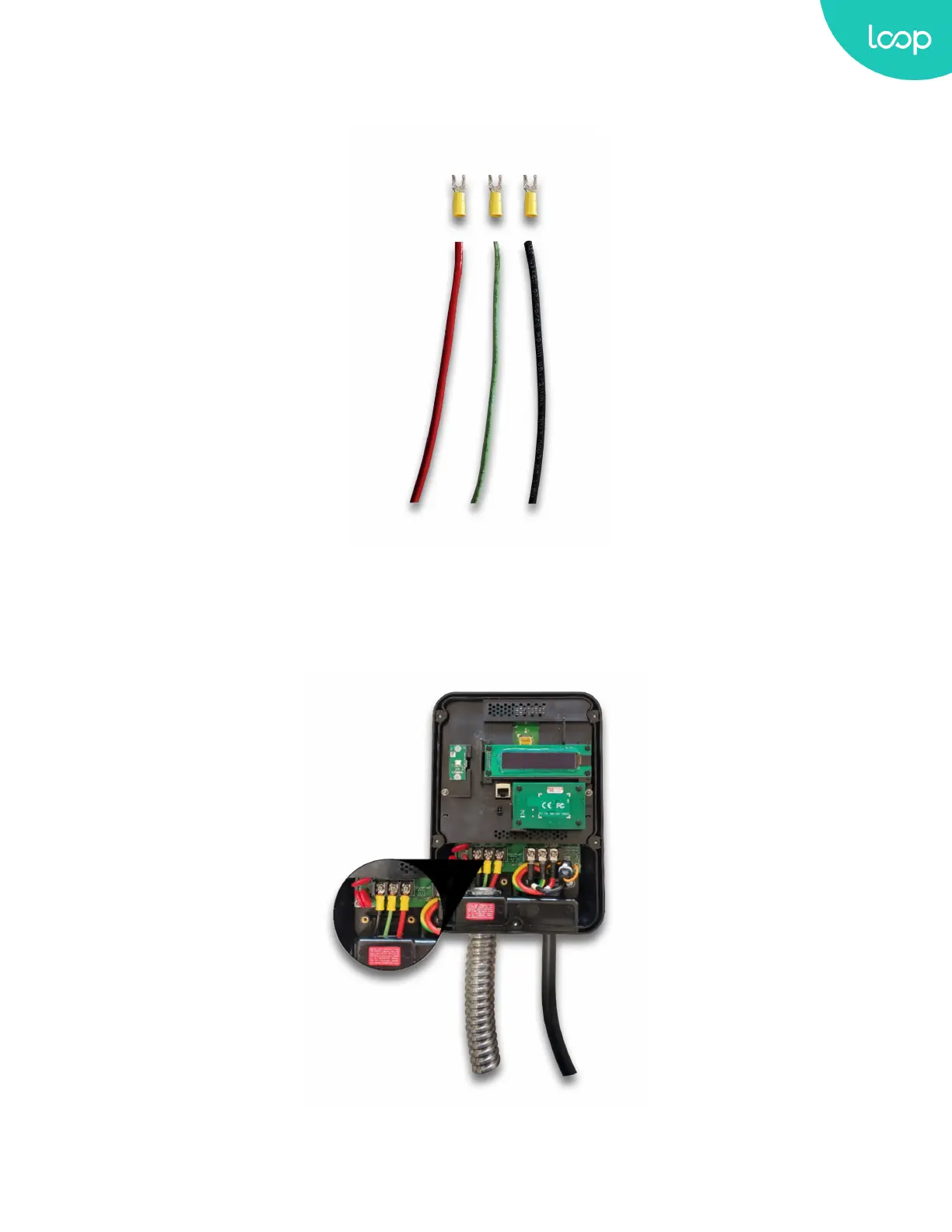

Figure 3-9 25 in. conductors
9. Insert the wire end passing through the conduit and insert them into the input wiring hole. (Use Red wire for L1,
Black wire for L2, Green-yellow wire for G). Attach the copper wire on the corresponding terminal block.
Figure 3-10 conductor termination
