LOOP EV-Flex EVSE - Physical Installation and Mounting

3.3. Assembly and Installation of the Charging Station

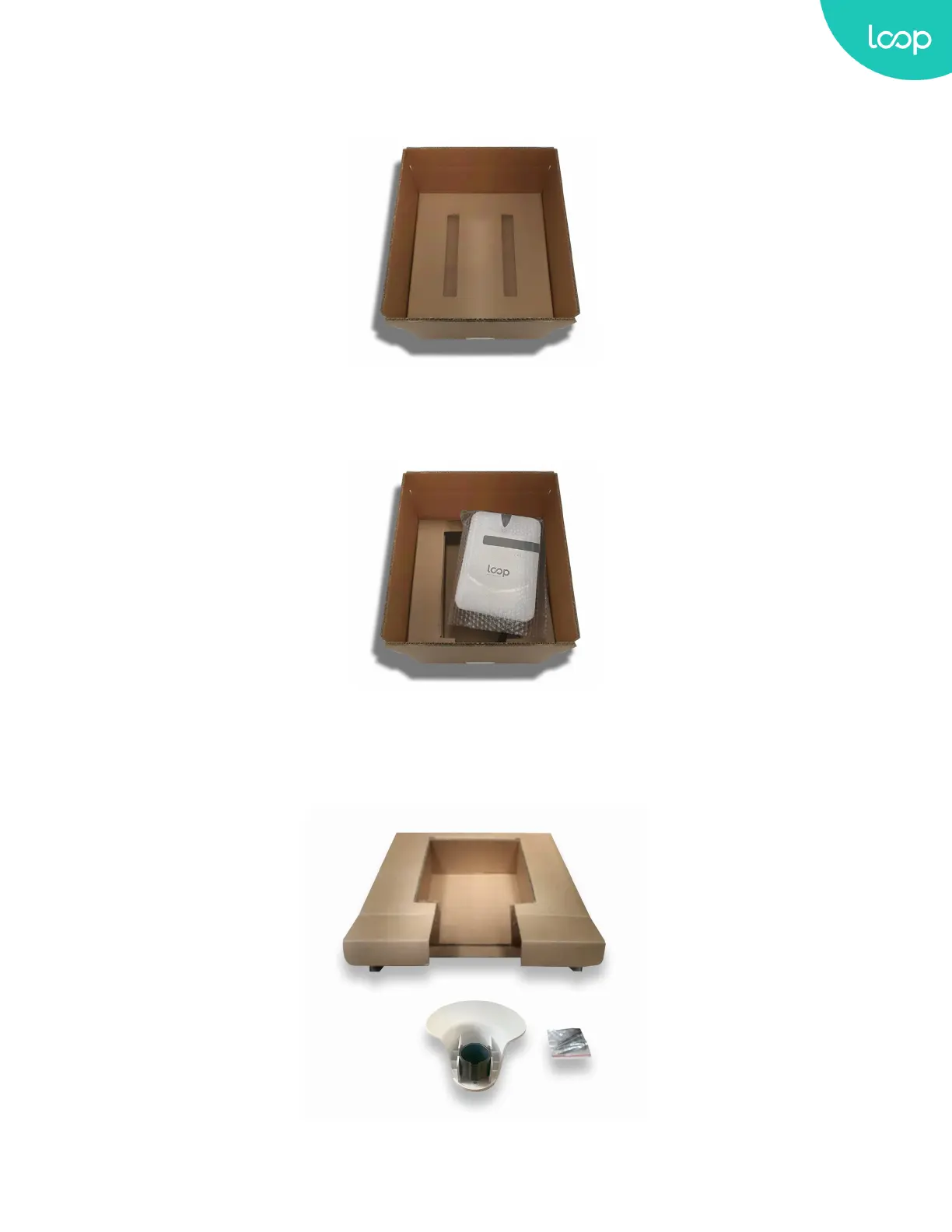

1. Open the carton and remove the upper partition.
Figure 3-1 Opening the carton
2. Take out the Loop EV-Flex EVSE and upturn middle partition. The charging plug is in the bottom of the package.
Figure 3-2 Take out the Loop EV-Flex EVSE
3. Remove the holster assembly placed inside the right of the middle partition.
Figure 3-2 Accessories inside the middle partion
10
Loop EV-Flex
TM
EVSE
EVS-32A-L2-001 (R-Model)
v.20.9.4
www.evLoop.io
