Replacing the Hard Drive21

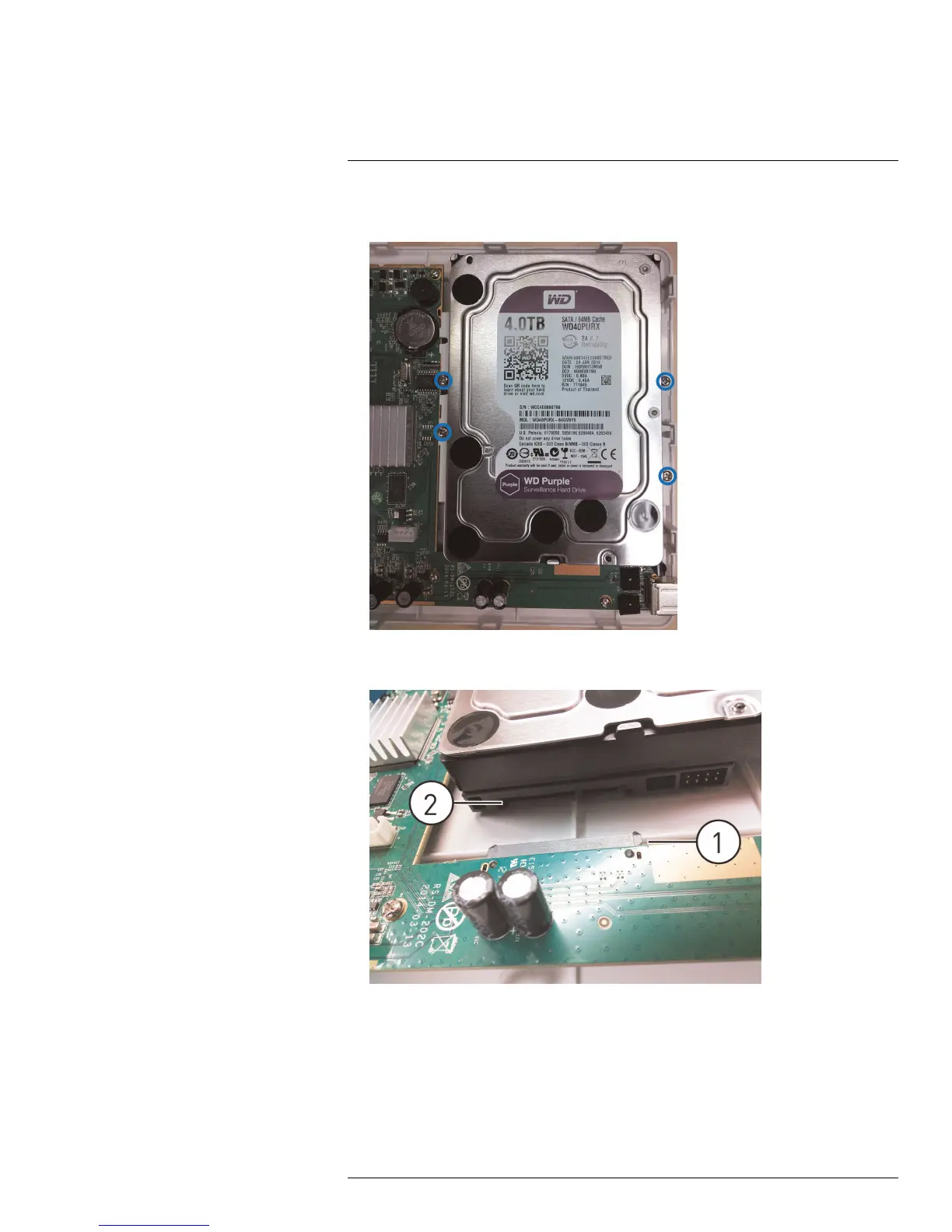

3. Using a Phillips screwdriver (not included), remove the screws (x4) from the plastic

brackets on either side of the hard drive.

4. Carefully slide the hard drive back until it is clear of the SATA connector and lift it out of

the DVR.

4.1. DVR SATA connector

4.2. Hard drive SATA ports

#LX400066; r. 1.0/26388/26388; en-US
