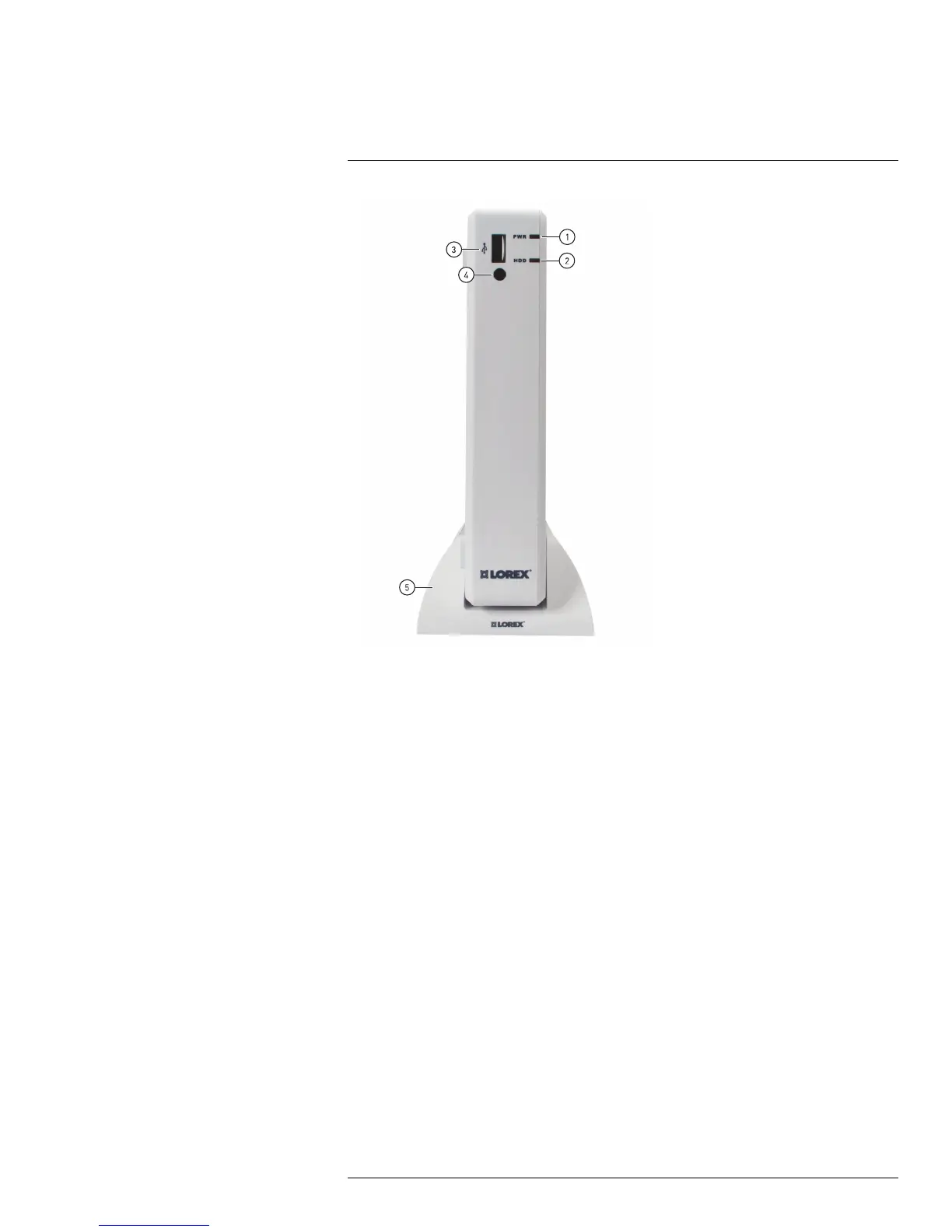

Front Panel (LH050 Series)

1. PWR LED: Power indicator LED.

2. HDD LED: Hard disk activity LED.

3. USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data backup or

firmware updates.

4. IR Sensor: IR receiver for the remote control.

5. DVR Docking Stand: Holds the DVR in vertical position. For details on attaching or removing the

docking stand, see 6 Basic Setup (LH050 Series), page 8.

#LX400066; r. 1.0/26388/26388; en-US

Default Chapter5
- Table of Contents5
1 Important Safeguards9
- General Precautions9
- Installation9
- Service11
- Use11
2 Features12
3 Getting Started (LH050 Series)13
4 Front Panel (LH050 Series)14
5 Rear Panel (LH050 Series)15
6 Basic Setup (LH050 Series)16
- Step 1: Connect the DVR Docking Stand (OPTIONAL)16
- Step 2: Connect Wireless Cameras to the DVR16
- Step 3: Connect the Mouse17
- Step 4: Connect the Ethernet Cable17
- Step 5: Connect the Monitor18
- Step 6: Connect the Power Adapter and Turn on the DVR18
- Step 8: Upgrade Firmware to Latest Version (if Available)18
- Step 9: Verify Camera Image19
- Step 10: Set the Time19
- Default System Password & Port Numbers20
  - Lorex Stratus Connectivity20
- Quick Access to System Information20
7 Mouse Control21
8 Remote Control22
9 Using the On-Screen Display24
- Using the Menu Bar24
- Using the Virtual Keyboard and Mini-Keyboard25
10 Setting the Date and Time26
- Configuring Daylight Savings Time (DST)27
- Using a NTP Server to Set Your System Time27
11 Recording29
12 Playback30
- Playing Back Recorded Video30
- Quick Playback33
13 Backup35
- Backing up Video35
- Using Video Clip Backup37
- Viewing Backed up Video39
14 Managing Passwords40
- Changing Passwords40
- Adding Users41
15 Using the Main Menu44
- Display45
- Record49
  - Configuring Pre-Recording Settings49
  - Configuring the Recording Schedule (Continuous, Motion)49
- Search50
  - Using the Event Search50
  - Using the Log Search52
- Network53
- Alarm57
  - Configuring Motion Detection57
- Device58
  - Formatting the Hard Drive58
  - Configuring Overwrite58
- System60
- Advanced64
16 Connecting to Your DVR over the Internet on PC or Mac72
- System Requirements72
- Step 1 of 3: Connect Your DVR to Your Router72
- Step 2 of 3: Obtain the Dvr's Device ID73
- Step 3 of 3: Connect to the DVR over the Internet74
17 Using the Pc/Mac Client Software77
- Changing Viewing Modes78
- Taking Screen Shots78
- Recording Video78
- Showing / Hiding Channels79
- Viewing the Bit Rate79
- Changing the Save Directory of Screenshots or Recorded Video80
- Changing the Format of Recorded Video (PC Only)80
- Video Playback81
  - Video Playback Controls83
- Configuring Display Settings84
- Configuring Privacy Zone Settings84
- Configuring Recording Parameters85
- Configuring the Recording Schedule85
- Configuring System Recording Quality86
- Configuring Basic Network Settings87
- Configuring the System Substream87
- Configuring Email Notification Settings88
- Configuring DDNS Settings89
- Configuring Motion Detection Settings90
- Configuring Your System to "Beep" During Motion90
- Configuring Hard Drive Recording Mode91
- Configuring the System Time and Date91
- Changing the System's Menu Time out92
- Configuring System User Accounts92
- Viewing System Information93
- Configuring Firmware Upgrades93
- Manually Upgrading System Firmware93
- Restoring Default Settings94
- Configuring Event Settings95
18 Mobile Apps: Accessing Your DVR Using a Mobile Device96
- Supported Apps and Platforms96
- Iphone96
- Ipad104
- Android113
19 Lorex Player 11: Playing Backed up Video on PC123
- Running Lorex Player 11123
- Lorex Player 11 Interface Overview124
  - About the Advanced Config Menu124
- Converting Backed up Video to AVI Files125
20 Lorex Player for Mac: Viewing Backed up Video on Mac127
- Opening Individual Video Files127
- Loading Multiple Video Files127
- Lorex Player for Mac Interface128
21 Replacing the Hard Drive129
- Removing the Hard Drive129
- Installing the Hard Drive131
- Formatting the Hard Drive133
22 DDNS Setup-Access Your DVR Remotely over the Internet135
- Step 1 of 4: Port Forwarding135
- Step 2 of 4: Create a DDNS Account135
- Step 3 of 4: Enable DDNS on the DVR139
- Step 4 of 4: Connect to the Dvr's DDNS Address140
23 Troubleshooting143
24 LH050 Series System Specifications145
25 Notices148
- FCC/IC Notice148
- Modification148
- Rohs148
