Installing the camera
Mounting the LCD Receiver
The LCD Receiver can be setup for use on a tabletop, or mounted to a wall or underneath
a counter or cupboard.

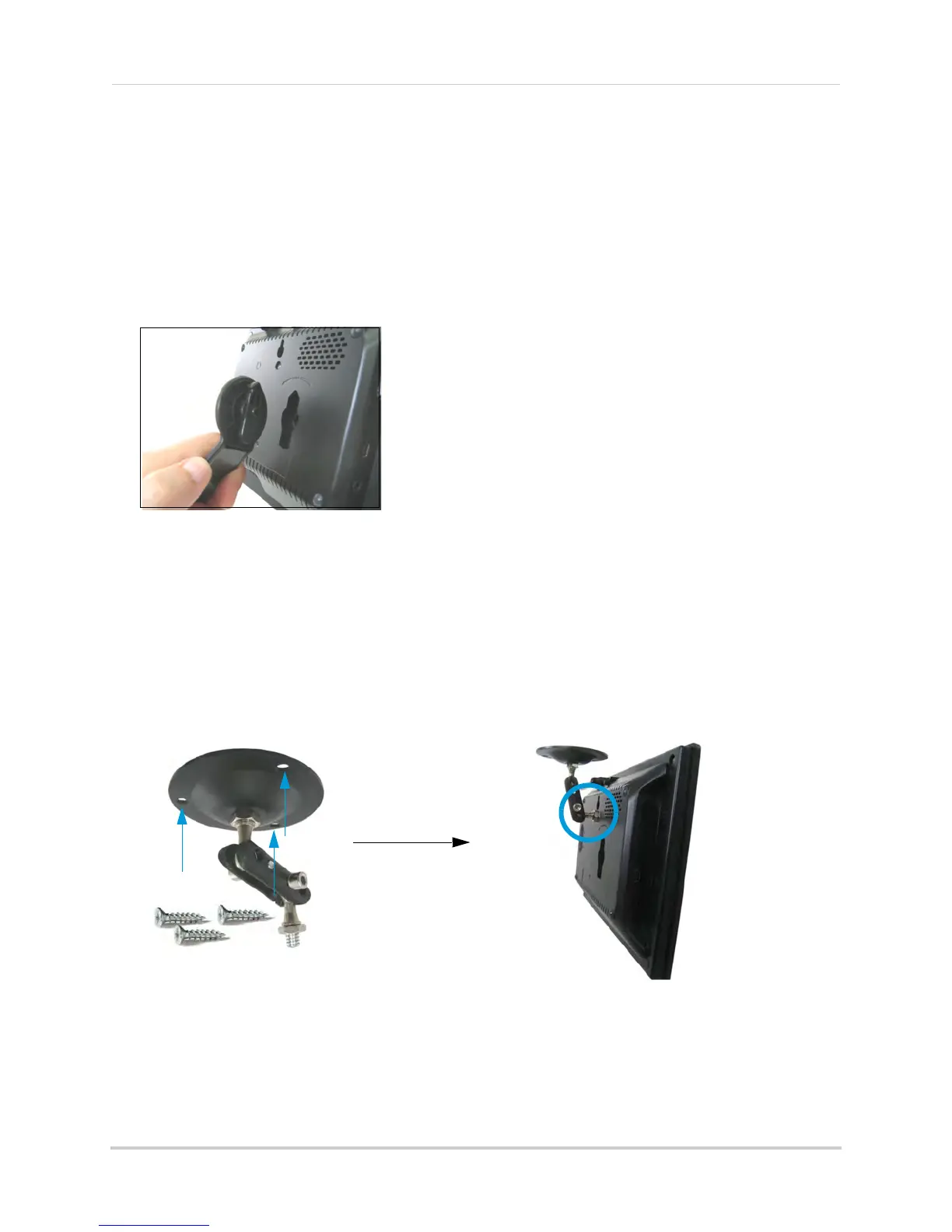

Table Mounting
To table mount the receiver:
1 Attach the Tabletop Stand to the slot on the rear panel and turn counter clockwise until you
hear one
"click." Continue turning counter clockwise to position the LCD receiver as desired
.
Under-the-Counter, Wall, or Ceiling Mounting
1 Select a location to mount the receiver, i.e. under a counter or cupboard, wall or ceiling. The
location should have a clear reception to your camera. Place the mounting stand in the
desired mounting position and mark holes for the screws.
NOTE: Avoid installing in a location which requires the
wireless signal to pass through
cement, concrete, and metal structures. This will reduce the range of transmission.
2 Drill the hol
es, and then mount the stand to the desired surface using the provided screws.
Make sure all three screws are fastened tightly at the connection points.
3 Adjust the antenna on the LCD receiver to allow for proper clearance with your mounting
surface.
4 Attach the LCD receiver to the mounting stand. Adjust the position of the LCD receiver and
tight
en the bolts with included Allen key.
To Next Page
