3. Instruments and Controls

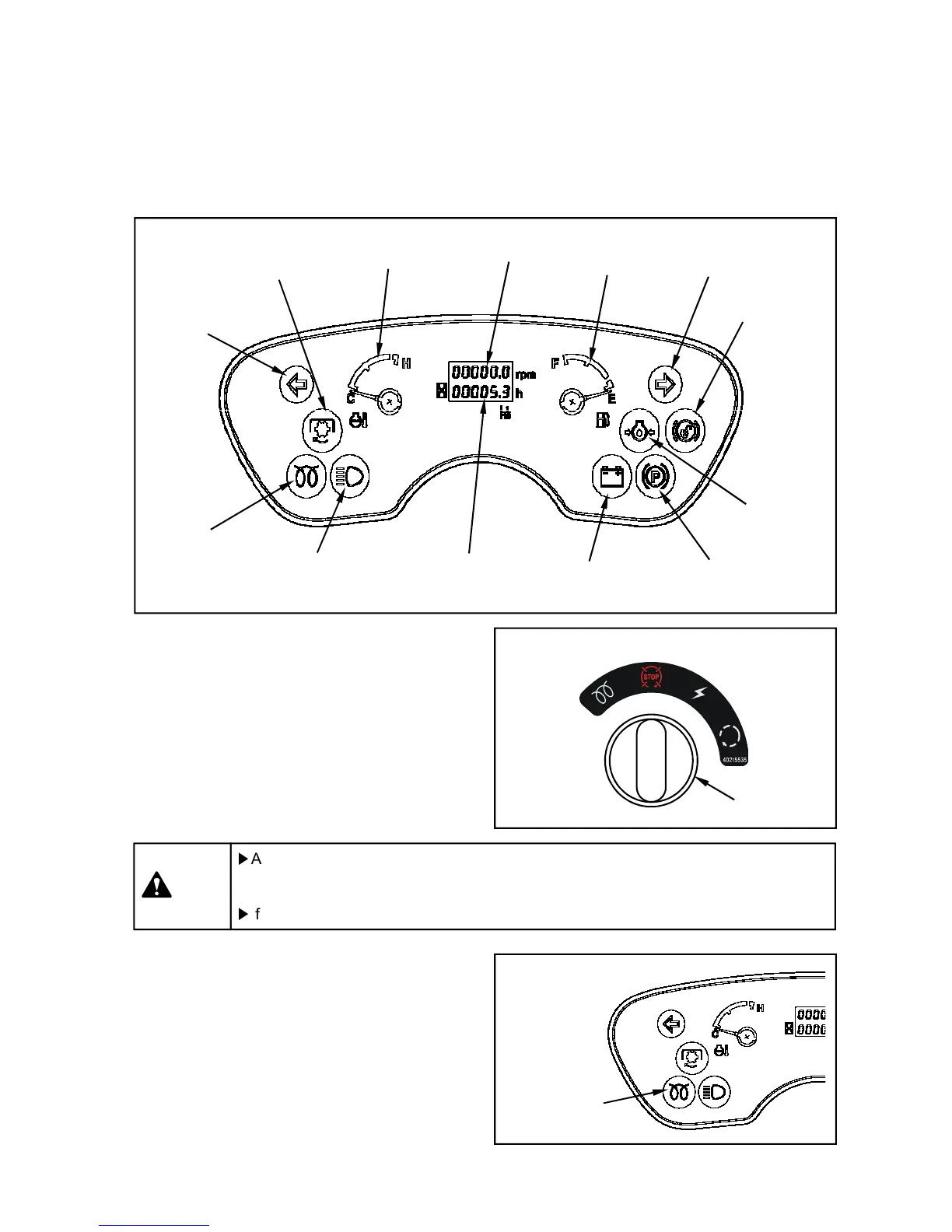

3-1. Instrument panel and Switches
(1) The name of each part
Right turn signal
indicator
Tachometer
PTO operation
indicator
Fuel level
gauge
Engine coolant
temperature gauge
One side
brake indicator
(option)
Left turn signal
indicator
(2) Key switch
“Preheat” – Preheat (Cold start aid)
“OFF” – Engine stops, Power off
“ON” – Power on
“Start” – Engine start up
Parking brake
indicator
High beam
indicator
Battery charging
indicator
Engine oil
pressure
indicator
Cold start aid
indicator
Hour meter
Key switch
Preheat
OFF
ON
Start
3
3 3
3 - 1
(3) Cold start aid indicator
If key switch is turned to “Preheat”, this indicator
shall be “ON”.
If key switch is at the “Start” position, this indicator
shall be “ON” as well.
▶
As soon as engine starts, turn the ignition key to “ON” position immediately. If not, it
may cause damage to starter motor.
▶
If the tractor is not in use, the ignition key should be removed.
Caution
Cold start aid
indicator
