①
①①
①
Hitch
Vertical load : 400kg (882lbs)
Horizontal load : 1600kg (3527lbs)
②
②②
②
Drawbar (option) – with/without clevis
It is used to tow the equipments having 2 axles.
It is available to adjust the length of draw bar
(telescopic type) after removing snap pin and
lock pin in the right figure. After adjusting the
length, assemble the pins correctly.
Insert the hitch pin and snap pin correctly after
attaching/detaching the equipment.

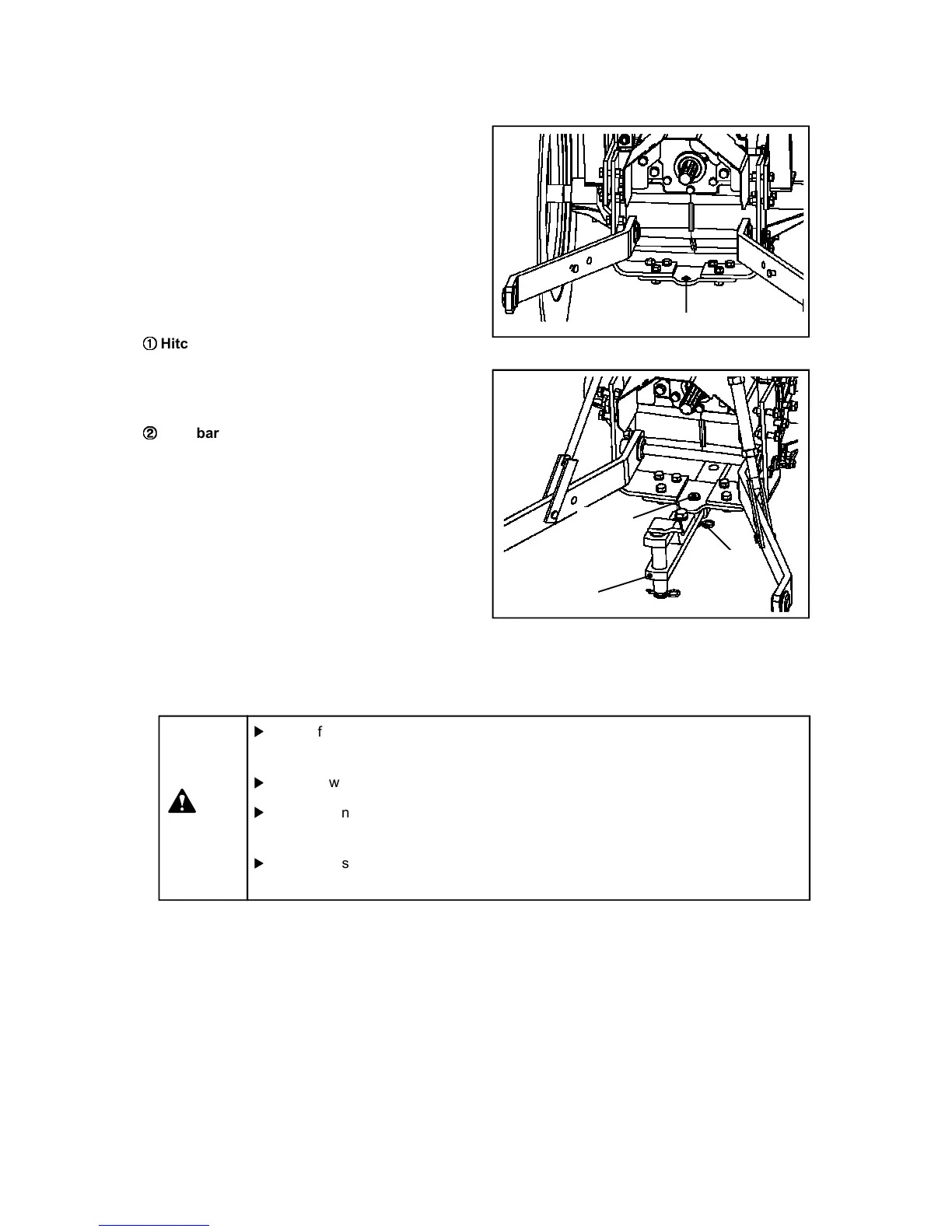

(8) Hitch and Drawbar (option)
When attaching towing equipments, use the
hitch or drawbar. DO NOT use the 3-point
linkage or other parts. If so, the tractor could
turnover.
When attaching towing equipments, do not
exceed the maximum permissible vertical and
horizontal loads.
Hitch
Snap pin
Lock pin
Drawbar
with clevis
4
4 4
4 - 13
Vertical load : 250kg (551lbs) – long position
400kg (882lbs) – short position
Horizontal load : 1600kg (3527lbs)
▶
Pulling from the tractor rear axle or any point above the axle may cause the tractor
to overturn. Use always the drawbar or hitch for pulling work.
▶
Do not tow equipment without brakes, weighing more than twice the tractor weight.
▶
When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶
Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
