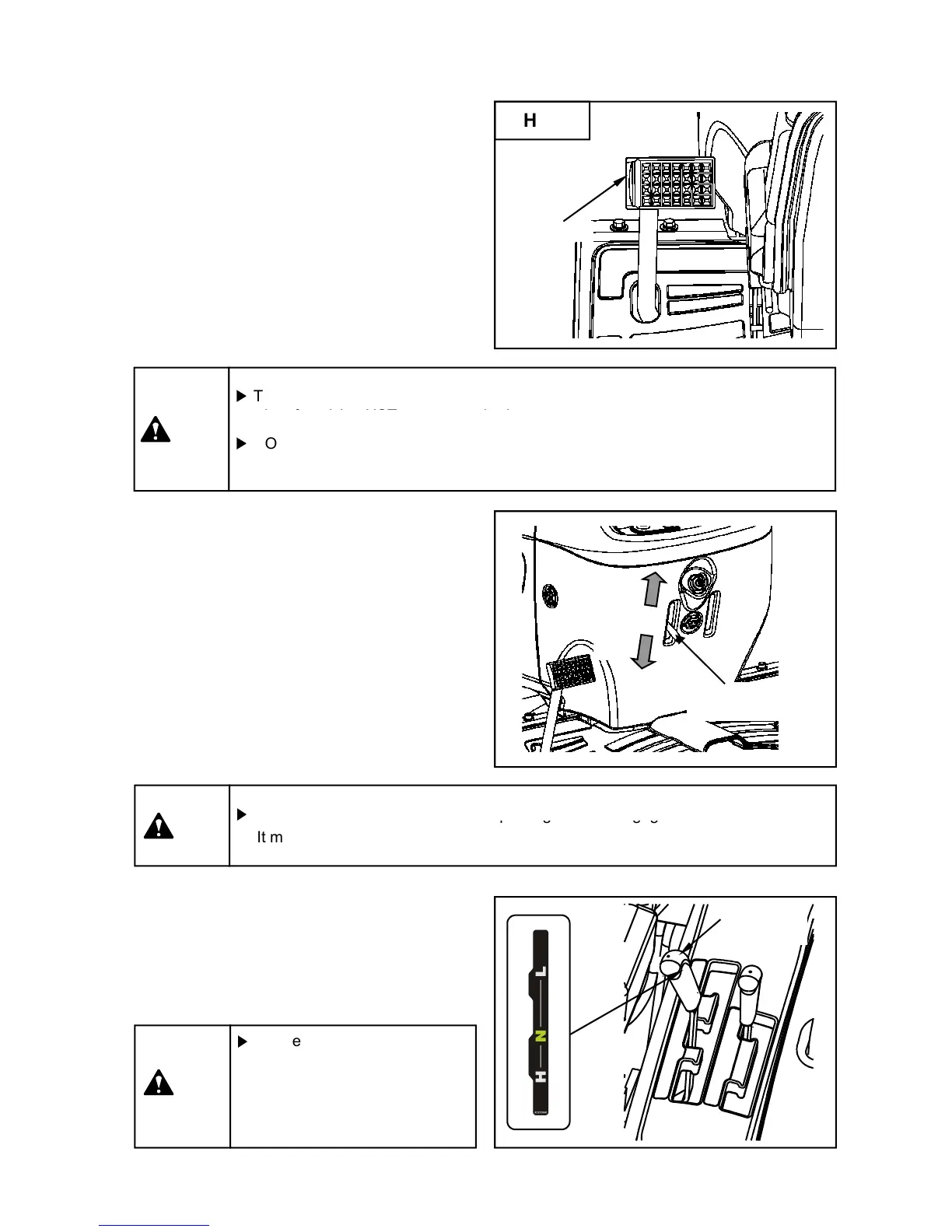

(2) Brake pedal
For mechanical type transmission, the clutch pedal
must be depressed with brake pedal to stop the
tractor completely.
If 4WD is disengaged, the brake force is only
applied on rear wheels.
Brake pedal is located as below.
(Mechanical Type : Right side,
HST Type : Left side)
▶
The brake pedal must be pressed to stop the tractor suddenly while driving fast, in
spite of applying HST emergency brake.
spite of applying HST emergency brake.
▶
DO NOT ride your foot on the brake pedal while driving the tractor.
If so, it may cause failure of brake device.
(3) Parking brake lever
Pull the parking brake lever to engage the parking
brake while pressing the brake pedal.
Release the brake pedal slowly to check slippage
of the tractor.
To release the parking brake, press the brake
pedal, and push the parking brake lever forward.
DO NOT drive the tractor while the parking brake is engaged.
Parking brake
lever
OFF
ON
3
3 3
3 - 8
Caution
DO NOT drive the tractor while the parking brake is engaged.
It may cause damage of brake or parking brake device.
(4) Range gear shift lever
Low speed, neutral and high speed is available.
▶
Range gear shift lever should
only be used after the tractor is
completely stopped. If not, it
may cause a failure of
transmission.
Caution
Range gear
shift lever
