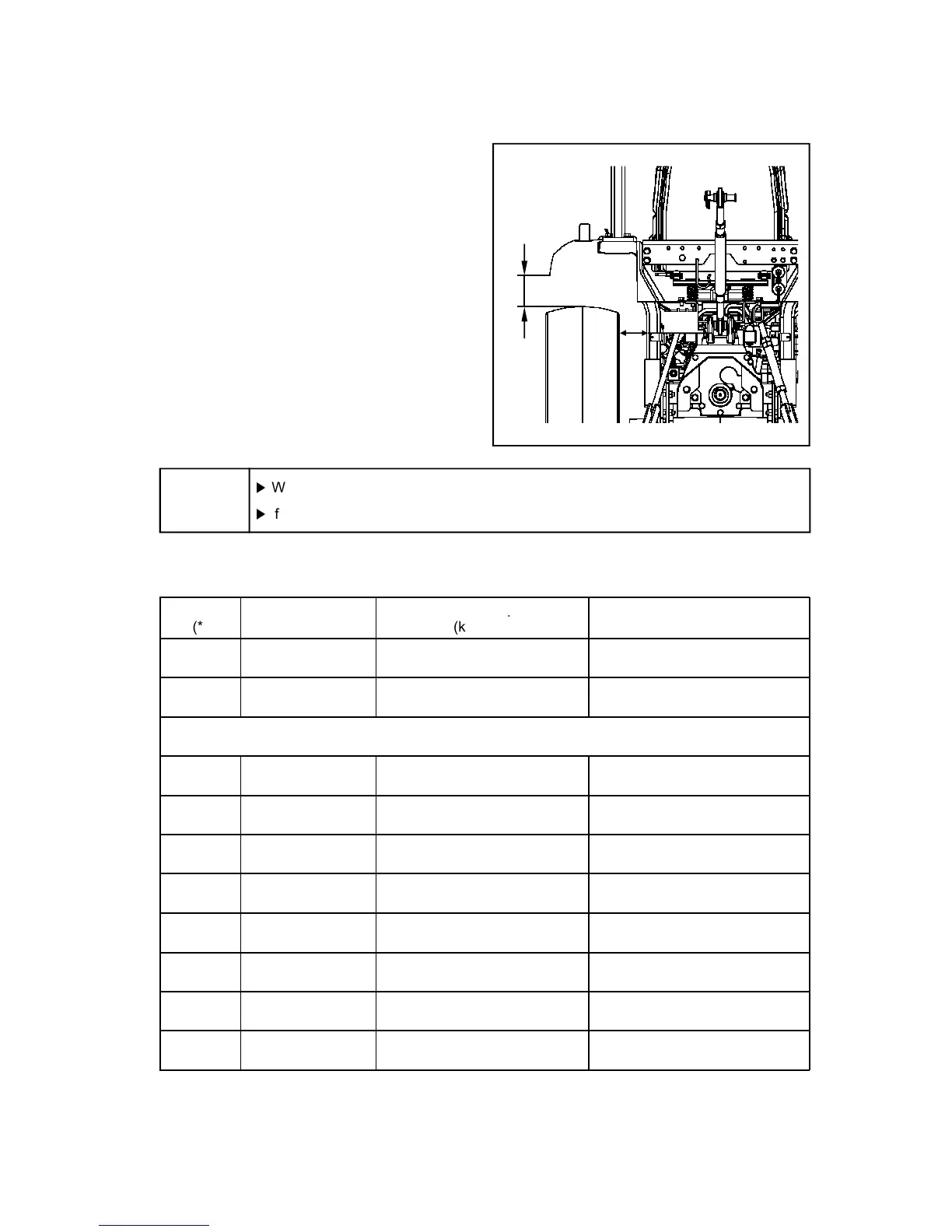

(11) Adjusting Wheel tracks and
tire replacement
When adjusting the wheel track, pay attention to the direction of tire lugs.
if it shows “/\” shape when looked behind, it is correct.
Notice
If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted as following page.
When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
“B”
“A
(12) Tires and Load capacity
Axle No.
Tires
Standard tire air pressure
Load capacity (x2) (kg)
4
4 4
4 - 16
(*) 1 : Front axle, 2 : Rear axle
Axle No.
(*)
Tires
Standard tire air pressure
(kg/cm2)
Load capacity (x2) (kg)
1 6.0-12 4PR 1.8 (180 KPa, 26 psi) 650 (1433 lb)
2 9.5-16 6PR 2.2 (216 KPa, 32 psi) 1262 (2782 lb)
Optional Tire
1 23x8.5-12 4PR 2.5 (245 KPa, 36 psi) 1334 (2941 lb)
2 12-16.5 6PR 2.8 (275 KPa, 41 psi) 3828 (8439 lb)
1 23x8.5-12 4PR 1.6 (157 KPa, 23 psi) 1012 (2231 lb)
2 33x12.5-16.5 4PR 2.1 (206 KPa, 31 psi) 2092 (4612 lb)
1 18x8.50-8 4PR 1.5 (147 KPa, 21 psi) 450 (992 lb)
2 26x12.0-12 4PR 1.4 (137 KPa, 20 psi) 640 (1411 lb)
1 6.0-12 4PR 1.8 (180 KPa, 26 psi) 325 (717 lb)
2 300/65 R18 2.5 (245 KPa, 36 psi) 1250 (2756 lb)
