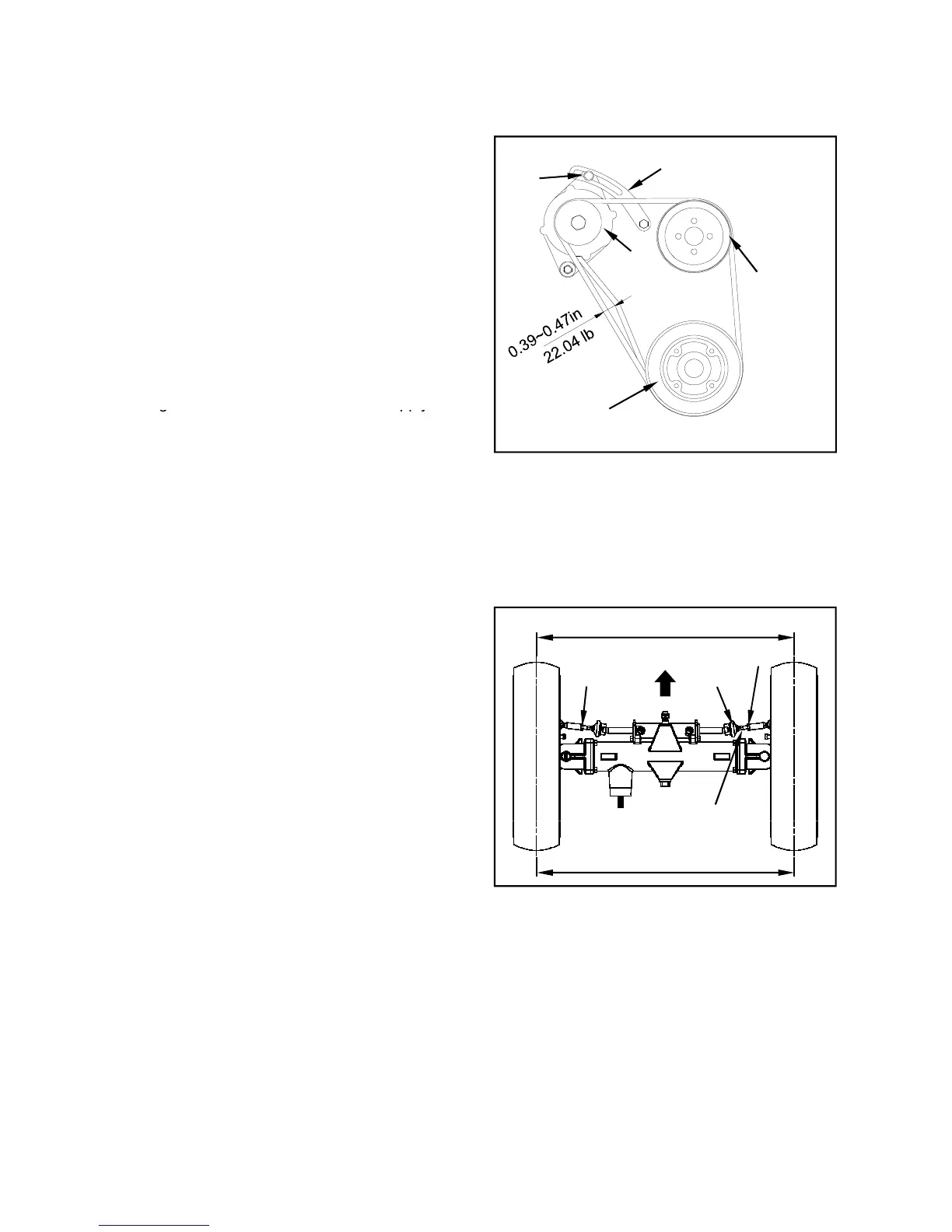

(5) Tension adjustment of Fan belt
Check the tension of fan belt. if it is not suitable to
standard value, loosen the tension bolt and adjust
the tension.
- Belt tension : Crank shaft pulley ~ Alternator
pulley
- Standard : Appx. 0.39~0.47 in (When pressed
by 98N (22.04 lb))
When adjusting the tension,
1. loosen two locking bolts of alternator and bolt of
adjusting plate slightly
2. Tighten or loose the tension bolt to apply the
Adjusting plate
Bolt
Cooling water
pump pulley
Crank shaft
Alternator
Pulley
2. Tighten or loose the tension bolt to apply the
standard tension to the belt.
3. Tighten the locking bolts of alternator and
adjusting plate.
pulley
(6) Toe-in
Check Toe-in of the front wheel and if needed,
adjust it as below.
Normal value : B – A = 0~3 mm (0~0.31 in.)
Loosen lock nut of the tie-rod (both side).
Fix steering cylinder and turn adjuster counter-
clockwise, the toe-in (“B-A”) shall be increased.
Turn adjuster of the other side to the same
A
Lock nut
Lock nut
FRONT
Tie rod
Adjuster
5
5 5
5 - 17
Turn adjuster of the other side to the same
displacement.
After adjusting Toe-in, tighten the lock-nuts.
If possible, Contact your authorized dealer.
B
