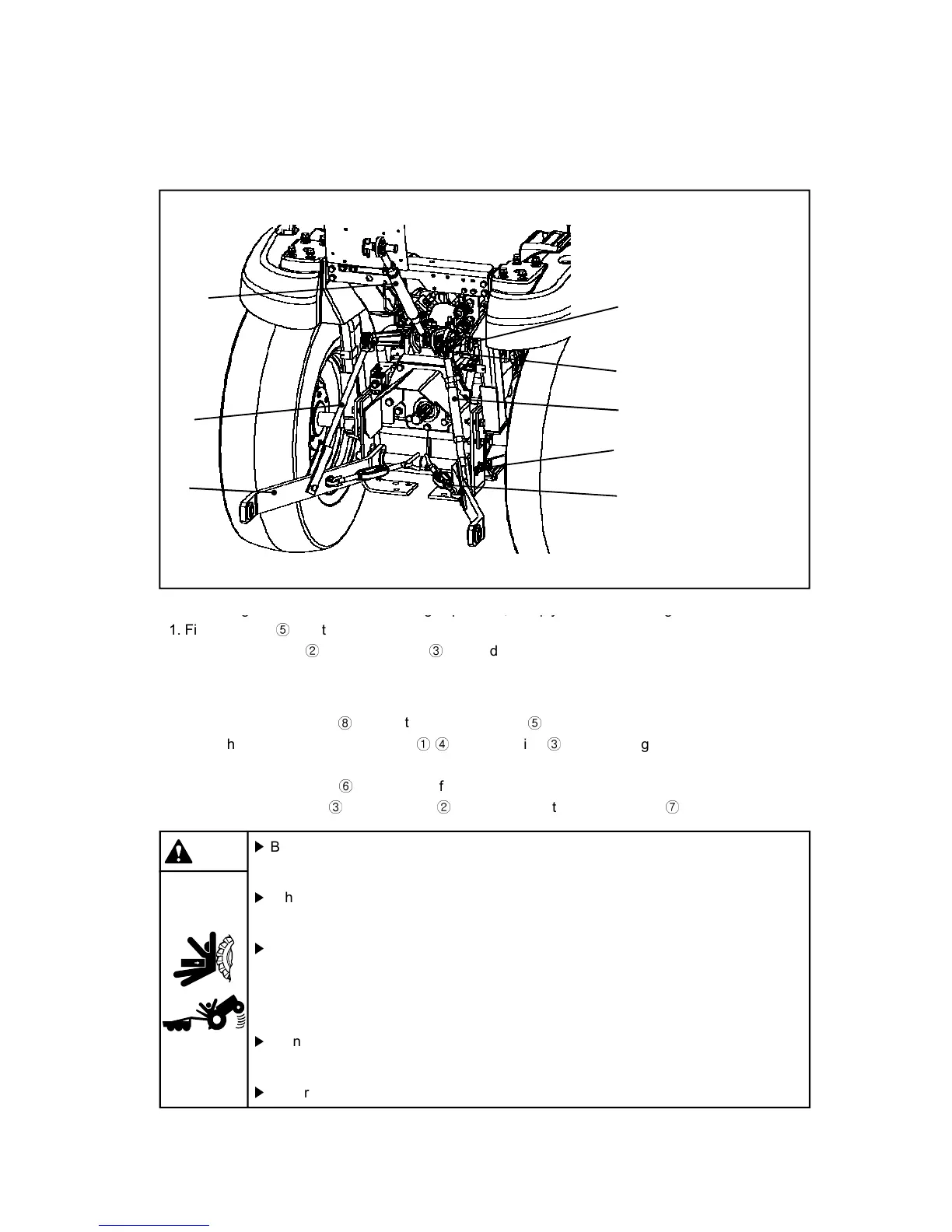

(1) 3-point linkage
4-4. Attaching Implement

When driving the tractor without attaching implement, comply with the followings.
①
①①
①
④
④④
④
③
③③
③
⑤
⑤⑤
⑤
②
②②
②
⑥
⑥⑥
⑥
⑦
⑦⑦
⑦
⑧
⑧⑧
⑧
① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Lower link pin
⑧ Upper link pin
4
4 4
4 - 9
Warning
▶ Before attaching/detaching the implement, place PTO switch in “OFF” and PTO
gear lever (if fitted) in “Neutral” position and apply parking brake lever.
▶ When attaching/detaching the implement, make sure to assemble and tighten the
connecting parts correctly.
▶ If the tractor is used to tow heavy loads, always use the approved drawbar or hitch
to avoid injury.
Never connect to lower link or upper link of 3-point linkage. If not, it may cause
tipping or turnover.
▶ Do not connect implements that require more power than can be generated by
your tractor.
▶ Never stand between implement and tractor when backing up.

When driving the tractor without attaching implement, comply with the followings.
1. Fix upper link ⑤ into the fixing hook.
2. Connect stabilizer ② to the lower link ③ to avoid lateral movement of the lower link.
 If 3-point linkage is not necessary, raise 3-point linkage to maximum height and fix it by turning the
down speed control knob or remove it as follow.
1. Remove upper link pin ⑧ , and detach the upper link ⑤ .
2. Detach fixing parts between lift rod ① , ④ and lower link ③ while holding lower link tightly.
And, put down the lower link.
3. Remove the lift rod pin ⑥ and detach lift rod (LH) and lift rod (RH).
4. Detach the lower link ③ and stabilizer ② after removing the lower link pin ⑦ .
