Chapter 2 System Configuration
2-6
Items Items Items
⑥

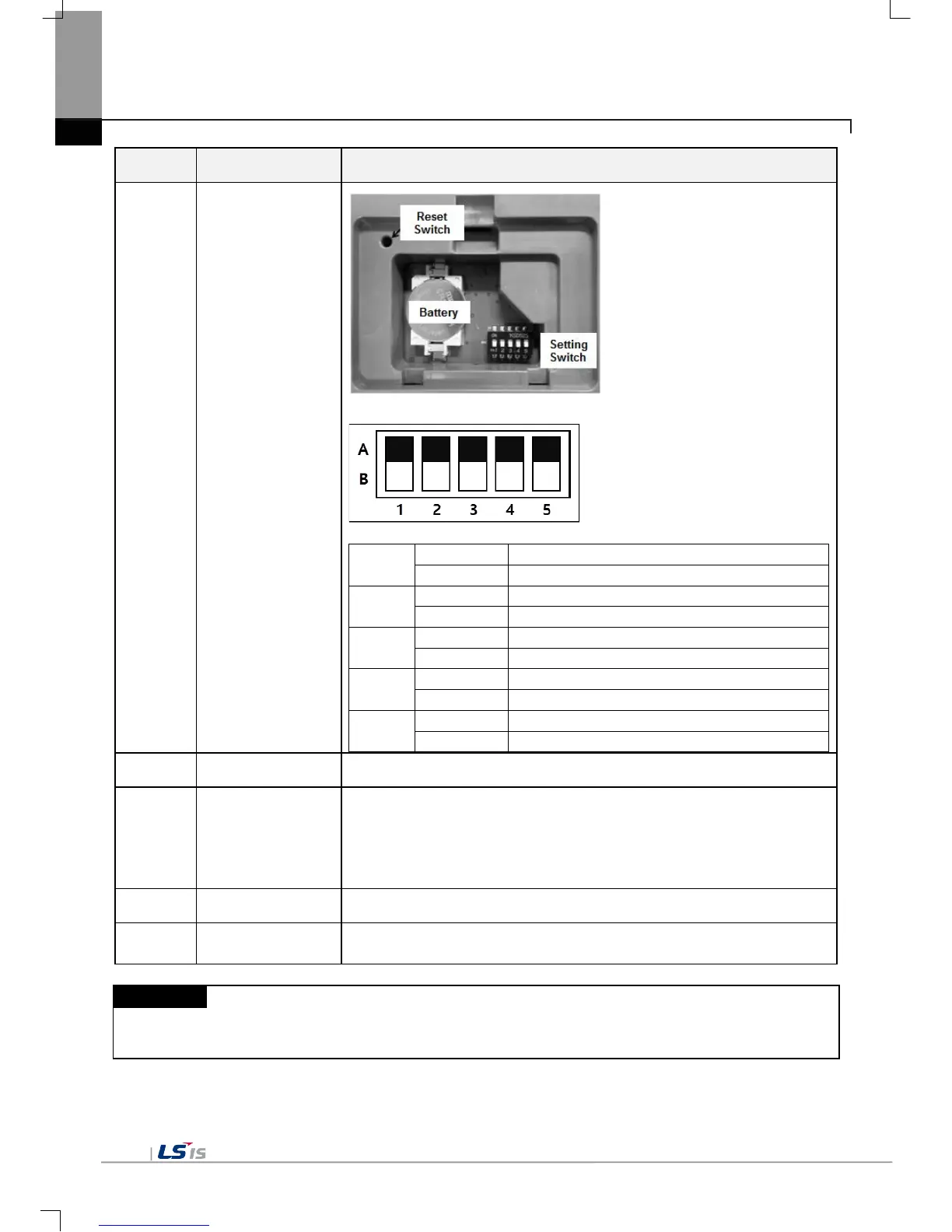

Battery Cover
<Setting Switch Configuration >
NO.1
A Side.
Backup Battery ON
B Side.
Backup Battery OFF
NO.2
A Side.
Do not use
B Side.
Do not use
NO.3
A Side.
COM1 RS-485 Terminating Resistance On
B Side.
COM1 RS-485 Terminating Resistance Off
NO.4
A Side.
COM3 RS-422 Terminating Resistance On
B Side.
COM3 RS-422 Terminating Resistance Off
NO.5
A Side.
O/S Download Mode
B Side.
Operating Mode
⑦
Power Terminal Composed of Power Input(DC24V) and FG Terminal
⑧
Ethernet Terminal
Ethernet: 10Base-T/ 100Base-TX
1) Send Project Data
2) Receive backup data and project file
3) Send XP-Runtime
4) PLC/Control Device Communication
⑨
COM3 Connector RS-422/485: PLC or Control Device Communication
⑩
COM1, COM2
Connector
RS-485, RS-232C: PLC or Control Device Communication
Remark
(1) For further details on connection of communication, please refer to Communication Instruction Manual.
(2) For further details on installation, please refer to the Chapter 10.
A. Reset Switch
B. Coin Battery
C. Setting Switch
