Chapter 10 Installation and Wiring

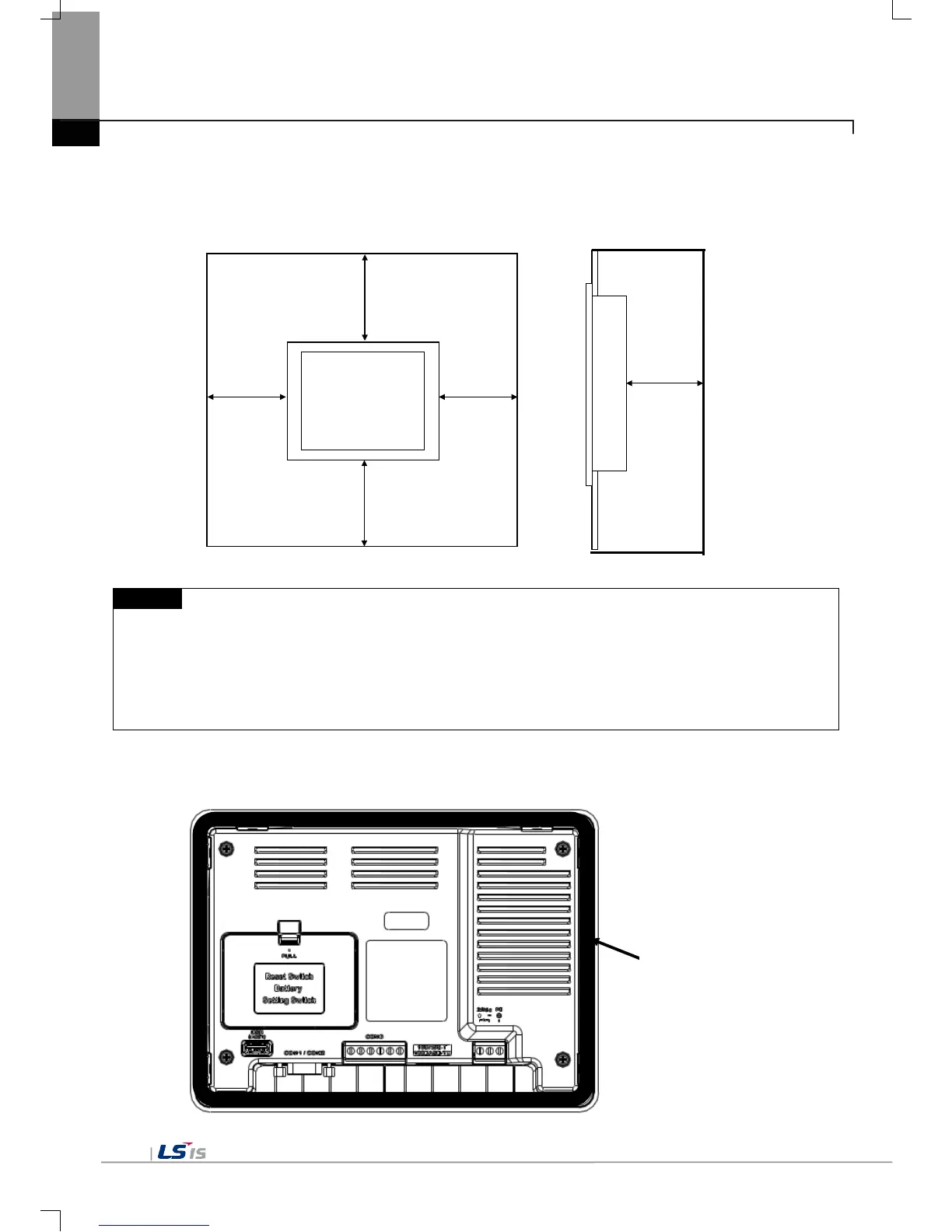

(2) XGT Panel installation
• Keep the distance of 100 mm between XGT Panel and panel per each direction.
(1) To be affected at a minimum by the electromagnetic waves (radial noise) or heat from other controllers,
it needs to keep its distance as the above explanation.
(2) When installing, consider the power and communication cable wiring.
(3) In case when the size of the panel cut exceeds the range of the standard allowance(0 ~ +1mm) when
producing panels, the contact area between Gasket and the panel can get small, which can weaken the
waterproof/dustproof effect.
• When mounting the XGT Panel inside a panel, ensure that you use the gasket to protect against dust or
water ingress.
100
100
100
100
100
Unit: [mm]
Waterproof/Dustproof
