Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
5.3.4 Average function
(1) Time average
It accumulates temperature conversion values of a selected channel and displays the average
of the total sum in digital data.
Setting range of average time = 400 ~ 64000 [ms]
Frequency of average process for a preset time can be calculated as follows.
ms
ms
50 ×
=
used channel of No.
time Average
[times]Frequency Process Average
(2) Averaged frequency
It accumulates temperature conversion values of a selected channel as many as frequency and
displays the average of the total sum in digital data.
Setting range of average frequency = 2 ~ 64000 [times]
Average process interval of channel used can be calculated as follows
][50][ msms ××= used channel or No.frequency Averageinterval process Average

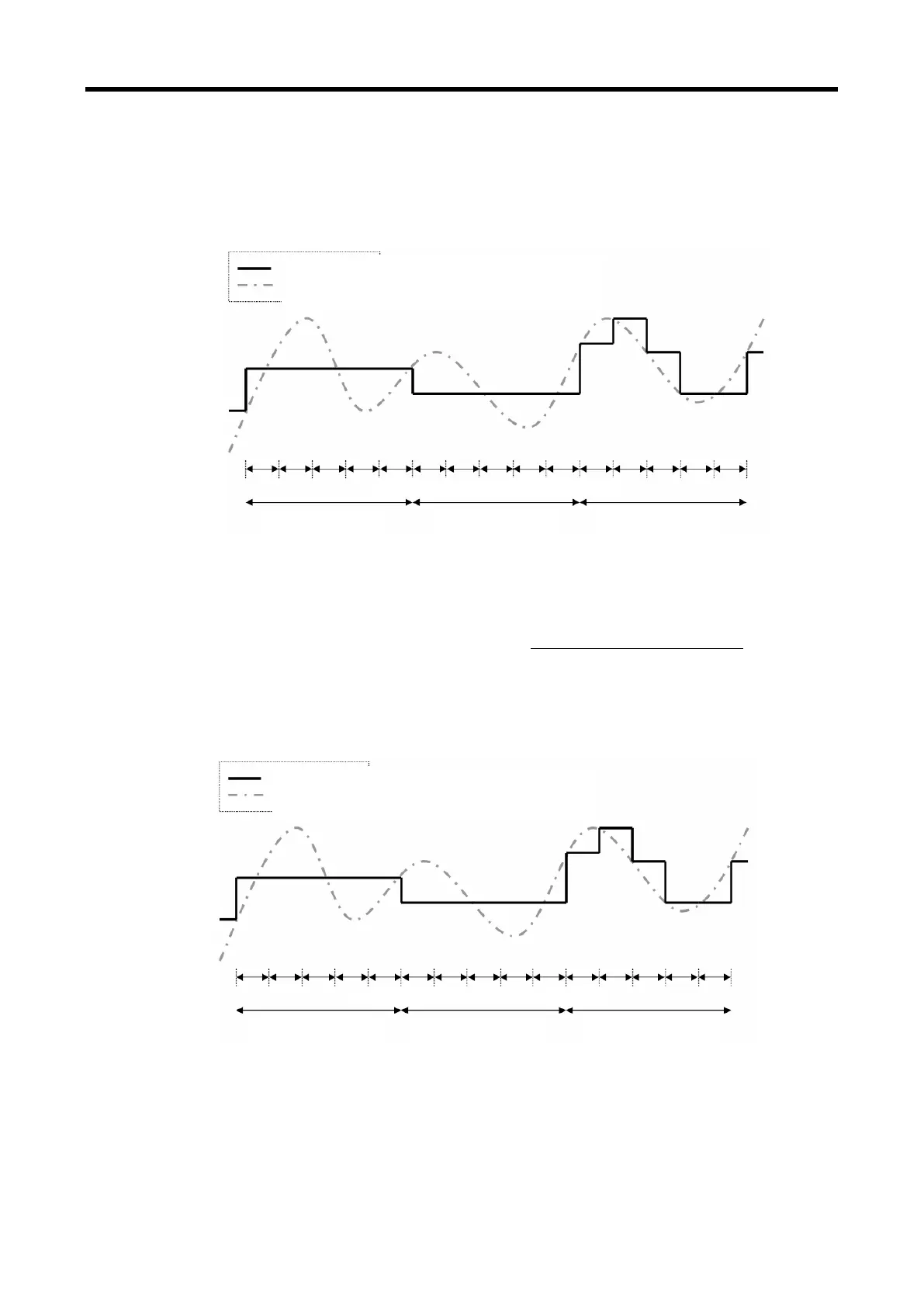

Temperature change after averaging process
Actual temperature change
Channel scan interval
Averaging section
Averaging section
Averaging section
Temperature change after averaging process
Actual temperature change
Averaging section
Averaging section
Averaging section
Channel scan interval
